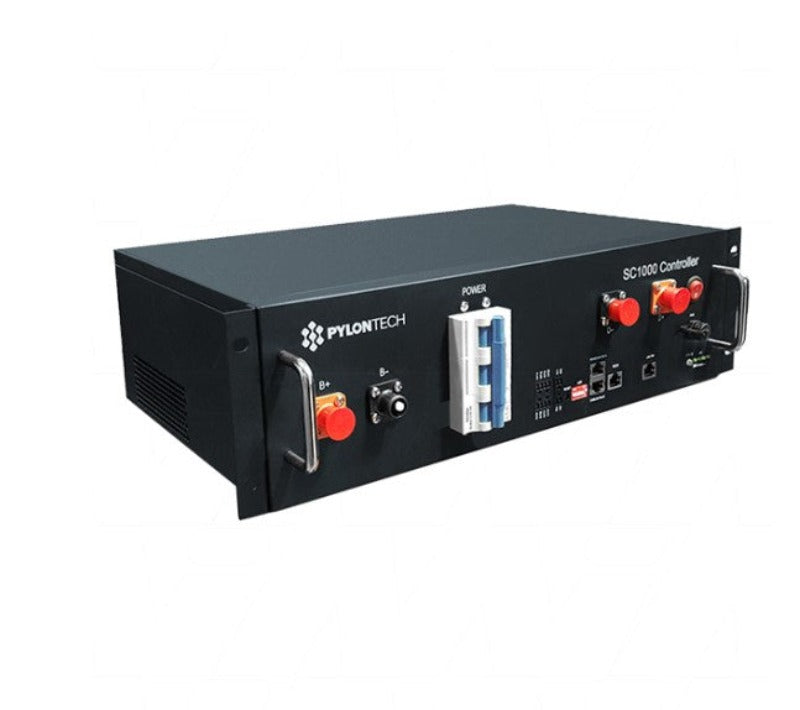

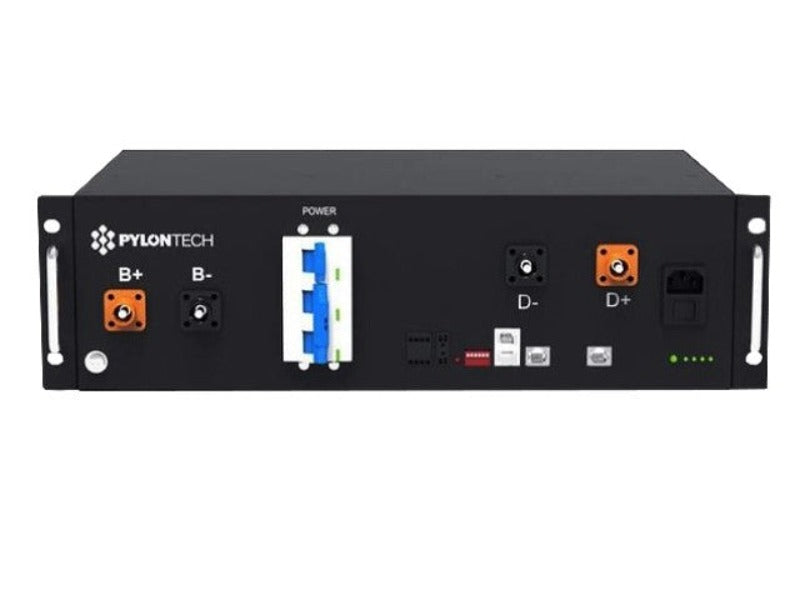

Pylontech Powercube BMS Controller For 5 - 15 High Voltage Battery Modules (SC1000-100S)


Price:
Sale price$1,710.00

Description

Pylontech SC1000-100S BMS Controller for use with the PowerCube H1/H2 High Voltage series.

*Please note this is a component of the PowerCube H1/H2 range of ESS Modules.

PowerCube-H1/H2 range is a high voltage battery storage system, based on lithium iron phosphate battery, is one of the new energy storage products and produces by Pylontech. It can be used to provide reliable power for various types of equipment and systems. PowerCube-H1/H2 range is especially suitable for applications requiring high power & long cycle life, where limited installation space is available.

PowerCube-H1/H2 range has 3 levels BMS (battery management system), which can manage and monitor cell information including voltage, current and temperature. What's more, BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power.

FEATURES

  • Vertical industry integration chain
  • Modular Design with different density for all applications
  • Flexible Voltage range from 100Vdc to 1000Vdc
  • 3 Levels of battery management to provide the ultimate reliability and control when paired with a SC0500-100S (X1) or SC1000-100S (H1) & a MBMS (for Paralleled systems)
  • Rack Mounted or Container based systems available
  • Safety Cert. CE, TuV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3
  • Clean Energy Council Approved models available (CEC)

SPECIFICATIONS

Working Volatage (Vdc) 200-1000
Operating Voltage (Vdc) 200-1000
Max. Charge Current (A) 100
Discharge Voltage(Vdc) 200-1000
Discharge Current (Max.) 100 A
Self-Consumption Power (W) 8
Weight (kg) 8.2
Dimension(W*D*H, mm) 442*390*132
Communication RS485/CAN
Protection Class IP20
Operation Life 15 years
Operation Temperature -20~65°C
Storage Temperature -40~80°C
Product Certificate TÜV(IEC62619)
