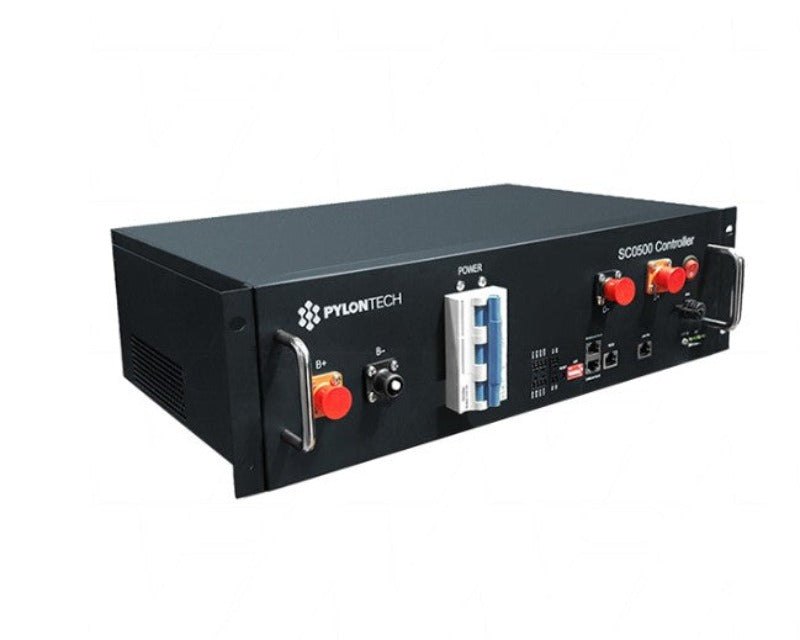

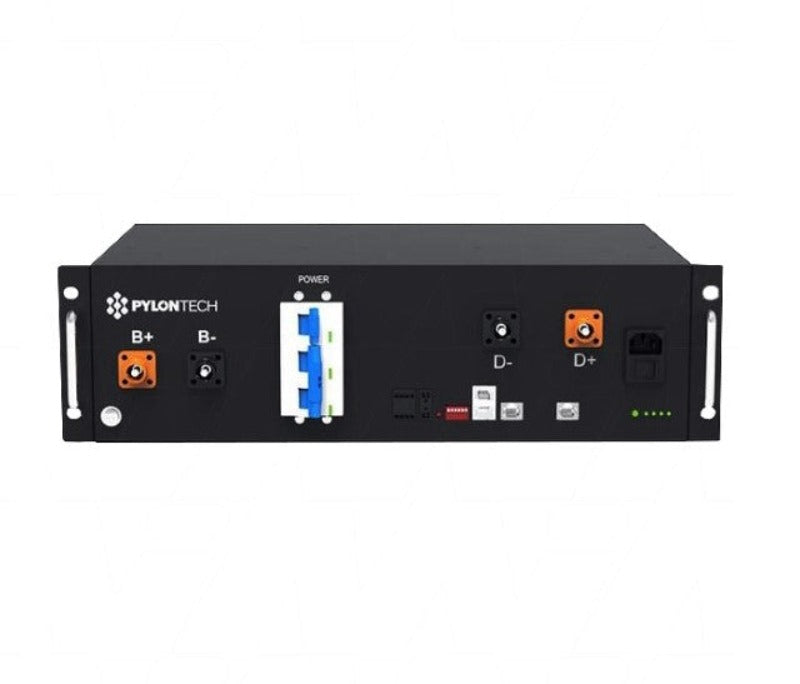

Pylontech Powercube BMS Controller For 3 - 7 High Voltage Battery Modules (SC0500-100S)


Price:
Sale price$1,619.00

Description

Pylontech SC0500-100S BMS Controller for use with the PowerCube High Voltage series.

*Please note this is a component of the PowerCube X1 & H1 range of ESS Modules.

PowerCube-X1 is a high voltage battery storage system, based on lithium iron phosphate battery, is one of the new energy storage products and produces by Pylontech. It can be used to provide reliable power for various types of equipment and systems. PowerCube-X1 is especially suitable for applications requiring high power & long cycle life, where limited installation space is available.

PowerCube-X1 has 2 levels BMS (battery management system), which can manage and monitor cell information including voltage, current and temperature. What's more, BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power supporting durations requirements.

FEATURES

  • Vertical industry integration chain
  • Modular Design with different density for all applications
  • Flexible Voltage range from 100Vdc to 1000Vdc
  • 3 Levels of battery management to provide the ultimate reliability and control when paired with a SC0500-100S (X1) or SC1000-100S (H1) & a MBMS (for Paralleled systems)
  • Rack Mounted or Container based systems available
  • Safety Cert. CE, TuV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3
  • Clean Energy Council Approved models available (CEC)

SPECIFICATIONS

Controller Working Voltage 100~435Vdc
System Operation Voltage 100~435Vdc
Charge Current (Max.)(A) 100 A
Discharge Voltage(Vdc) 100~435Vdc
Discharge Current (Max.) 100 A
Self-Consumption Power (W) 8
Weight (kg) 8.2
Dimension(W*D*H, mm) 442*390*132
Communication RS485/CAN
Protection Class IP20
Operation Life 15 years
Operation Temperature -20~65°C
Storage Temperature -40~80°C
Product Certificate TÜV(IEC62619)
