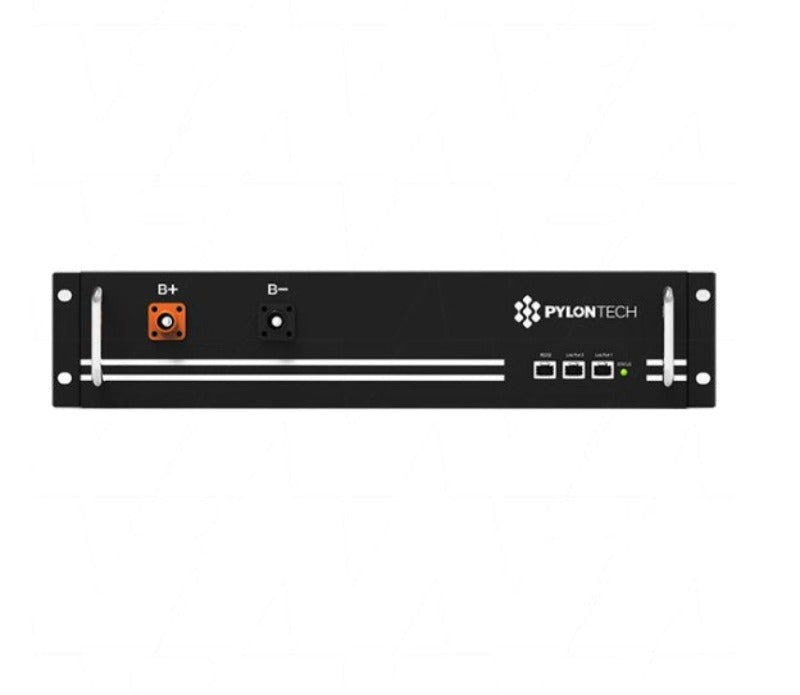

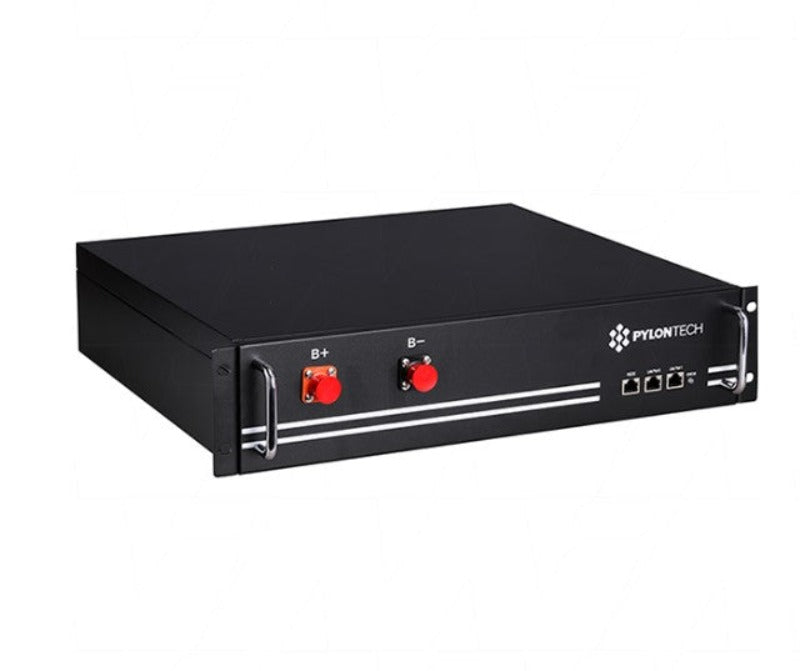

Pylontech Powercube 50Ah 48V 2.4kWh High Voltage Lithium Battery Module (H48050)


Price:
Sale price$2,119.00

Description

Pylontech H48050 48V 50Ah 2.4kWh HV Battery Module for use with the PowerCube High Voltage series.

*Please note this is a component of the PowerCube X1 & H1 range of ESS Modules and must be used with either the SC0500-100S (PowerCube X1) or SC1000-100S (PowerCube H1) BMS controllers

Powercube series products with its modular design concept, enables the highest flexibility both for rack mounted and container based constructions, giving the flexibilities for customers to deploy the system nearly in any nodes in the grid, supporting the services such as emergency power, new energy stabilizer, energy shifting, load shaving, grid stabilizer, frequency responding (under de­velopment).

With Pylontech's deep experience in BESS (battery energy storage systems), vertical industrial chain consolidation and fantastic ROI control, Pylontech Powercube will be your trustable system in all ESS applications.

FEATURES

  • Vertical industry integration chain
  • Modular Design with different density for all applications
  • Flexible Voltage range from 100Vdc to 1000Vdc
  • 3 Levels of battery management to provide the ultimate reliability and control when paired with a SC0500-100S (X1) or SC1000-100S (H1) & a MBMS (for Paralleled systems)
  • Rack Mounted or Container based systems available
  • Safety Cert. CE, TuV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3
  • Clean Energy Council Approved models available (CEC)

SPECIFICATIONS

Chemistry LiFePO4
Module Voltage (Vdc) 48
Module Capacity (kWh) 2.4
Module Capacity (Ah) 50
Voltage Range (Vdc) 45 - 54
Depth of Discharge (%) 80% (10-90%)
Dimensions (LxWxH - mm) 442 x 390 x 100
Weight (kg) 24
Communication RS485 / CAN
Protection Class IP20
Operation Life 10+ Years
Operation Temperature 0~50C
Storage Temperature -20~60C
Product Certificate TÜV, CE
Transfer Certificate UN38.3



NOTE:

* Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
