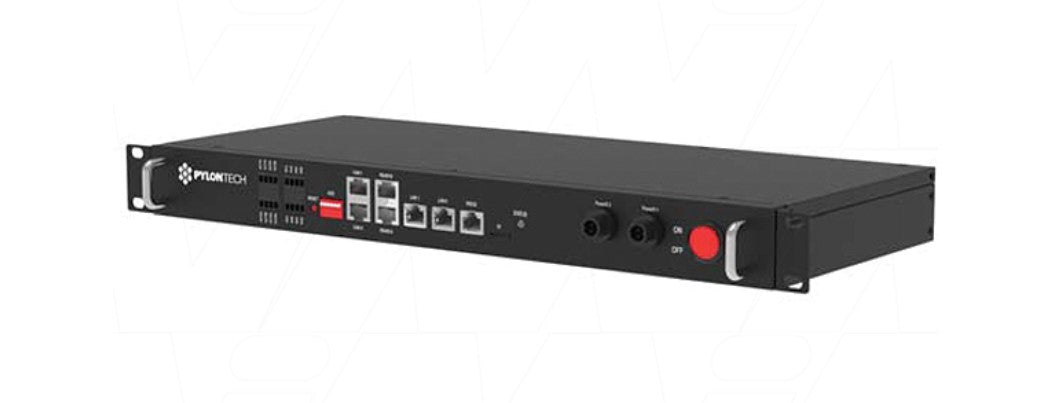

Pylontech Master BMS Controller Hub For Multiple Battery Parallel Connection (MBMS)


Price:
Sale price$1,378.00

Description

MBMS is the controller for multiple battery piles in parallel connection.

If the power supply is 220Vac, an adaptor (220Vac to 12Vdc) will be provided

Suitable for use with the PowerCube X1, X2, H1 and H2 ESS ranges.

The MBMS allows for parallel connect of up to 6 individual systems.

SPECIFICATIONS

Operating Voltage (Vdc) 12VDC

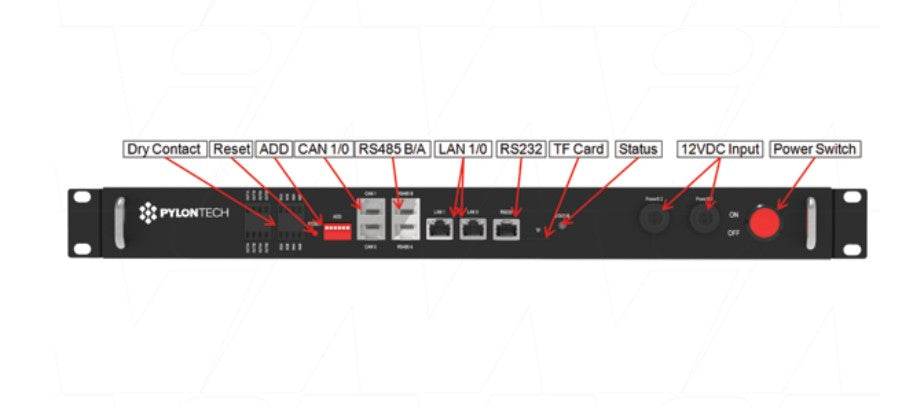

Communication Ports RS485 x 2
CAN x 2
Ethernet x 2
Output dry contact interface 4 Groups
Input dry contact interface 2 Groups
System Consumption 2W
Dimension (LXWXH - mm) 442 x 190 x 44
Weight (kg) 5
Protection Class IP20
Operation Temperature -40~80°C
Storage Temperature -40~80°C
