LV-HUB is for 48V battery system Parallel connection Multi Battery Piles RS485/CAN Communication Cable Connection Each Communication HUB connects maximum 5 battery piles

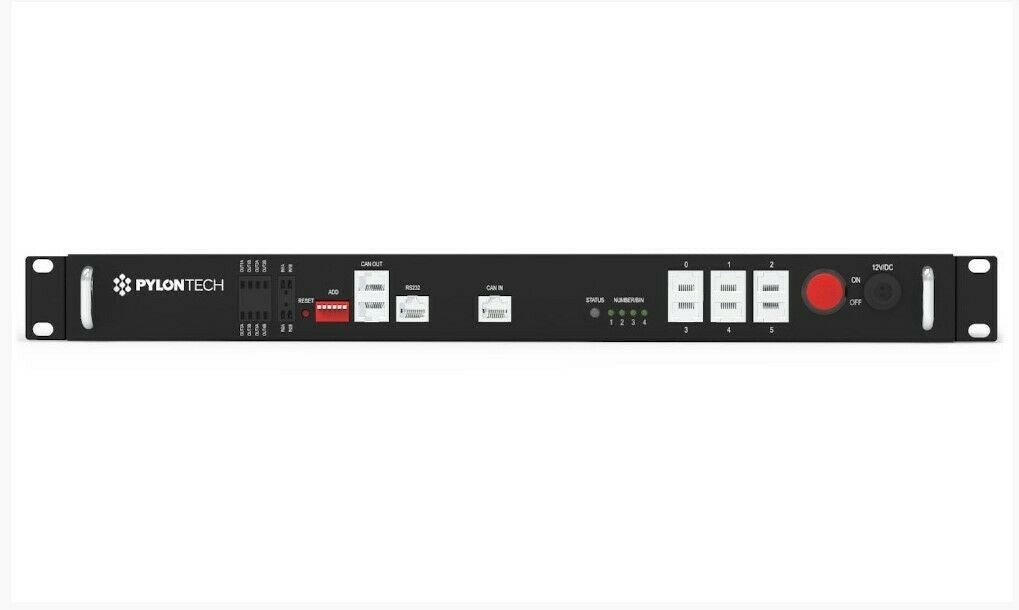

The Pylontech LV-Hub is a communication hub for US2000B Plus / US3000 Lithium-Ion Phosphate Battery storage system. LV-Hub is the CAN/RS485 communication hub for multiple 48V battery groups in parallel connection.
Each battery group can configure a maximum of 8x US2000B Plus or 8x US3000 with a maximum of 5 groups of batteries.
Operating Voltage Range 12VDC
Communication Interface CAN/RS485
System Power Consumption 2W
Size 442 x 150 x 44mm
Ingress Protection Rating IP20
Operation Life 15 Years
Working Temperature -20 ~ 60℃
Storage Temperature -40 ~ 80℃
CAN (Max 5 groups) Baud rate: 500; Terminal Resistance: 0/120Ω
RS485 (Max 5 groups) Baud rate:9600/115200
