Pylontech Force L1 Home Storage ESS 48V 74Ah 3.55kWh Battery Module/Cartridge (FL48074)


Price:
Sale price$3,183.00

Description

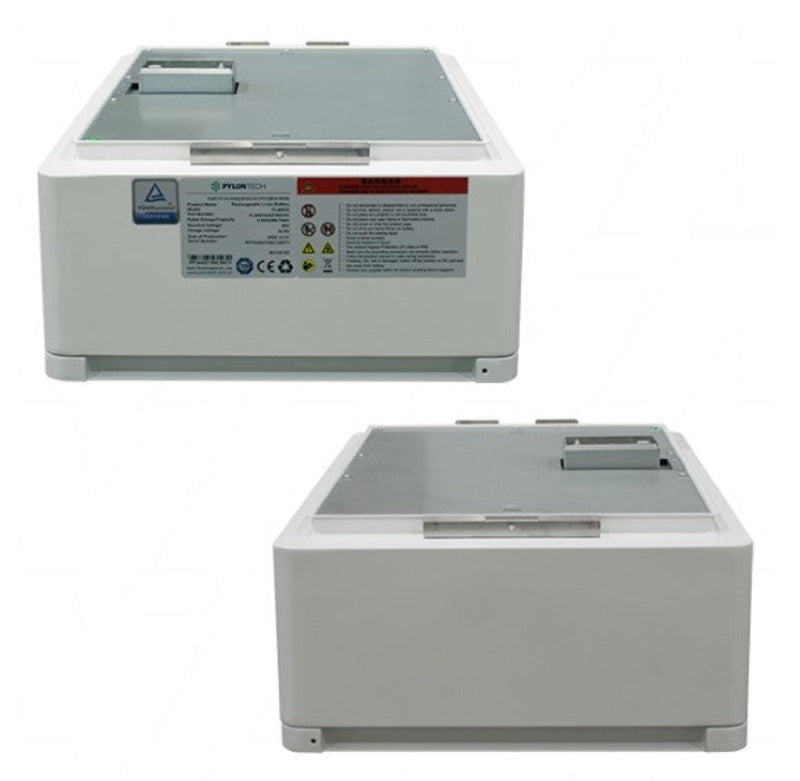

The Force-L1 & L2 are a 48V DC modular stackable Energy storage system based on the lithium iron phosphate battery technologies. Its attractive Furniture type design and IP55 Rating makes it ideally suited for installing as a home energy storage system.

The Force L1 & L2 battery systems is designed to be installed without the aid of the inter connection battery cables, significantly reducing the installation time. The basic module is 3.55 kWh cassette, with a 90% DOD, and is available in two shapes, the L1 wider and lower or L2 narrower and higher, to meet all space requirements.

FEATURES

Modular design from 7.1kWh to 24.86kWh enables quick and secure installation, & maintenance with no exposed wiring or connectors
Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C) with excellent discharge performance & cycle life
The solar battery is suitable for indoor and outdoor (IP55) installation
Cathode material is made from LiFePO4 for safety performance and long cycle life
The BMS has protection functions including over discharge, over charge, over current and high/low temperature
Compatible with many available Hybrid inverters
Safety Cert. CE,TuV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3
Clean Energy Council Approved (CEC)

SPECIFICATIONS

Selling Unit EACH
Description Force L1 Home Storage ESS 48V 74Ah 3.55kWh Battery Module/Cartridge
Application Home & SME Solar Storage
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 48V
Nominal Capacity 74Ah
Watt Hour 3552.0Wh
Size 3.55kWh
Width 380mm
Height 170mm
Length/Breadth/Depth 600mm
