Description

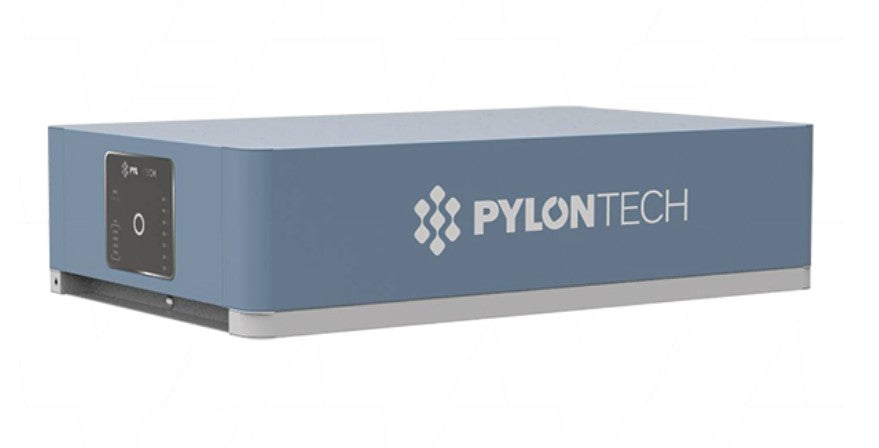

Pylontech Force H1 BMS Controller for use in the ForceH1 High Voltage ESS.
*Please note this is a component of the Force H1 range of ESS Modules and must be used with the FH48074 Battery Module/Cassette.
BMS comes supplied with UP/US Cable Kit.
The Force-H1 & H2 are a high voltage modular stackable energy system based on lithium iron phosphate battery technology. Its attractive furniture type design and IP55 Rating makes it ideally suited for installing as a home energy storage system.
The Force H1 & H2 battery systems are designed to be installed without the aid of the inter connection battery cables, significantly reducing the installation time. The basic module is 3.55 kWh cassette, with a 90% DOD, and is available in two shapes, the H1 wider and lower or H2 narrower and higher, to meet all space requirements.
FEATURES
- Modular design from 10.65kWh to 24.86kWh enables quick and secure installation, & maintenance with no exposed wiring or connectors
- Cycle life: >5000 cycles @ 25°C with 90% DoD for daily cyclic applications
- Working Temperature Range 0°C to 50°C with excellent discharge performance & cycle life
- Storage temperature range -20~60°C
- Suitable for indoor and covered outdoor (IP55) installation
- Cathode material is made from LiFePO4 for safety performance and long cycle life
- The BMS has protection functions including over discharge, over charge, over current and high/low temperature
- Compatible with many available Hybrid inverters
- Safety Cert. VDE2510-50, IEC62619, UL1973, IEC62477-1, IEC62040-1, CEC, CE
- Clean Energy Council Approved (CEC)
SPECIFICATIONS
| Model | FC0500-40S |
| Selling Unit | Each |
| Application | Home & SME Solar Storage |
| Chemistry | Lothium Iron Phosphate (LiFePO4) |
| Brand | Pylontech |
| Width | 38cm |
| Height | 19cm |
| Length/Breath/Depth | 60cm |
