Description

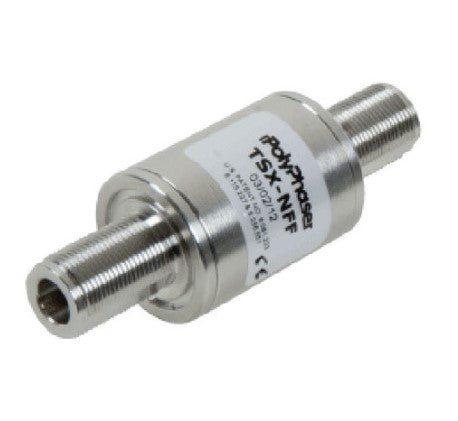

Polyphaser's SX series of surge arrestors use a patented spiral inductor design. The almost instantaneous response to a lightning surge minimizes energy let-through and protects critical wireless equipment. Models available with ultra-low PIM and DC Pass (AISG) capability, used in 4G and 5G applications.
FEATURES
- Frequency Ranges from DC to 11GHz
- 4.3-10, 7/16" DIN, N-Type, TNC, and SMA
- Available with low PIM
- Repeatable RF performance after surge
- Weatherproof when installed
SPECIFICATIONS
| Mount Type | Bulkhead and Flange |
| Maximum Power | 500W |
| Surge Side Connector | N Female |
| Protected Side Connector | N Female |
| RF Power | 750W |
| Nominal Insertion Loss | 0.1 dB |
| Maximum Throughput Energy | 5 nJ |
| Frequency range | 698-2700 MHz |
| Weight | 1 lbs |
