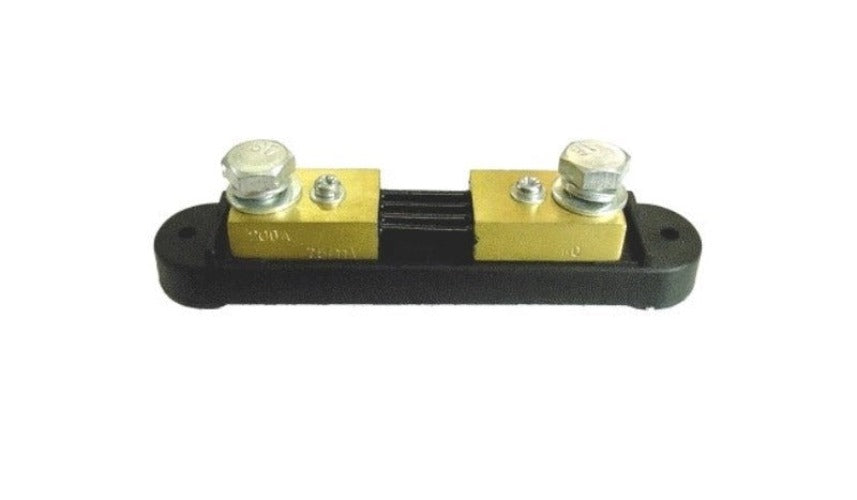

Plasmatronics PL Series Solar Controller Current Shunt 75mV 200A SH200


Price:
Sale price$108.00

Description

Plasmatronics SH200 Current shunt 75mV/200A (For use with M10 cable lug). Senses current flow in a cable, and feeds data back to a Plasmatronics PL charge controller unit, (PL20, PL40, PL60, PL80) via the PLS2.

FEATURES

Up to two external shunts can be added to PL20/40/60 Solar Charge Controllers to allow them it to measure larger currents than it is capable of measuring directly. The SH200shunt adapter measures the current in a shunt, converts it to digital information and sends that information back to the PL. The connection to the shunt is DC isolated from the PL so the shunt can be placed in any part of the circuit. Currents up to 250A can be measured.

Note: Used with PLS2 Shunt Adapter and PL series controllers, or DSA and Dingo controllers.

Voltage: 75mV dc
Current Capacity: 250A
For use with M10 cable lug.
Standby Current 7mA
Dimensions: Approx ~ 75 x 25 x 30mm
Weight: 0.6kg
Model: SH200
Suits PL20 / PL40 / PL60 Charge Controllers, D2020, D4040 and D8040 Controllers.

SPECIFICATIONS

Weight 0.6 kg
Dimensions 10 × 3 × 3.5 cm
Brand

Plasmatronics

SKU

SH200
