Description
FEATURES

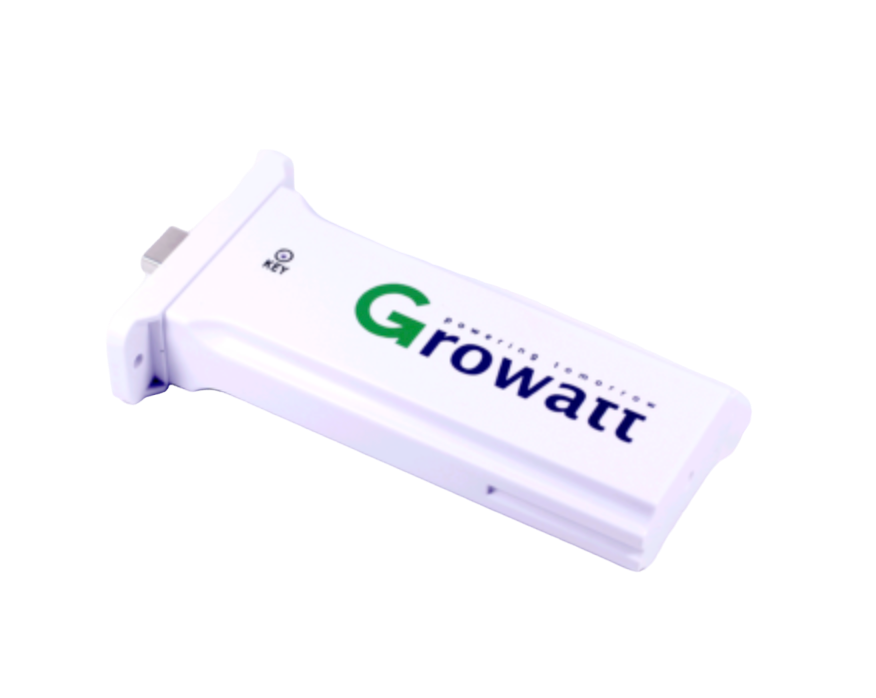

Growatt WiFi-F
Wifi-F is a plug-and-play monitoring device to help monitor the status of the PV system, this device is installed on inverter or controller for uploading and receiving datas from the server.
SPECIFICATIONS
| Model | ShineWiFi-F |
| General Data | |
| Dimensions(Length/Width/Height) | 135/79/29 |
| Weight | 63g |
| Manual language | English, Chinese |
| Wireless Parameters | |
| Wireless type | WiFi |
| Wireless standard | 802.11 b/g/n |
| Transmit power | 802.11b: +20dBm(Max.); 802.11g: +18dBm(Max.); 802.11n: +15dBm(Max.) |
| Receiver sensitivity | 802.11b: -89dBm(Max.); 802.11g: -81dBm(Max.); 802.11n: -71dBm(Max.) |
| Hardware Parameters | |
| Data Interface | UART: 9600bps; Ethernet: 100Mbps |
| Operating Voltage | 5V (+/-15%) |
| Operating Current | 1A |
| Operating Temperature | -20°C~+65°C |
| Storage Temperature | -40°C~+70°C |
| Network Type | AP (Acess Point); station mode (with soft AP) |
| Security Mechanisms | WEP / WPA-PSK / WPA2-PSK |
| Encryption | WEP64 / WEP128 / TKIP / AES |
| Application on Parameters | |
| Supported servers | ShineServer |
| Inverter communication | USB A-type |
| Sever Communication | WiFi via router (Modbus TCP protocol) |
| Supported Routers | Wireless router (Include 3G router) |
| User Configuration Interface | Wireless web server (Internet Browser) |
| Max. Communication Range | 100m |
| Data Transfer Interval | 5 minutes |
| Default Server URL | server-cn.growatt.com |
