Description
FEATURES

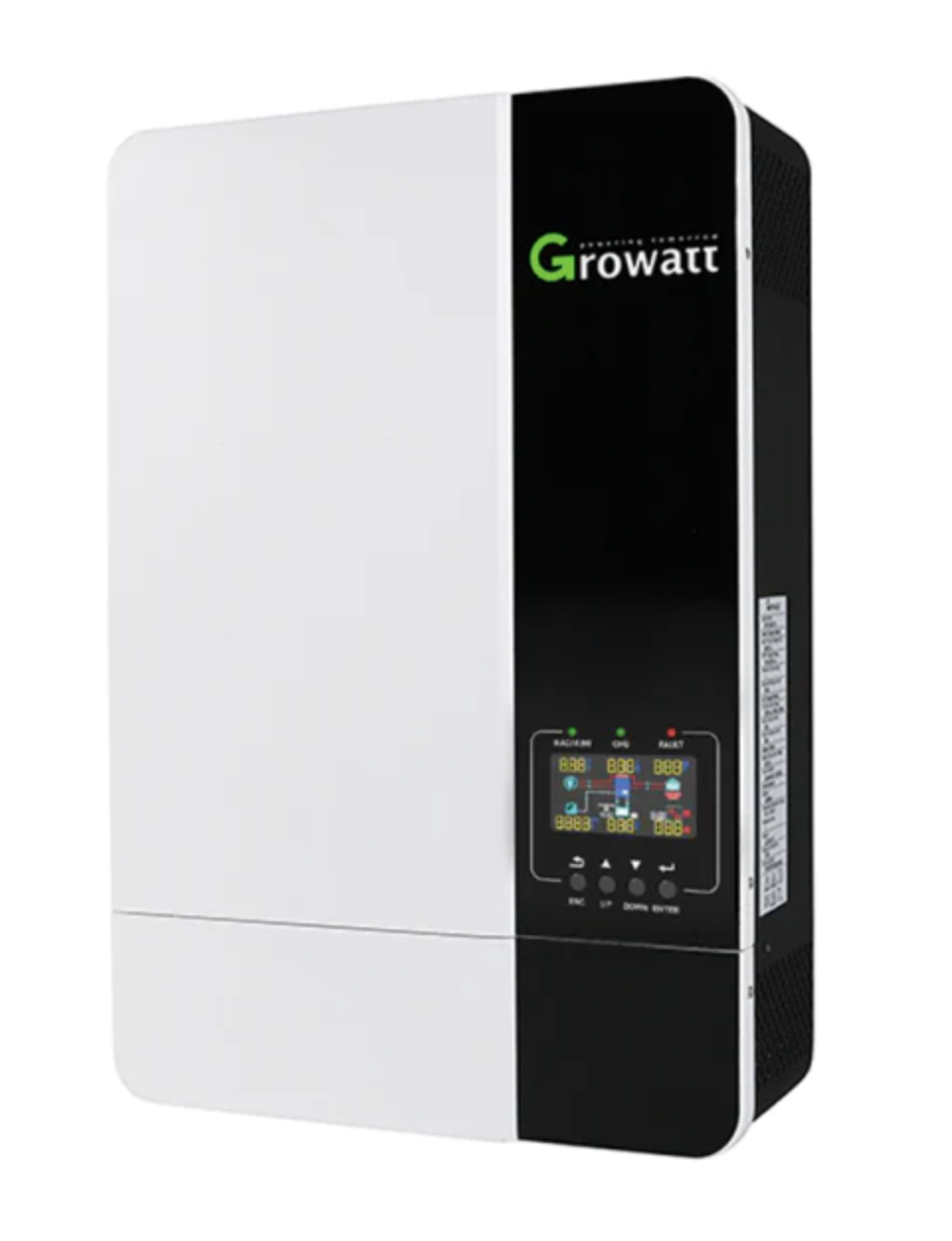

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.
The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
SPECIFICATIONS
| Model | Growatt SPF 5000 ES |
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Rated Power | 5000VA/5000W |
| Parallel Capability | Yes, 6 units maximum |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 10000VA |
| Efficiency | 93% |
| Waveform | Pure sine wave |
| Maximum PV Array Power | 6000W |
| MPPT Range @ Operating Voltage | 120VDC ~ 430VDC |
| Number of Independent MPP Trackers/Strings Per MPP Tracker | 1/1 |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Solar Charge Current | 100A |
| AC Charge Current | 80A |
| AC Input Voltage | 230 VAC |
| Dimensions | 330x485x135mm | 12kg |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
