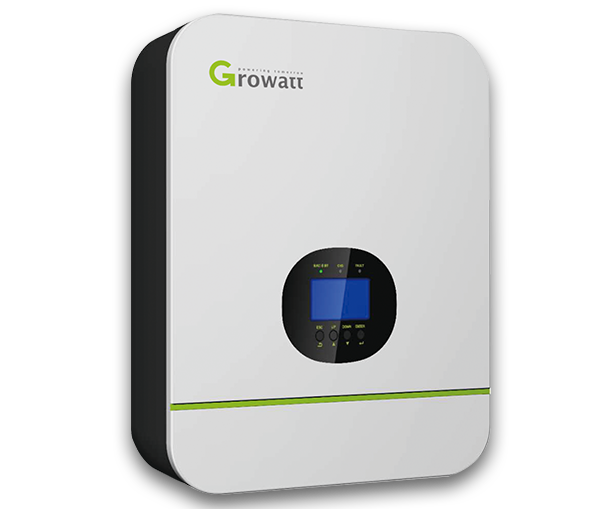

Growatt SPF 3000TL HVM-24 PV Off Grid Solar Inverter Support 24V Battery MPPT


Price:
Sale price$1,040.00

Description

FEATURES

The Growatt SPF 3000TL HVM-24 is an off grid inverter. It is suitable for a maximum circuit voltage of 102VDC. The inverter can be used with batteries, but can also work without. The integrated solar charger optimizes the charging and discharging of the battery. Priorities can be assigned, where for example charging from the grid can be preferred over charging from the PV installation. Monitoring will be possible when adding a separate Wi-Fi or GPRS dongle.

  • Integrated MPPT charge controller
  • The charging priority of the battery can be set
  • The load supply priority can be set
  • Optional WIFI / GPRS remote monitoring
  • Supports 6 parallel machines

Solar charger

The solar charger helps maximize the longevity of the battery. This is partially because the solar charger continuously regulates the charge from and to the battery. The battery will, because of it, be protected from either being overcharged or fully emptied.

Monitoring

A separate dongle allows to connect the inverter with for example a mobile phone or desktop computer. This lets you connect and check the status of the entire PV system. The dongle has a Wi-Fi and GPRS version.

SPECIFICATIONS

Model Growatt SPF 3000 TL HVM-24
Battery Voltage 24VDC
Battery Type Lithium/Lead-acid
Rated Power 3000VA/3000W
Parallel Capability No
AC Voltage Regulation (Battery Mode) 230VAC ± 5% @ 50/60Hz
Surge Power 6000VA
Efficiency 93%
Waveform Pure sine wave
Maximum PV Array Power 1500W
MPPT Range @ Operating Voltage 30VDC ~ 80VDC
Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1
Maximum PV Array Open Circuit Voltage 102VDC
Maximum Solar Charge Current 50A
AC Charge Current 30A
AC Input Voltage 230 VAC
Dimensions 315x400x130mm | 8.5kg
Operating Temperature 0°C – 55°C
Storage Temperature -15°C – 60°C
