Description
The Ultra Lithium batteries are suitable to use with most modern lead acid chargers with adjustable settings and/or a Lithium/VRLA charge profile. Lithium Hi-Low voltage limits must be set.
Lithium Hi-Low voltage limits must be set.

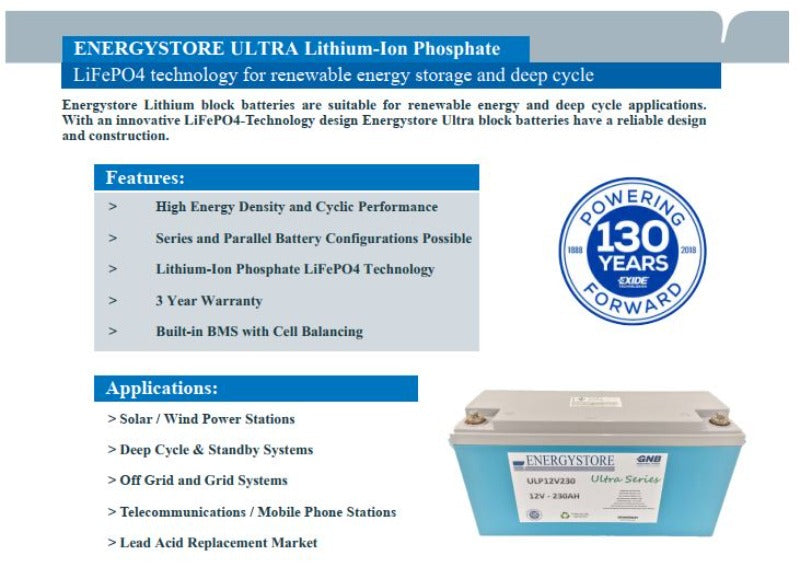

FEATURES
- High Energy Density and Cyclic Performance
- Series and Parallel Battery Configurations Possible
- Lithium-Ion Phosphate LiFePO4 Technology
- 3 Year Warranty
- Built-in BMS with Cell Balancing
Applications:
- Solar / Wind Power Stations
- Deep Cycle & Standby Systems
- Off Grid and Grid Systems
- Telecommunications / Mobile Phone Stations
- Lead Acid Replacement Market

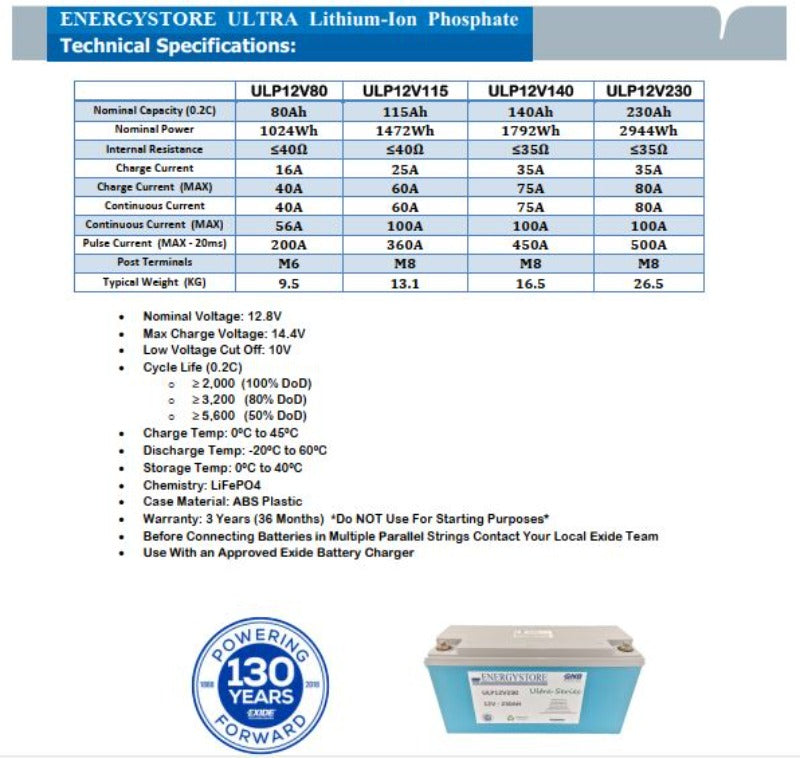

SPECIFICATIONS
| Nominal Voltage: | 12.8V |
| Max Charge Voltage: | 14.4V |
| Low Voltage Cut Off: | 10V |
| Cycle Life (0.2C): | ≥ 2,000 (100% DoD); ≥ 3,200 (80% DoD); ≥ 5,600 (50% DoD) |
| Charge Temp: | 0oC to 45oC |
| Discharge Temp: | -20oC to 60oC |
| Storage Temp: | 0oC to 40oC |
| Chemistry: | LiFePO4 |
| Case Material: | ABS Plastic |
| Warranty: | 3 Years (36 Months) *Do NOT Use For Starting Purposes* |
| Before Connecting Batteries in Multiple Parallel Strings Contact Your Local Exide Team | |
| Use With an Approved Exide Battery Charger | |
3 Years (36 Months) *Do NOT Use For Starting Purposes*
NOTES:
Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
