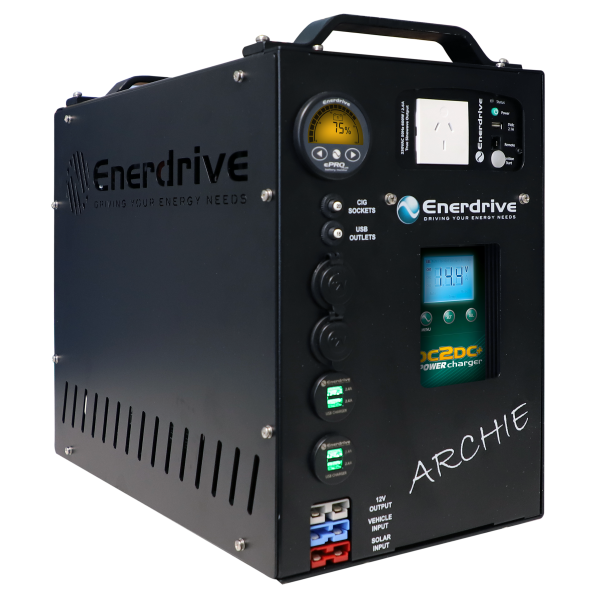

Enerdrive The Archie Portable Power System (K-ARCHIE)


Size: K-ARCHIE-1
Price:
Sale price$4,287.00

Description

Enerdrive The Archie Portable Power System, 5 Year Warranty. Following the great success of the Enerdrive Power System Series initial releases, comes another practical solution from Enerdrives in-house design team. Archie is an All-In-One Power System designed to be either permanently installed or portable giving flexibility across multiple vehicles or applications.

FEATURES

Why the name Archie, well that is because the designers worked on ensuring Archie fits in the space behind most modern Ute’s wheel arches and the tail gate, providing quick installation and easy access.This lightweight compact power system can supply all your camping, work site or even picnic power needs

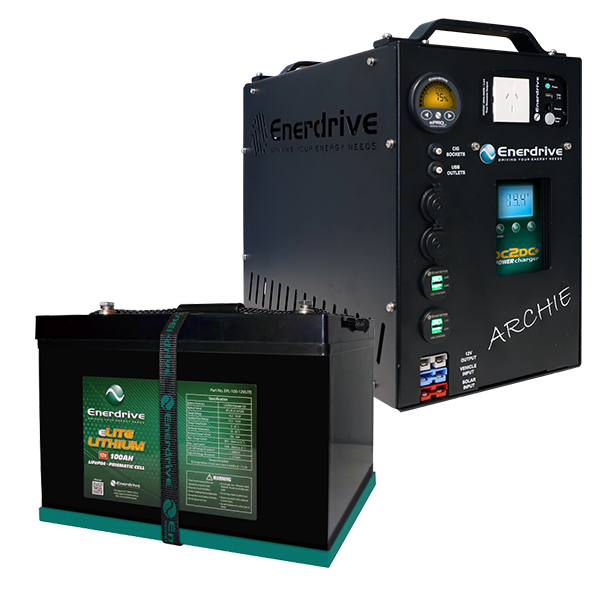

The Archie includes the following Enerdrive components:

  • Powercoated Alloy Construction Case inc Handles
  • eLITE 12V 100AH Lithium Battery; or
  • ePOWER B-TEC 125Ah Lithium Battery
  • ePOWER DC2DC 40+ Charger inc MPPT Solar Regulator
  • ePOWER 600W Pure Sine Wave Inverter
  • ePRO Plus Battery Monitor
  • 6 x Circuit Breaker for Inputs/Outputs
  • 2 x 50A Anderson Outlets
  • 3 x 12V DC Outlets
  • 2 x Twin USB Outlets
  • Battery Reset Button

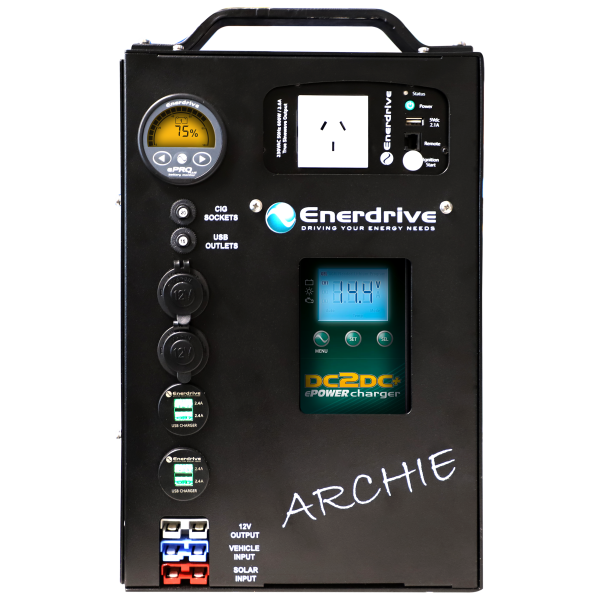

With DC Outlets and Anderson Plugs on the both the front and back it provides versatility for connecting accessories such as fridges, water pumps and compressors. Vehicle charge and solar charge Anderson plugs mounted on the front ensures installation is a breeze, especially with the optional vehicle wiring kit.

Add an additional Enerdrive 240W folding solar panel (SPF-EN240W) and you have a great stand alone power system.

The Archie is available with the eLITE 100Ah battery or the ePOWER B-TEC 125Ah battery as an upgrade option. You can also add the ePRO Plus Bluetooth Dongle for all of the remote monitoring on the battery via the free Enerdrive ePRO PLUS App through Android or Apple applications.

SPECIFICATIONS

Product Name
Enerdrive The Archie Portable Power System, 5 Year Warranty
SKU K-ARCHIE
GTIN (Global Trade Item Number) 9342616028292
Warehouse Enerdrive
Brands Enerdrive
Product Category Power Systems
Charger Mode Output Voltage 13.8V - 15.5V (Battery Charger)
Float 13.0V - 13.8V (Battery Charger)
Equalize 15.5V (Battery Charger)
Amps 40A (Battery Charger)
Charging Control Three Stages (Battery Charger)
DC Output Single (Battery Charger)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
Charger Efficiency 95% (Battery Charger)
Peak Power 900W (Power Inverter)
Output Voltage and Frequency 230 Vac / 50 Hz (Power Inverter)
Operating Temperature Range 0°C to 40°C (Power Inverter)
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (Battery Charger)
Humidity 5-90% noncondensing (Power Inverter)
Output System Voltage 12V (Battery Charger)
Under Voltage Alarm 11.0 VDC (Power Inverter)
Nominal Voltage 12.8V (100Ah & 125Ah Batteries)
Nominal Capacity 100Ah (100Ah Battery) | 125Ah (125Ah Battery)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (100Ah & 125Ah Batteries)
Battery Charge Temperature 0 ̴ 45°C (100Ah & 125Ah Batteries)
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V (100Ah Battery) | 14.40 ̴ 14.60V (125Ah Battery)
Maximum Charge Current 80A @ 25°C for 30mins (100Ah Battery) | 60A @ 25°C for 30mins (125Ah Battery)
Recommended Charge Current for Maximum Life ≤ 33A (100Ah Battery) | ≤ 40A (125Ah Battery)
Battery Discharge Temperature -20 ̴ 60°C (100Ah & 125Ah Batteries)
Battery Output Voltage Range 11.00 ̴ 14.60V (100Ah & 125Ah Batteries)
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (100Ah & 125Ah Batteries)
Pulse Discharge Current 450A for 1.0s (100Ah & 125Ah Batteries)
Discharge Cut-off Voltage ≤ 11.20V (100Ah & 125Ah Batteries)
Input Voltage 12.5 VDC (Power Inverter)
Output wave form True Sinewave (Power Inverter)
Dimensions (LxWxH mm) 310 x 170 x 236 mm (100Ah Battery) | 318 x 165 x 215 mm (125Ah Battery) | 242 x 172 x 74 (Battery Charger) | 175 x 237 x 89 (Power Inverter)
Dimensions 470L x 265W x 415Hmm (Without Brackets) | 490L x 265W x 415Hmm (With Brackets)
Battery Weight 12.5 Kg (100Ah Battery) | 15 kg (125Ah Battery)



WARRANTY

5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.
