Description

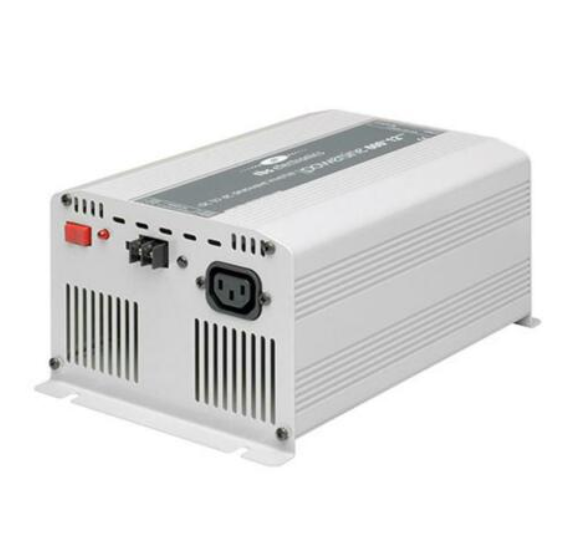

The TBS inverter series features an advanced microprocessor control system that controls all the system workings. This control is done by fast and efficient software algorithms dedicated to protecting the inverter and your system, while the real power of the unit is delivered via the low loss toroidal transformer. This toroidal transformer is designed to generate surge loads well in excess of the rated power output for long periods of time. The transformer and microprocessor both work together to provide a reliable inverter output under all conditions (including harsh, vibration prone applications). You could call the TBS range of inverters Built like a Tank.
Besides the advanced inbuilt diagnosis system that monitors the inverter, there is also an efficient Power Save Mode (PSM) system that makes it possible to drastically reduce the inverters own power consumption when no AC load is present. This power level can be adjusted as required to suit the users low power threshold values, all that is required is to switch the on / off switch to the desired threshold point.
All TBS inverters are simple to use, simply connect to the battery bank and away you go. Although they are slightly heavier than microprocessor controlled power inverters, the long term benefits of using a toroidal transformer make the TBS a far better choice. Each TBS inverter features solid mounting points to make your installation easy.
FEATURES
- Delivers Pure sine wave output 200, 300 & 550watt @ 12volts 200, 300 & 700 watt @ 24volts
- Low-Frequency Toroidal transformer design for high power surges and design safety
- Exceptional power output per size and weight
- Easy to use power save mode for low stand by current
- High quality, European designed power inverters packed with advanced components for long term reliability
SPECIFICATIONS
| Model | 200Watt 12V | 300Watt 12V | 600Watt 12V | 1600Watt 12V |
| Output Power (continuous) @25°C |
175W | 250W | 500W | 1300W |
| Surge Capacity (Peak) @25°C |
400W | 700W | 1000W | 2500W |
| Output Voltage | 230 Vac ± 2% | |||
| OutPut Frequency | 50 Hz ± 0.05% | |||
| Output Waveform | True sinewave (THD < 5% @ Pnom) | |||
| Peak Efficiency | 90% | 91% | 92% | 92% |
| No Load Current Draw | < 0.23amp | < 0.25amp | < 0.4amp | < 0.8amp |
| Input Voltage Range | 10.5 – 16 Vdc | 10.5 – 16 Vdc | 10.5 – 16 Vdc | 10.5 – 16 Vdc |
| Operating Temperature Range | -20 to + 50° C | |||
| Display | Led | Led | Led |
URC/TBS Led / Optional Remote Control
|
| Battery Connection | 2 wire 1.5mtr / 4mm² | 2 wire 1.5mtr / 4mm² | 2 wire 1.5mtr / 10mm² |
2 wire 1.5mtr / 35mm²
|
| Mounting Bracket | Built in | |||
| Internal DC Fuse | Yes – Not User Replaceable | |||
| Dimensions (H x W x L) |
98x130x154mm (w/o mnt brkts) | 98x130x184mm (w/o mnt brkts) | 113x163x228mm (w/o mnt brkts) |
114x210x351mm (inc mnt brkts)
|
| IP Rating | IP 20 | |||
| Weight | 2.4kg | 3.5kg | 6.2kg | 10.5kg |
| Warranty | 5 Year | |||
WARRANTY
Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.
