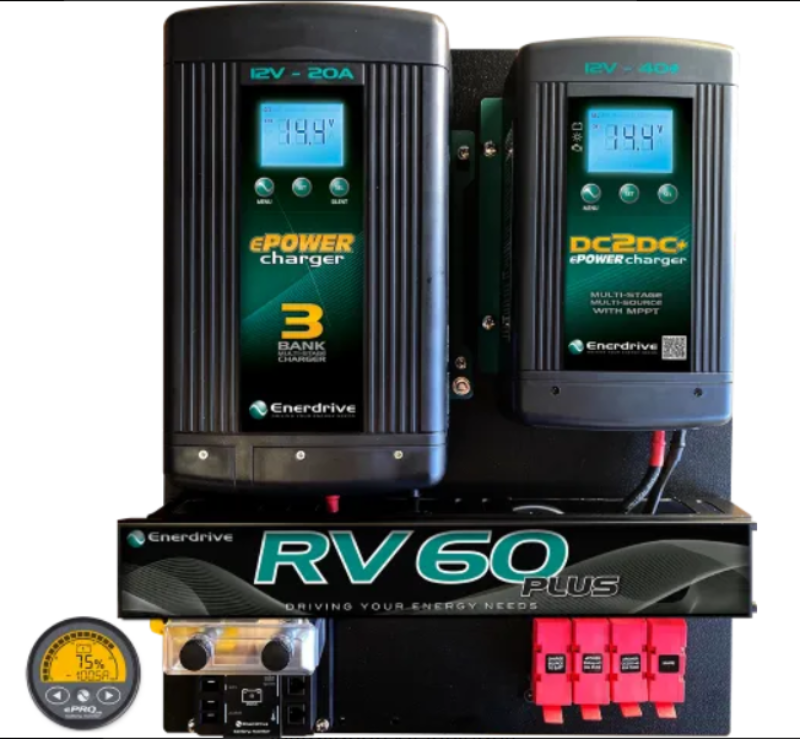

Enerdrive RV60 DIY Installation Kit with 40A DC2DC & 20A AC Battery Charger. Introducing Enerdrives RV Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.
Enerdrive have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. You can choose kits ranging from 20A AC & 40A DC chargers through to 40A AC & DC units with monitoring and Low Battery Cutout.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All RV boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Enerdrive also have you covered from a service and support angle with the RV Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely.
PRO TIP: Common accessories to go with this canopy system are; one or two AGM Board Cable Kits. Thickness, length & quantity will depend on installation type. Please check products cable description for details.
Installation Kit includes;

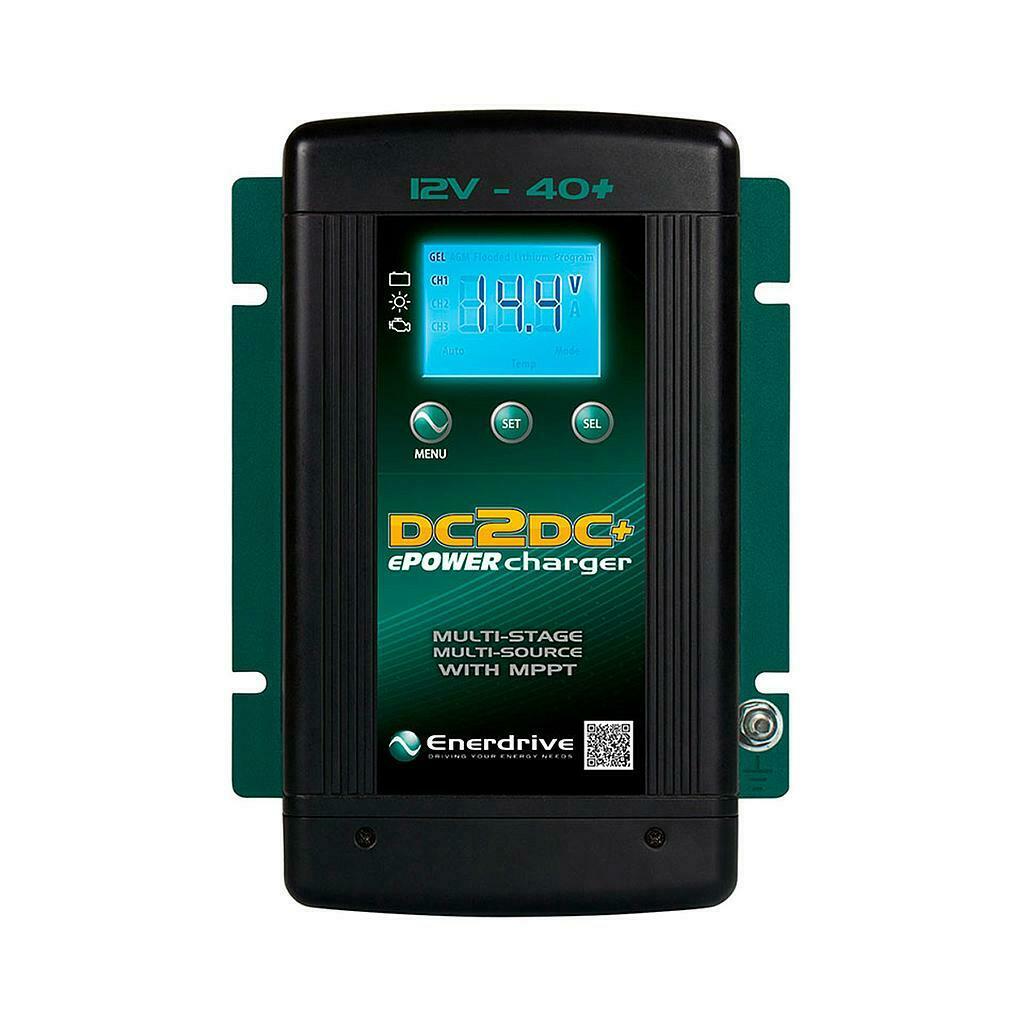

- 1 x DC2DC40+ Charger for Vehicle/Solar charge.

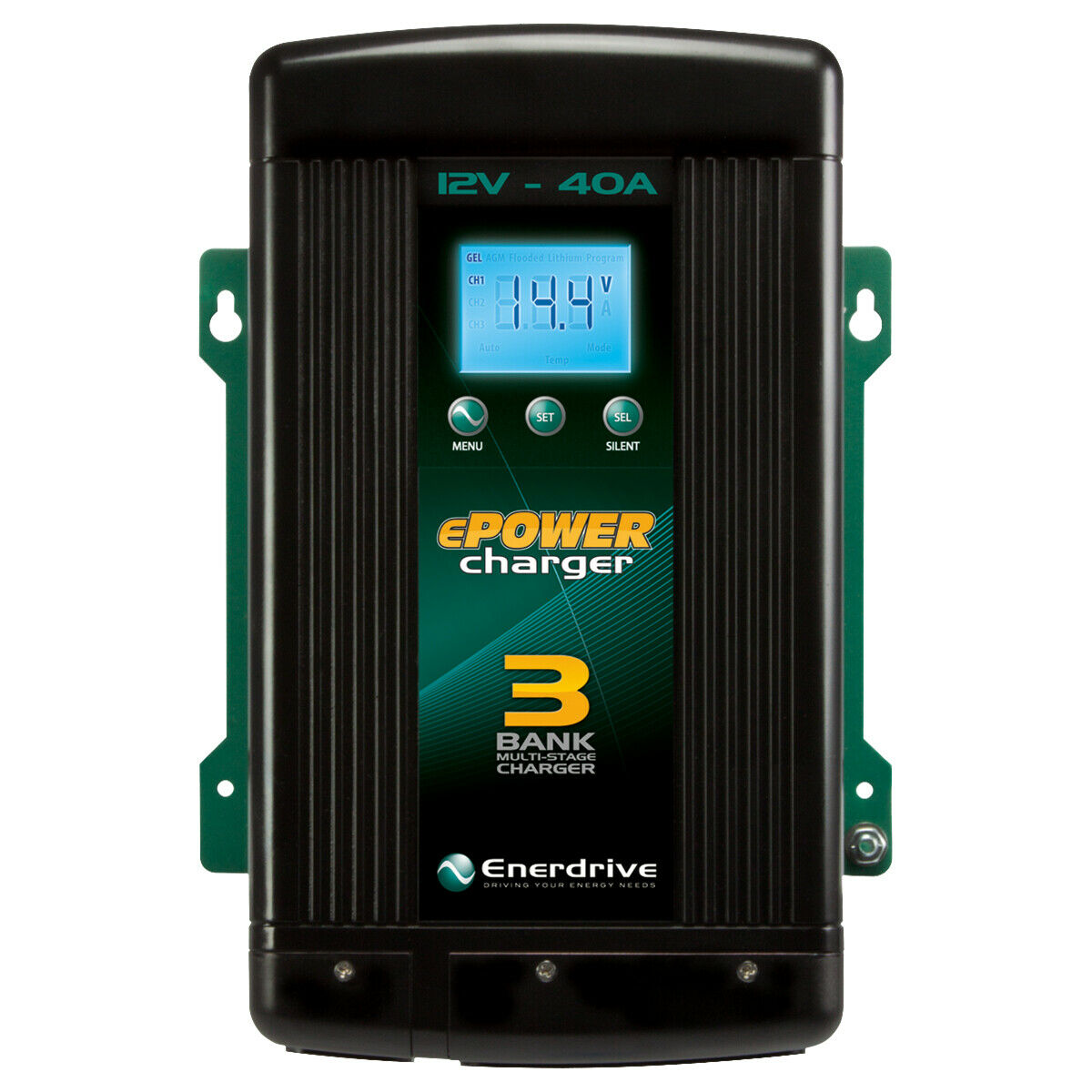

- 1 x EN31220 20A AC charger for Mains/Generator charge.

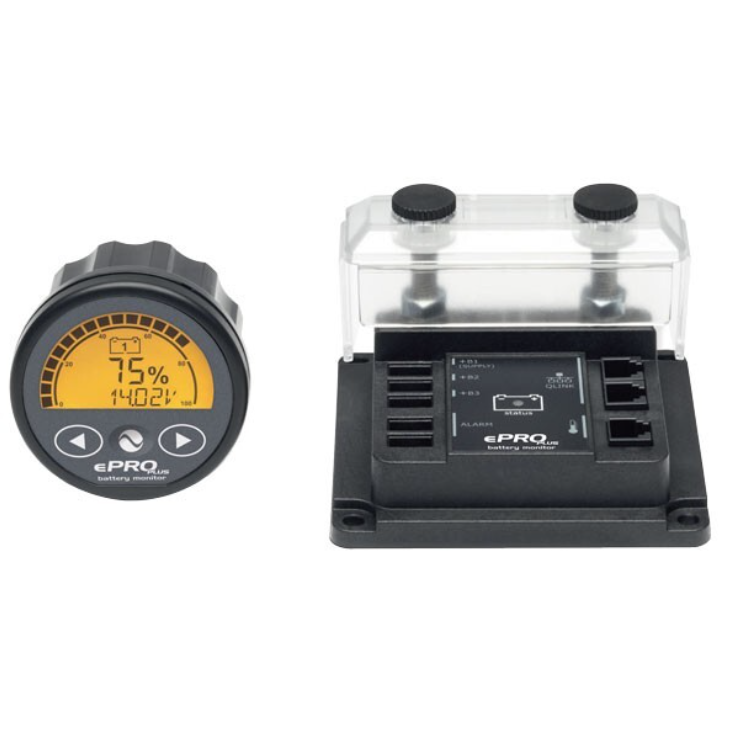

- 1 x ePRO Battery Monitor.
- Fusing for both AC & DC chargers.
- Fusing for DC Output to Distribution/Battery.
| RV60 Kits Includes: | K-RV60 | K-RV60-01 | K-RV60-02 | K-RV60-03 |
| ePOWER AC 20Amp 230v Charger | * | * | * | * |
| ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * | * | * | * |
|
ePRO Plus 500A Battery Monitor with Remote Display,
with Audible & Visual Alarm |
* | * | * | |
| ePOWER AC Charger 30A Output Fuse Connection | * | * | * | * |
| ePOWER DC2DC 60A Output Fuse Connection | * | * | * | * |
| 50A Load Output Fuse Connection | * | * | * | * |
| 8 Circuit "Wedge" Fuse Block | * | |||
|
Low Battery Cutout
(Programmed in ePRO Plus via Users Data Input) |
* | |||
| 12mm Black Plastic Mounting Board. Water & Rot Resistance | * | * | * | * |
| Dimensions (LxWxD) mm | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 |
| (*) Indicates Standard Fitment | ||||
SPECIFICATIONS
| Charger Mode Output Voltage | 13.8V - 15.5V (DC Charger) 14.2V - 15.5V (AC Charger) |
| Float | 13.0V - 13.8V (DC Charger) 13.4V - 13.8V (AC Charger) |
| Equalize | 15.5V (DC Charger) 16V (AC Charger) |
| Amps | 20A (AC Charger) 40A (DC Charger & Low Battery Cutout) 30A per circuit,100A per block (Fuse Block) |
| Charging Control | Three Stages (DC Charger) Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging (AC Charger) |
| DC Output | Single (DC Charger) Three (1 fully independent, 2 common with diode isolation) (AC Charger) |
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program (AC & DC Charger) |
| Standby Current | < 2 mA (AC Charger) |
| AC Input Voltage | 90 to 265 VAC (AC Charger) |
| AC Input Operating Range | 207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Charger) |
| AC Input Frequency Range | 47 – 63 Hz (AC Charger) |
| Power consumption (DC 12V) | 350W (Full Load) (AC Charger) |
| Power Factor Correction | Yes (AC Charger) |
| Charger Efficiency | 95% (DC Charger) > 82% (AC Charger) |
| Reverse Polarity | Yes, (with user replaceable fuse/s) (AC Charger) |
| Over Charge | Yes, unit shutdown (AC Charger) |
| Over Temperature Protection | Yes, unit de-rated and shutdown (AC Charger) |
| Cooling | Forced air ventilation (thermo controlled fan) (AC Charger) |
| Output Short Circuit | Yes, (with user replaceable fuse/s) (AC Charger) |
| Temperature Setting | Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Charger) Hot, Normal, Cold (no sensor connected) (AC Charger) |
| Battery Temp Sensor Port | RJ12 (standard battery temp. sensor supplied) (AC Charger) |
| LCD Display | Charging status, Battery Voltage, Output Current & Fault Codes. (AC Charger) |
| AC Input Connection | IEC with Supplied 1.2M Power Lead (AC Charger) |
| DC Output Connection | Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Charger) |
| DC Output Ground | Single Heavy Duty Common Ground Stud (AC Charger) |
| Storage Range (temp) | -40° to 70° C (AC Charger) |
| Operating Range (temp) | -20° to 60° C (AC Charger) |
| Humidity | 5-95%, relative humidity non-condensing (AC Charger) |
| Ingress Protection | IP32 (Basic drip proof in vertical orientation) (AC Charger) |
| Output Current Rating | 40Amps (DC Charger) |
| Output System Voltage | 12V (AC & DC Charger) |
| Voltage | Max. 32V DC (Fuse Block) 12/24V (Low Battery Cutout) |
| Dimensions (LxWxH mm) | 242 x 172 x 74mm (DC Charger) 295 x 206 x 86 mm (AC Charger) 65 x 41 x 82 mm (Low Battery Cutout) |
| Dimensions | 480 x 400 x 100 mm (LxWxD) (Unit) |
| Manufacturers Warranty | 5 Years |
