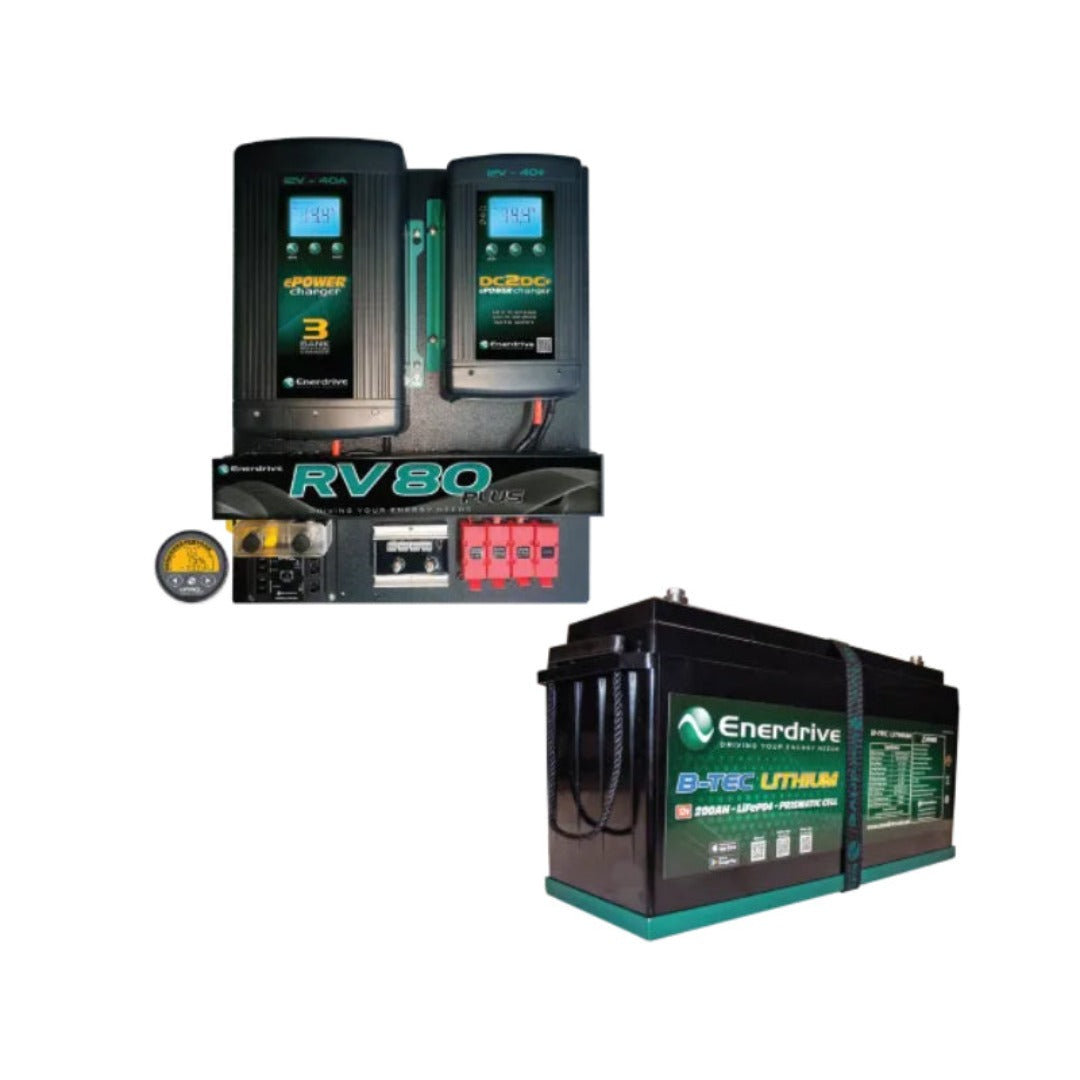

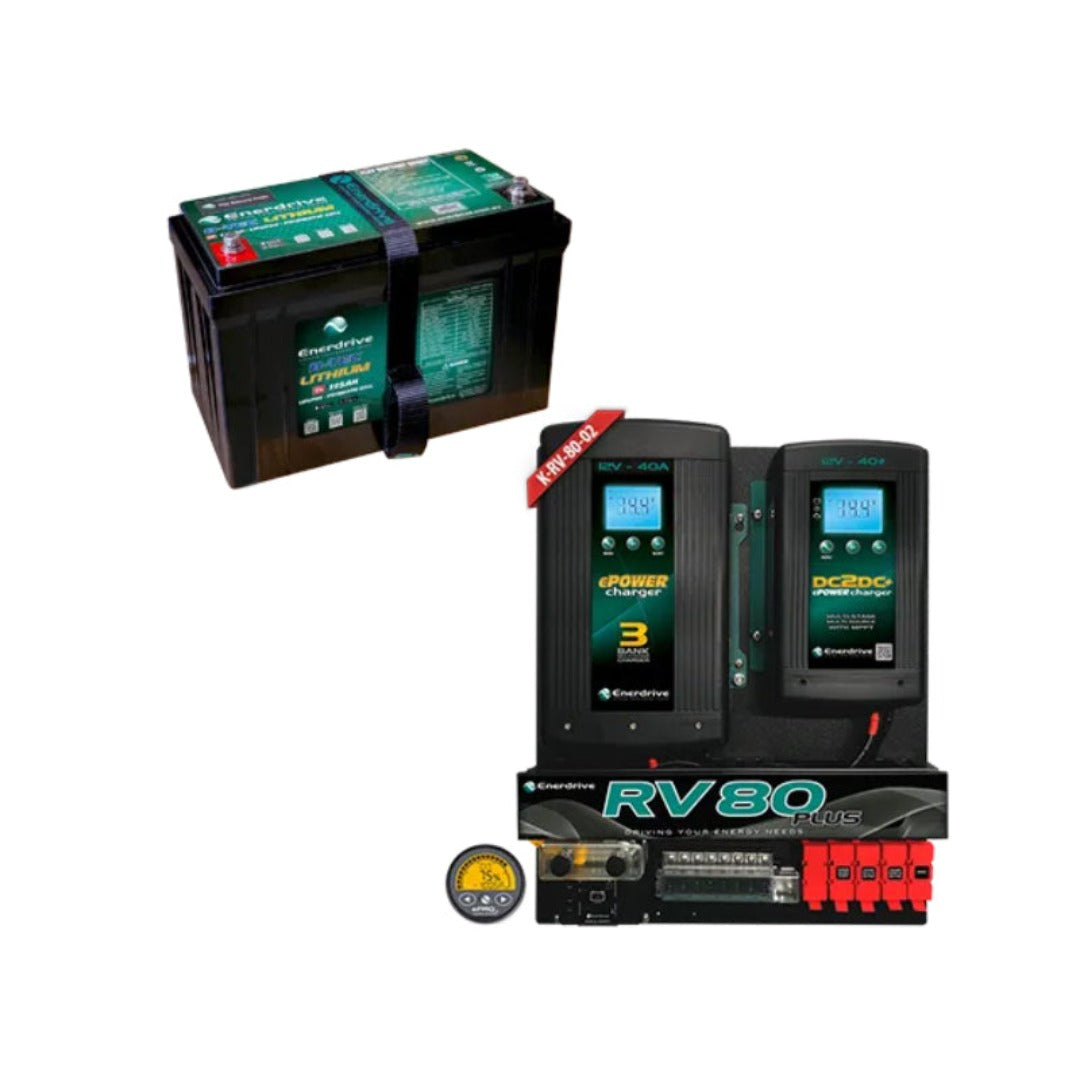

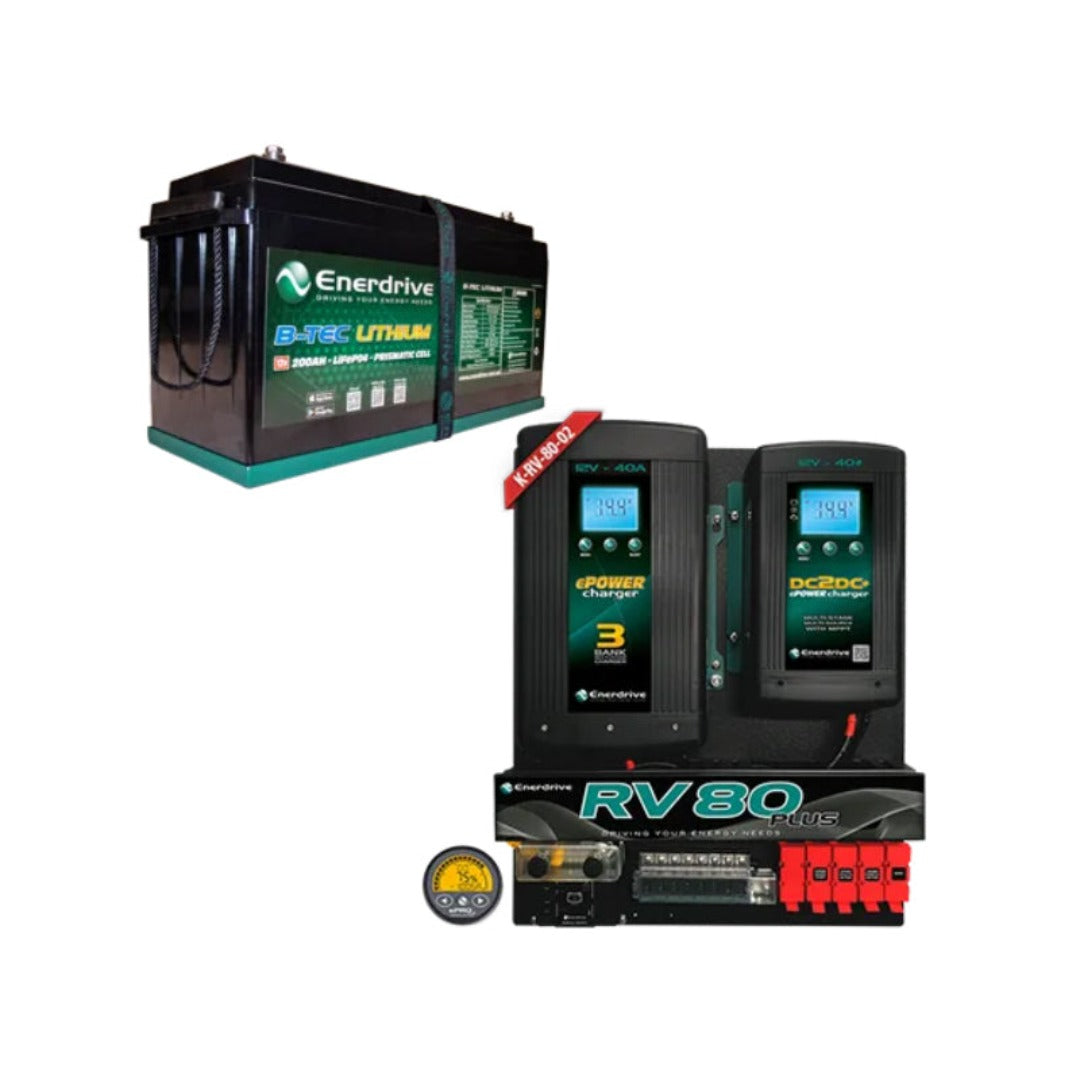

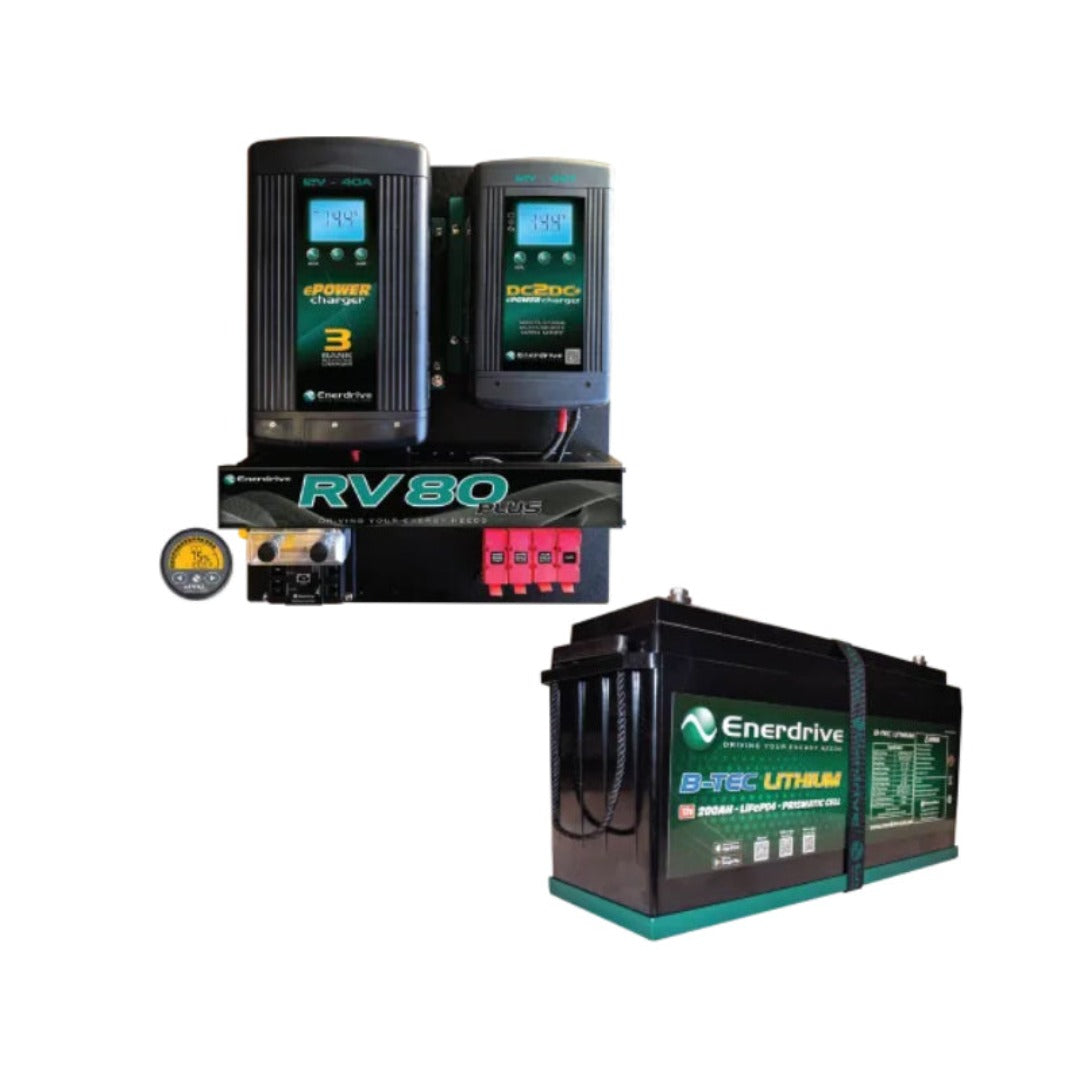

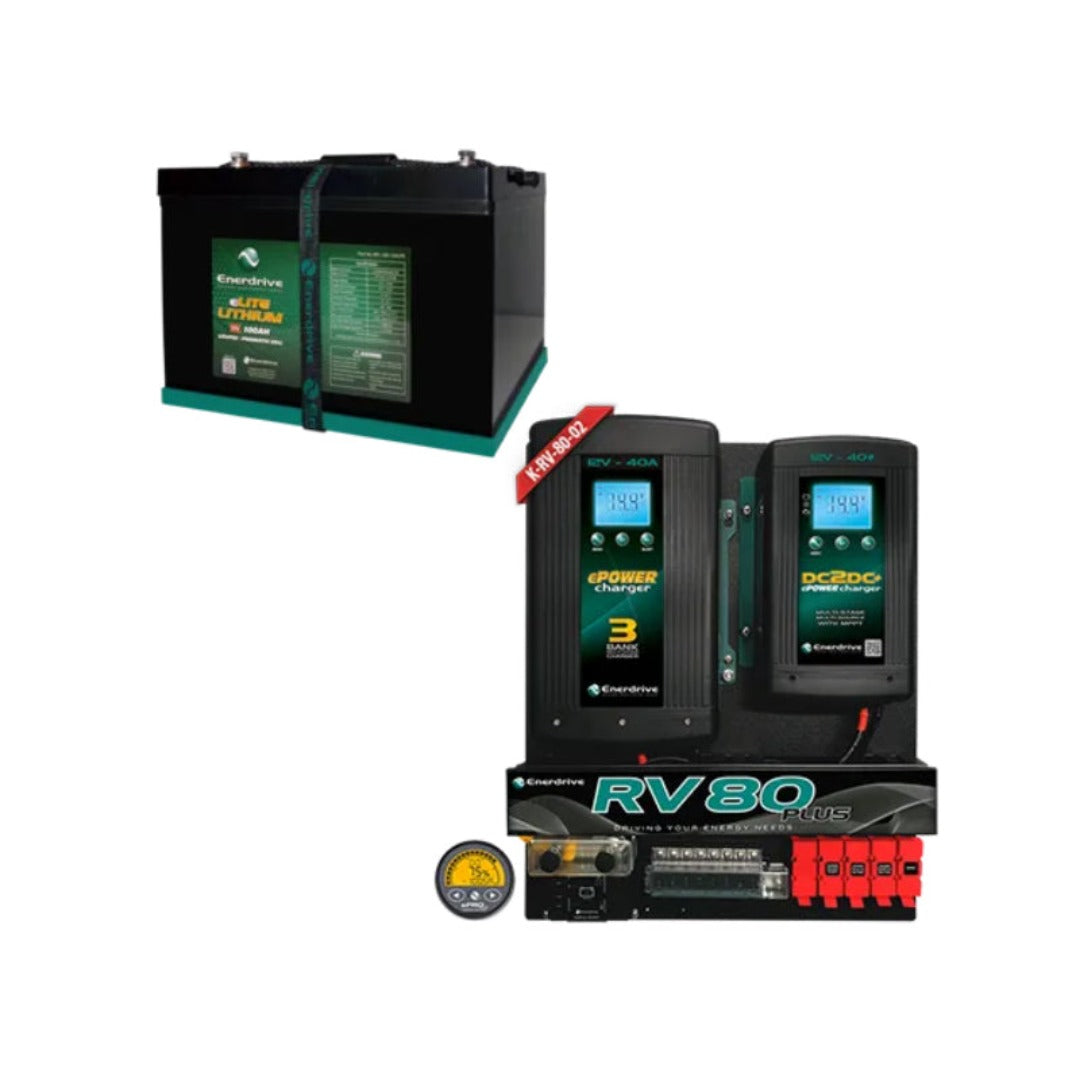

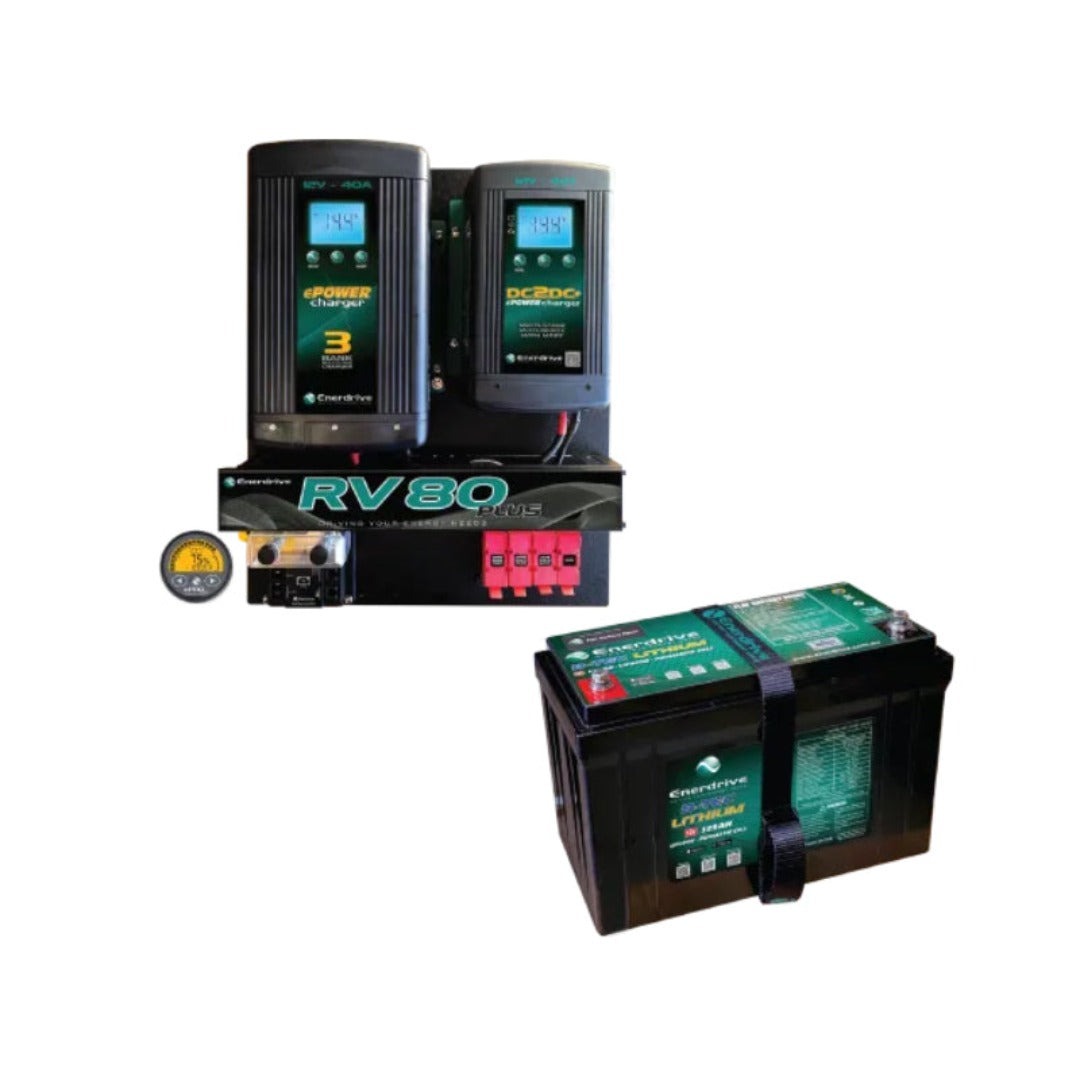

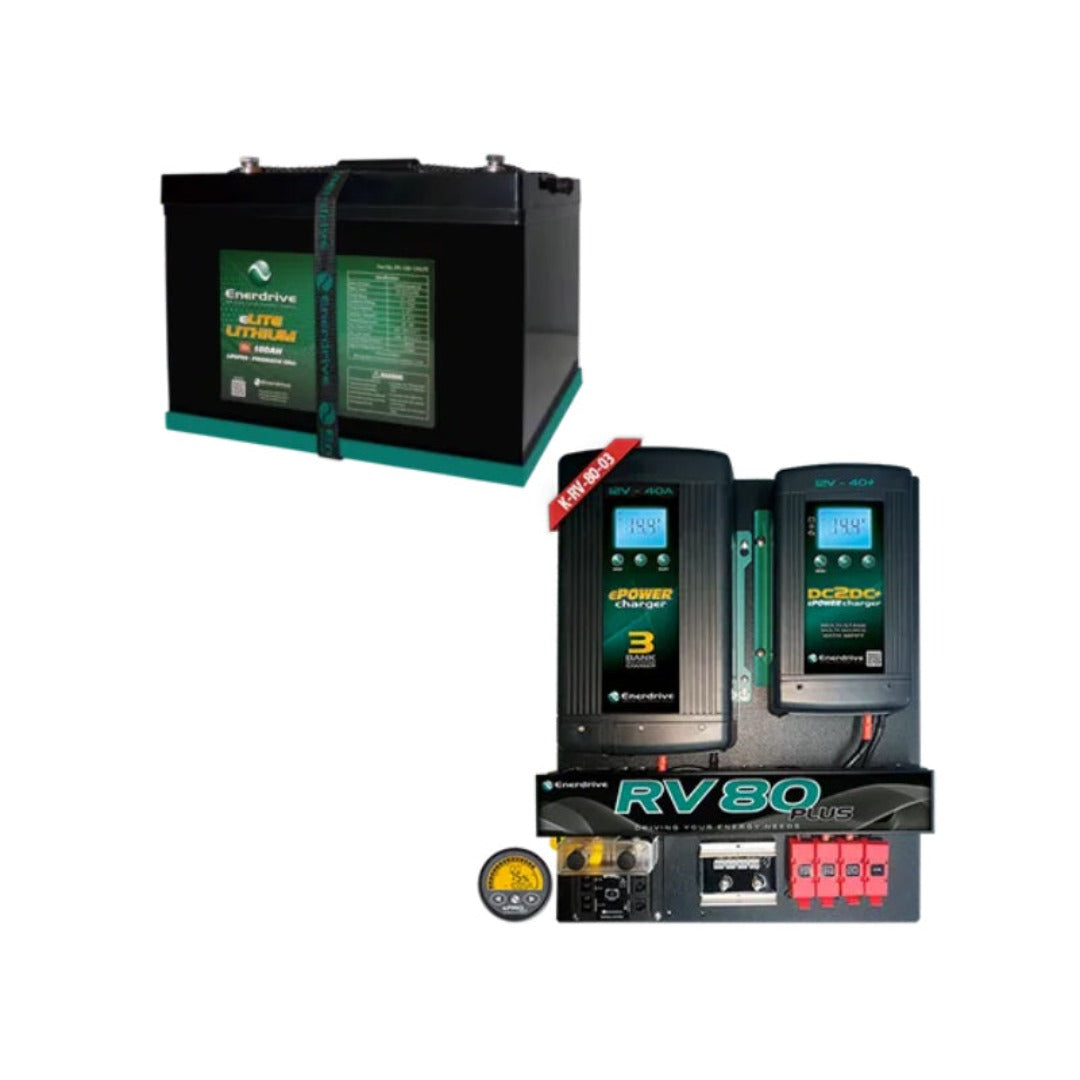

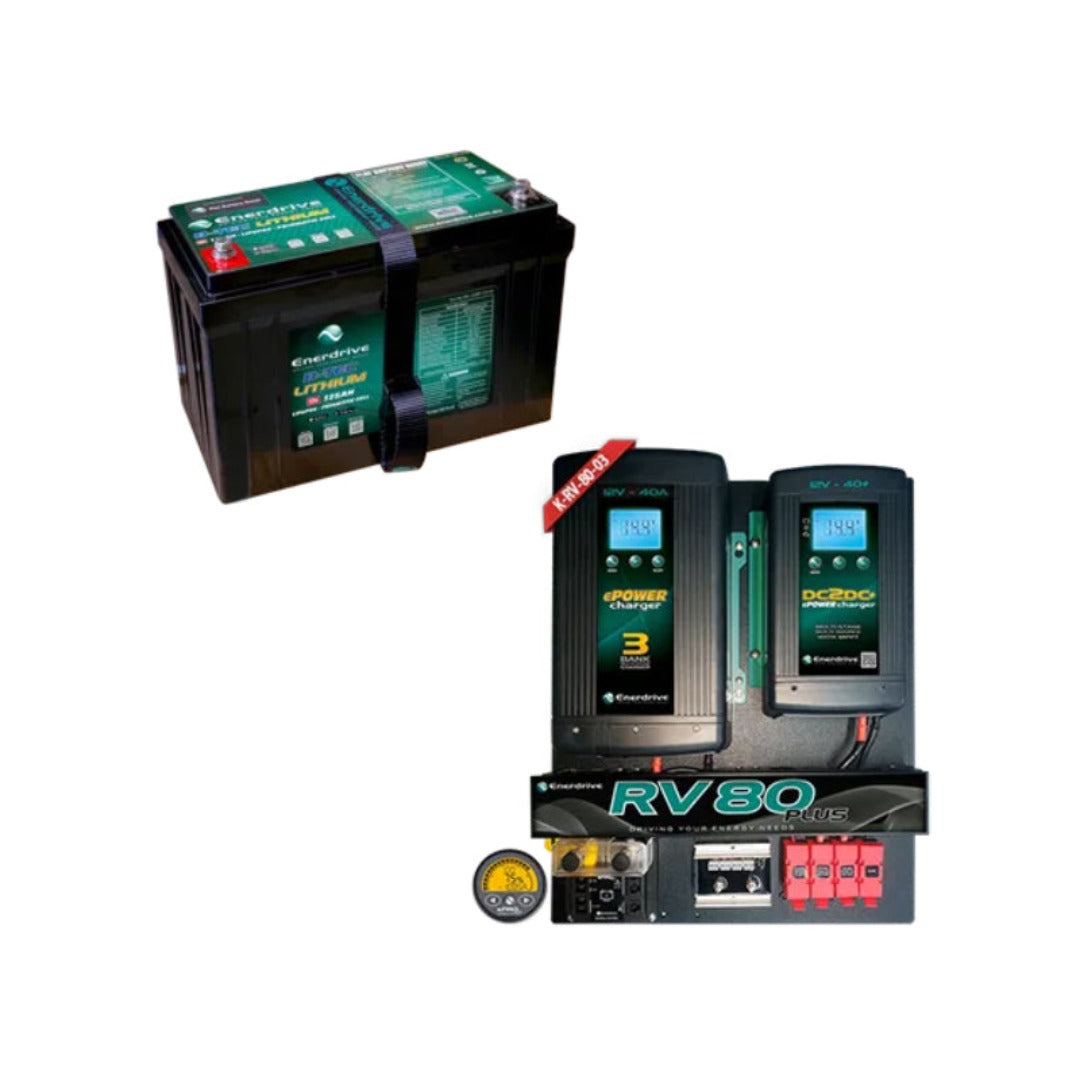

Enerdrive ePOWER B-TEC LiFEPO4 Lithium Battery + RV80 DIY Installation Kit


RV Board Configuration: ePRO Plus Battery Monitor
Battery Selection: Enerdrive eLite 100Ah Lithium Battery
Price:
Sale price$3,421.00

Description

FEATURES

Enerdrive RV80 DIY Installation Kit with 40A DC2DC & 40A AC Battery Charger. Introducing Enerdrives RV Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All RV boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Enerdrive 12V 100Ah eLITE Lithium Battery

The new Enerdrive  12v 100Ah eLITE Lithium Battery has been designed as an “entry-level” lithium battery for the customer who wants to get into the lithium market without having to spend big. This unit is a stripped-back version of the ever-popular 100Ah B-TEC Lithium battery but, without all the bells and whistles.

Enerdrive ePOWER B-TEC 12V 125Ah Lithium Battery

The Enerdrive B-TEC 12V 125Ah G2 Lithium Battery now comes with a Battery Strap.
Enerdrive is proud to introduce the new ePOWER B-TEC 125Ah Lithium Battery with Smart Phone Monitoring Technology.

Enerdrive ePOWER B-TEC 200Ah Lithium Battery

The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty. The ePOWER B-TEC is designed and intended for use in deep cycle applications where a single battery is required that meets the amp-hour capacity.

Smart Phone Monitoring System

The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. You can monitor the following information by downloading the app on your Android™ or Apple® smartphone or tablet device;

  • Battery Capacity
  • Battery Voltage
  • Battery Current (Amps)
  • Battery State of Charge (SOC)
  • Battery State of Health (SOH)
  • Battery Status
  • Individual Cell Voltage
  • Battery Temperature
  • Battery Cycles
  • Battery Alarms
  • Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings

Lithium v AGM Capacities;

  • 100Ah Lithium = 160Ah AGM
  • 125Ah Lithium = 200Ah AGM
  • 200Ah Lithium = 320Ah AGM

Installation Kit includes;

  • 1 x DC2DC40+ Charger for Vehicle/Solar charge.
  • 1 x EN31220 20A AC charger for Mains/Generator charge.
  • 1 x ePRO Battery Monitor.
  • 1 x Low Battery Cutout Controlled Via Battery Monitor.
  • Fusing for both AC & DC Chargers & Monitoring.
  • Fusing for DC Output to Distribution/Battery.

Options:

  • Enerdrive eLITE 12V 100Ah Lithium Battery (EPL-100-12VLITE)
  • Enerdrive ePOWER B-TEC 125Ah G2 Lithium Battery with a battery strap (EPL-125BT-12V)
  • Enerdrive ePOWER B-TEC 200Ah Lithium Battery (EPL-200BT-12V-G2)
RV80 Kit Includeds: K-RV080-01 K-RV080-02 K-RV080-03
ePOWER AC 40Amp 230v Charger * * *
ePOWER DC2DC 40+ Charger (Vehicle/Solar) * * *
ePRO Plus 500A Battery Monitor with Remote Display, with Audible & Visual Alarm * * *
ePOWER AC Charger 50A Output Fuse Connection * * *
ePOWER DC2DC 60A Output Fuse Connection * * *
50A Load Output Fuse Connection * * *
8 Circuit "Wedge" Fuse Block
*
Low Battery Cutout
(Programmed in ePRO Plus via Users Data Input)
*
12mm Black Plastic Mounting Board. Water & Rot Resistance * * *
Dimensions (L x W x D) mm 480 x 400 x 100 480 x 400 x 100 480 x 400 x 100
(*) Indicates Standard Fitment

SPECIFICATIONS

Enerdrive RV80 KIT
Charger Mode Output Voltage 13.8V - 15.5V (DC Charger)
14.2V - 15.5V (AC Charger)
Float 13.0V - 13.8V (DC Charger)
13.4V - 13.8V (AC Charger)
Equalize 15.5V (DC Charger)
16V (AC Charger)
Amps 20A (AC Charger)
40A (DC Charger & Low Battery Cutout)
30A per circuit,100A per block (Fuse Block)
DC Output
Single (DC Charger)
Three (1 fully independent, 2 common with diode isolation) (AC Charger)
Selectable Battery Type
Gel, AGM, Flooded, Lithium, Program (AC & DC Charger)
Standby Current < 2 mA (AC Charger)
AC Input Voltage 90 to 265 VAC (AC Charger)
AC Input Operating Range
207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Charger)
AC Input Frequency Range 47 – 63 Hz (AC Charger)
Power consumption (DC 12V) 350W (Full Load) (AC Charger)
Power Factor Correction Yes (AC Charger)
Charger Efficiency 95% (DC Charger)
> 82% (AC Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (AC Charger)
Over Charge Yes, unit shutdown (AC Charger)
Over Temperature Protection Yes, unit de-rated and shutdown (AC Charger)
Cooling
Forced air ventilation (thermo controlled fan) (AC Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (AC Charger)
Temperature Setting
Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Charger)
Hot, Normal, Cold (no sensor connected) (AC Charger)
Battery Temp Sensor Port
RJ12 (standard battery temp. sensor supplied) (AC Charger)
LCD Display
Charging status, Battery Voltage, Output Current & Fault Codes. (AC Charger)
AC Input Connection
IEC with Supplied 1.2M Power Lead (AC Charger)
DC Output Connection
Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Charger)
DC Output Ground
Single Heavy Duty Common Ground Stud (AC Charger)
Storage Range (temp) -40° to 70° C (AC Charger)
Operating Range (temp) -20° to 60° C (AC Charger)
Humidity
5-95%, relative humidity non-condensing (AC Charger)
Ingress Protection
IP32 (Basic drip-proof in vertical orientation) (AC Charger)
Output Current Rating 40Amps (DC Charger)
Output System Voltage 12V (AC & DC Charger)
Voltage Max. 32V DC (Fuse Block)
12/24V (Low Battery Cutout)
Dimensions (LxWxH mm) 242 x 172 x 74mm (DC Charger)
295 x 206 x 86 mm (AC Charger)
65 x 41 x 82 mm (Low Battery Cutout)
Dimensions (LxWxH mm) 480 x 400 x 100 mm (KRV60 Unit)

Enerdrive Lithium Battery
Nominal Voltage 12.8V
Nominal Capacity 100Ah (EPL-100-12VLITE)
125Ah (EPL-125BT-12V)
200Ah (EPL-200BT-12V-G2)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.60V
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Charge Current 80A @ 25°C for 30mins (EPL-100-12VLITE)
60A @ 25°C for 30mins (EPL-125BT-12V)
150A @ 25°C for 30mins (EPL-200BT-12V-G2)
Recommended Charge Current for Maximum Life ≤33A (EPL-100-12VLITE)
≤ 40A (EPL-125BT-12V)
≤ 60A (EPL-200BT-12V-G2)
Dimensions (L x W x H) 310 x 170 x 225 mm
318 x 165 x 215 mm
505 x 172.5 x 265 mm
Weight 12 Kg (EPL-100-12VLITE)
15 Kg (EPL-125BT-12V)
25 Kg (EPL-200BT-12V-G2)

WARRANTY

5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.

NOTE:

* Availability Subject to Individual Items.

** This bundle is made to order. Please give us at least 3 weeks to prepare.

*** Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
