Description
FEATURES

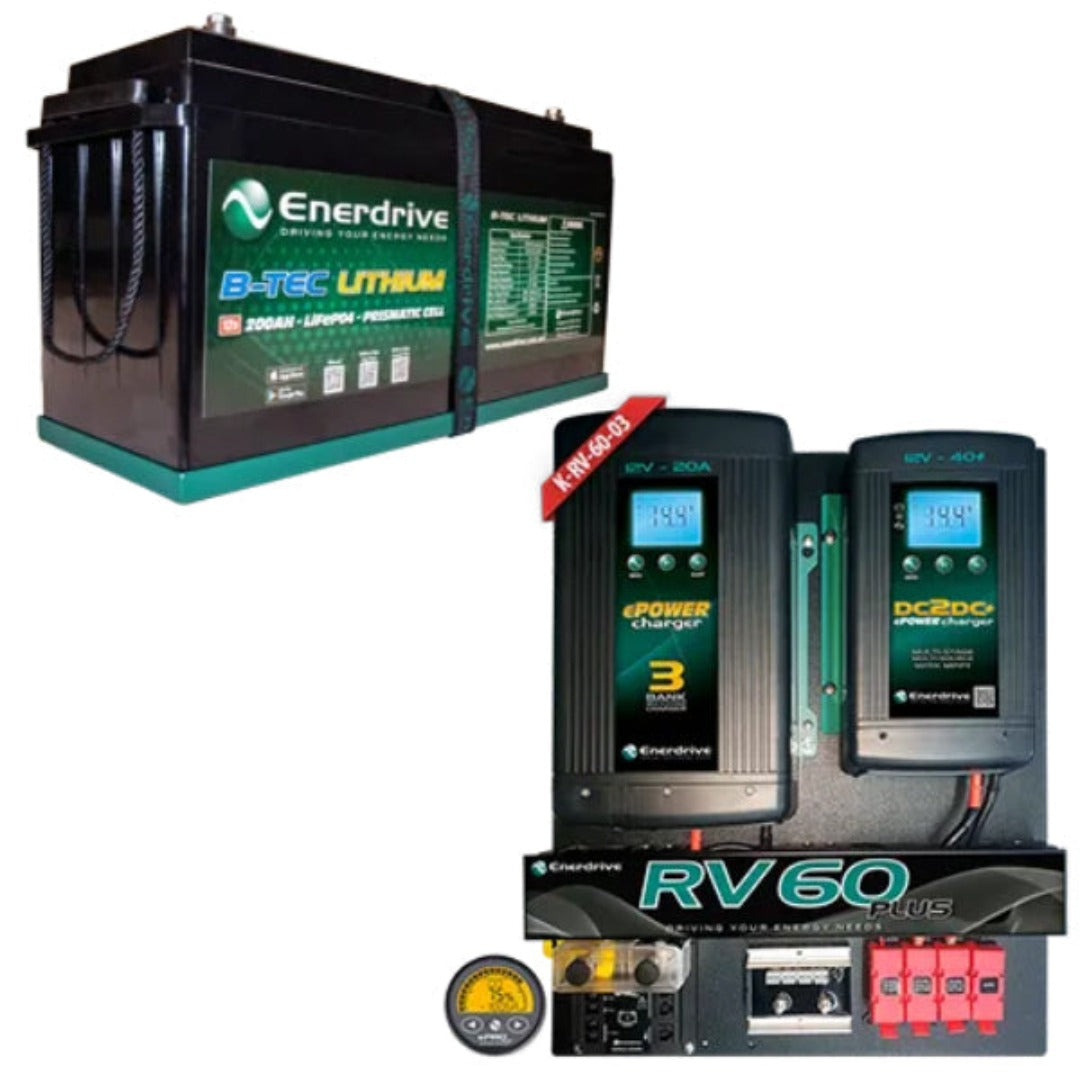

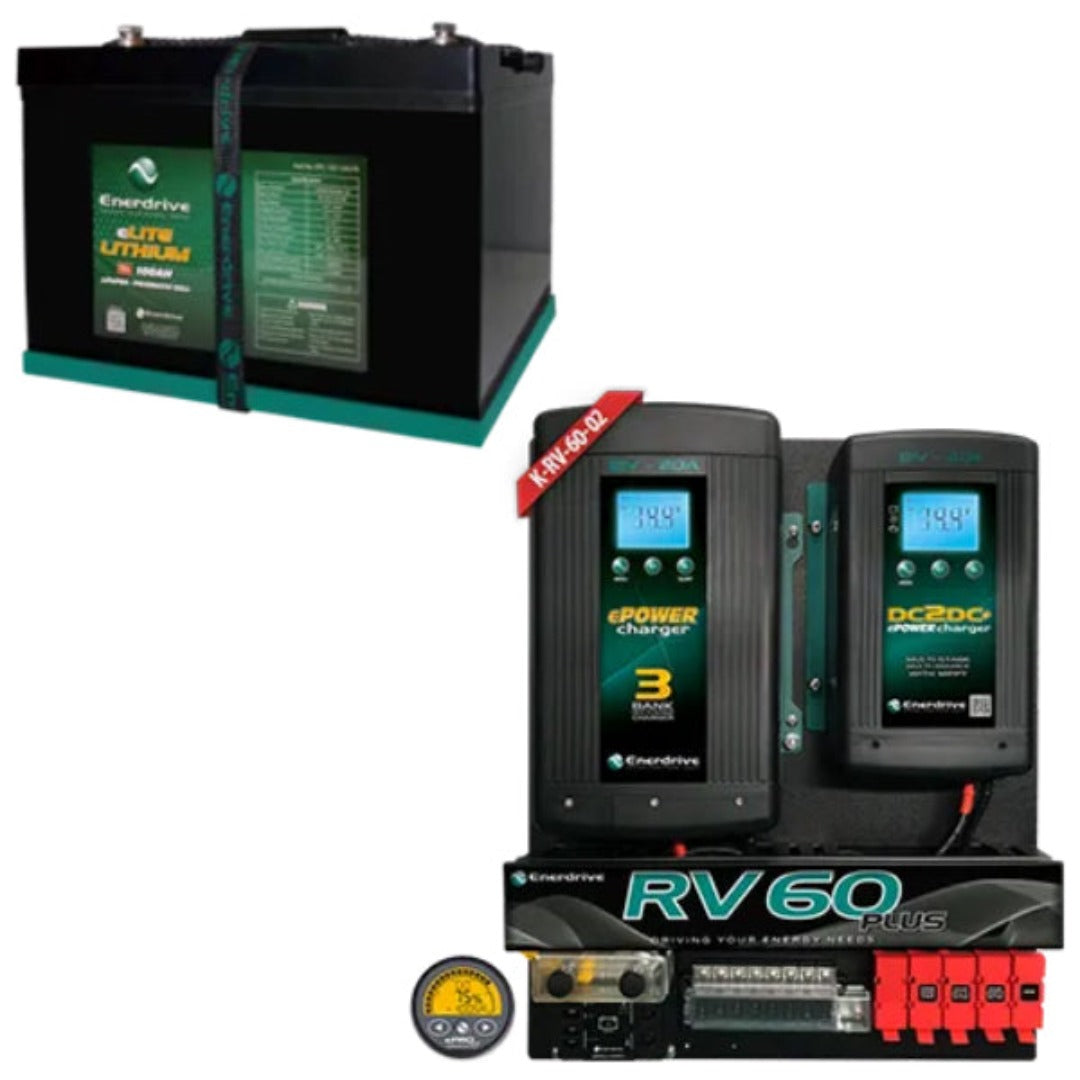

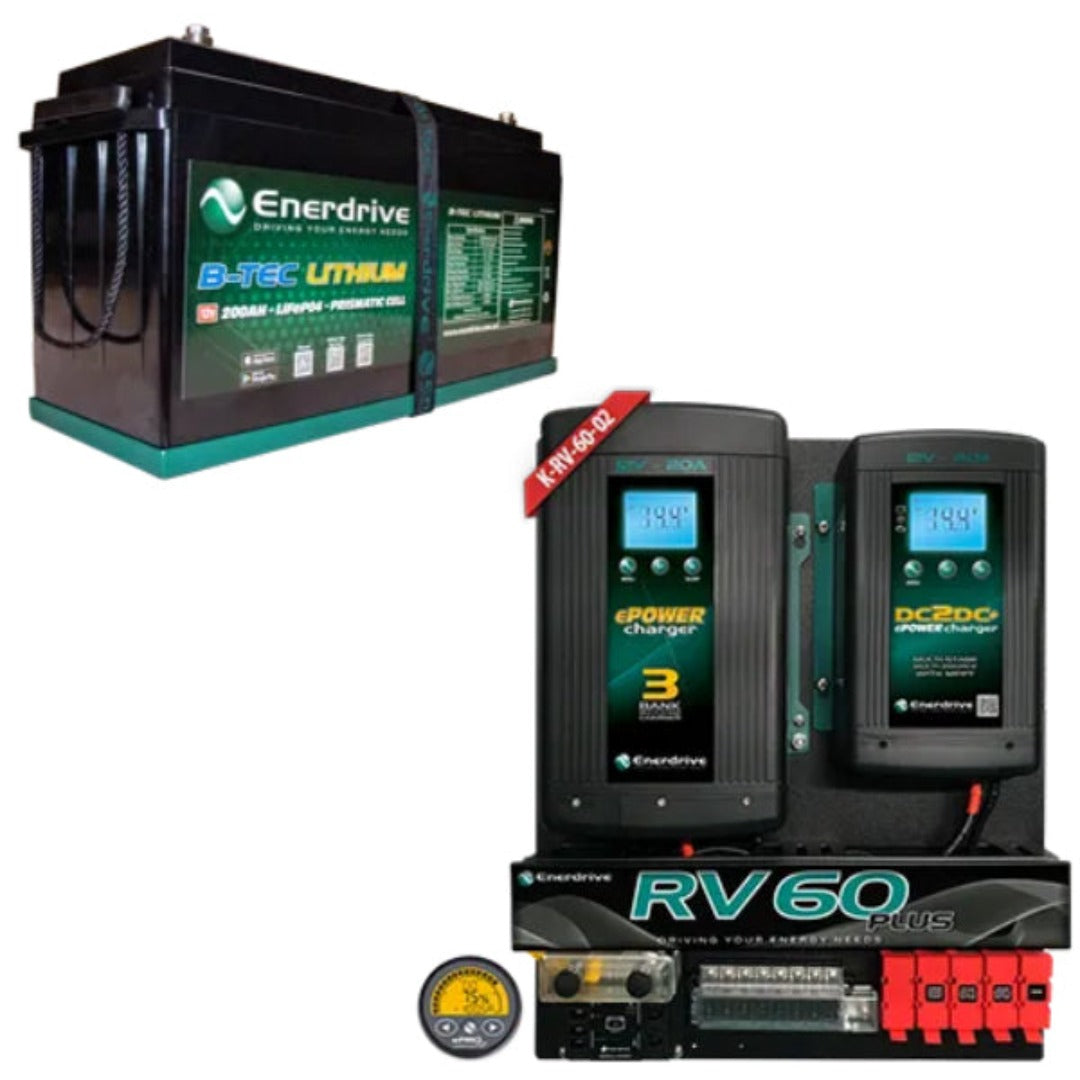

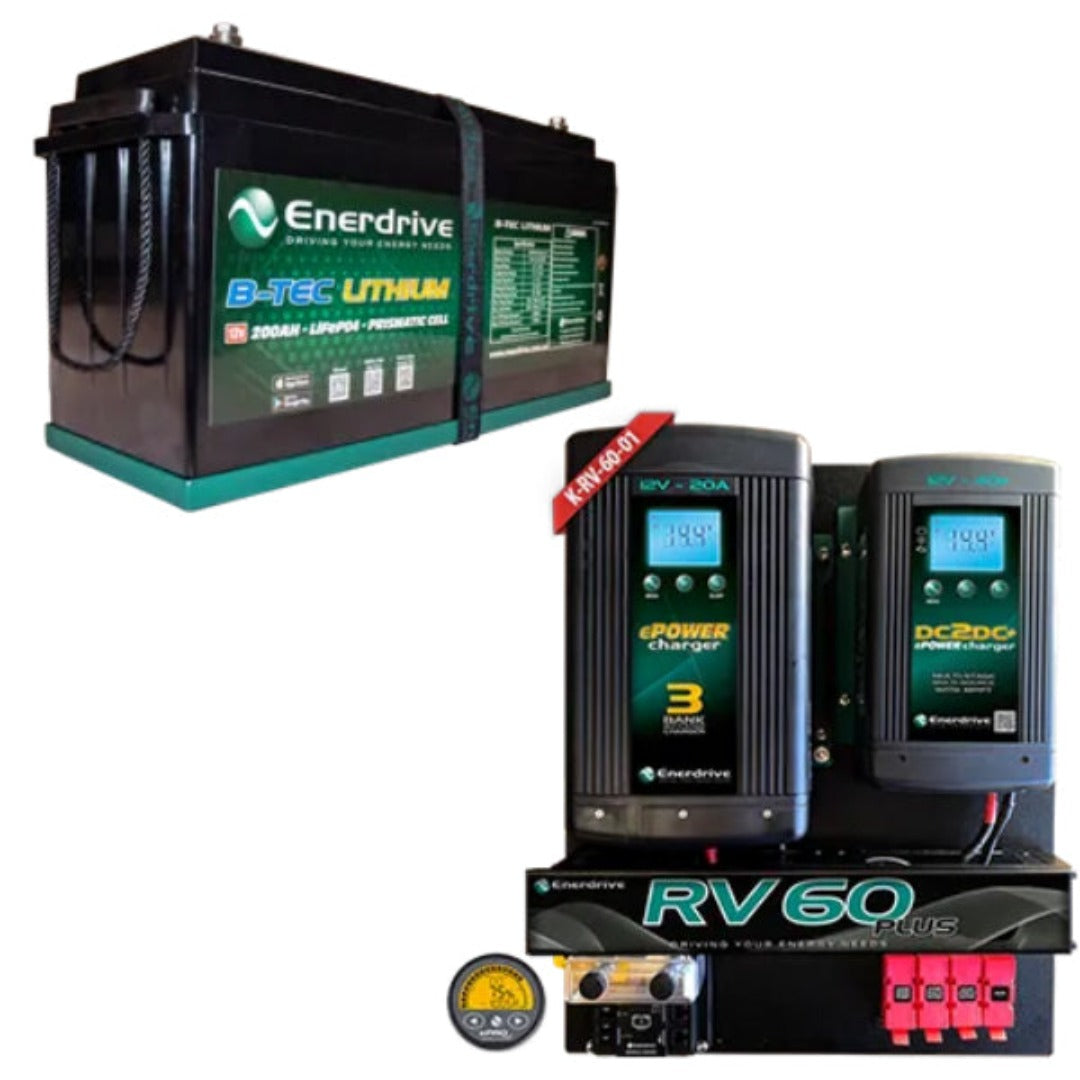

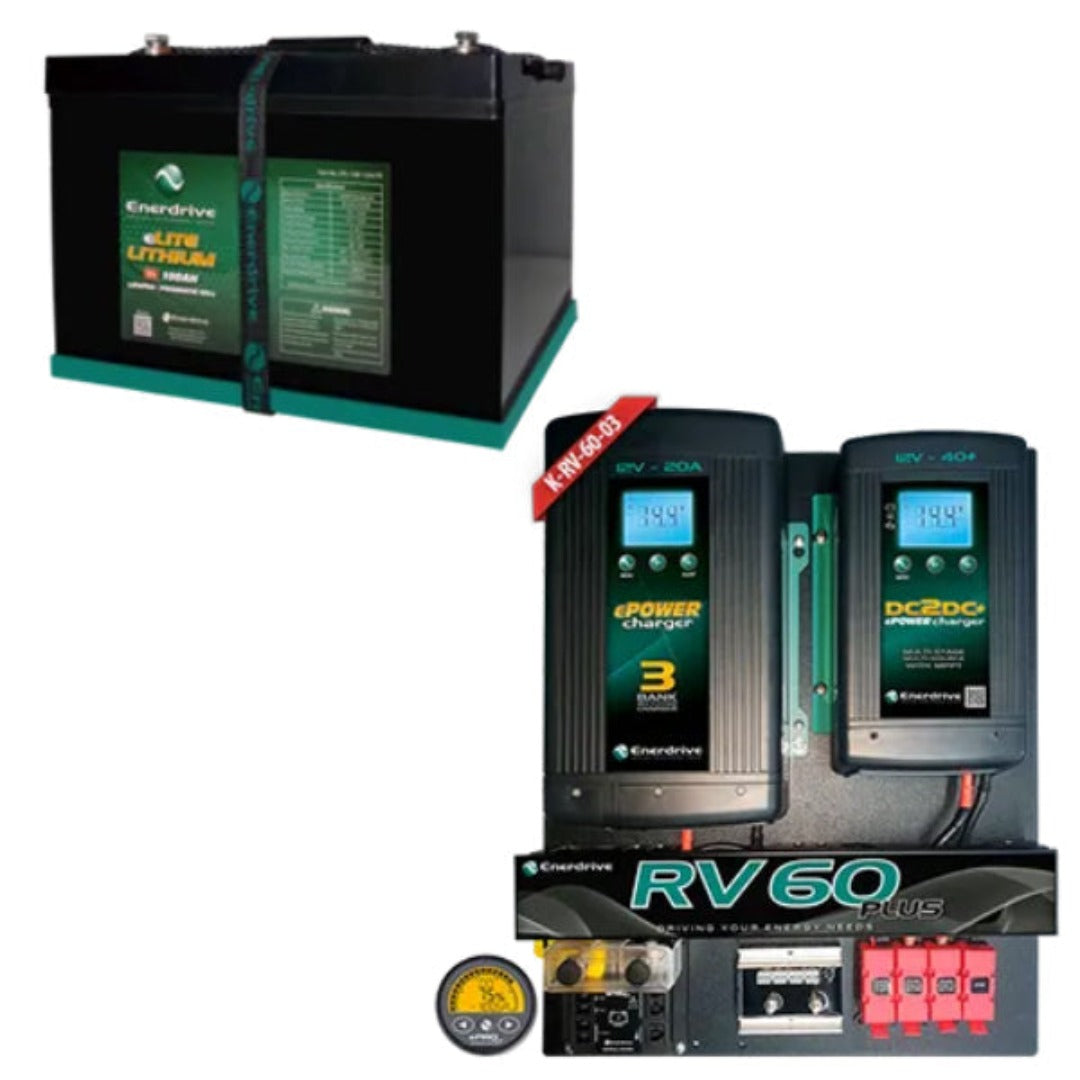

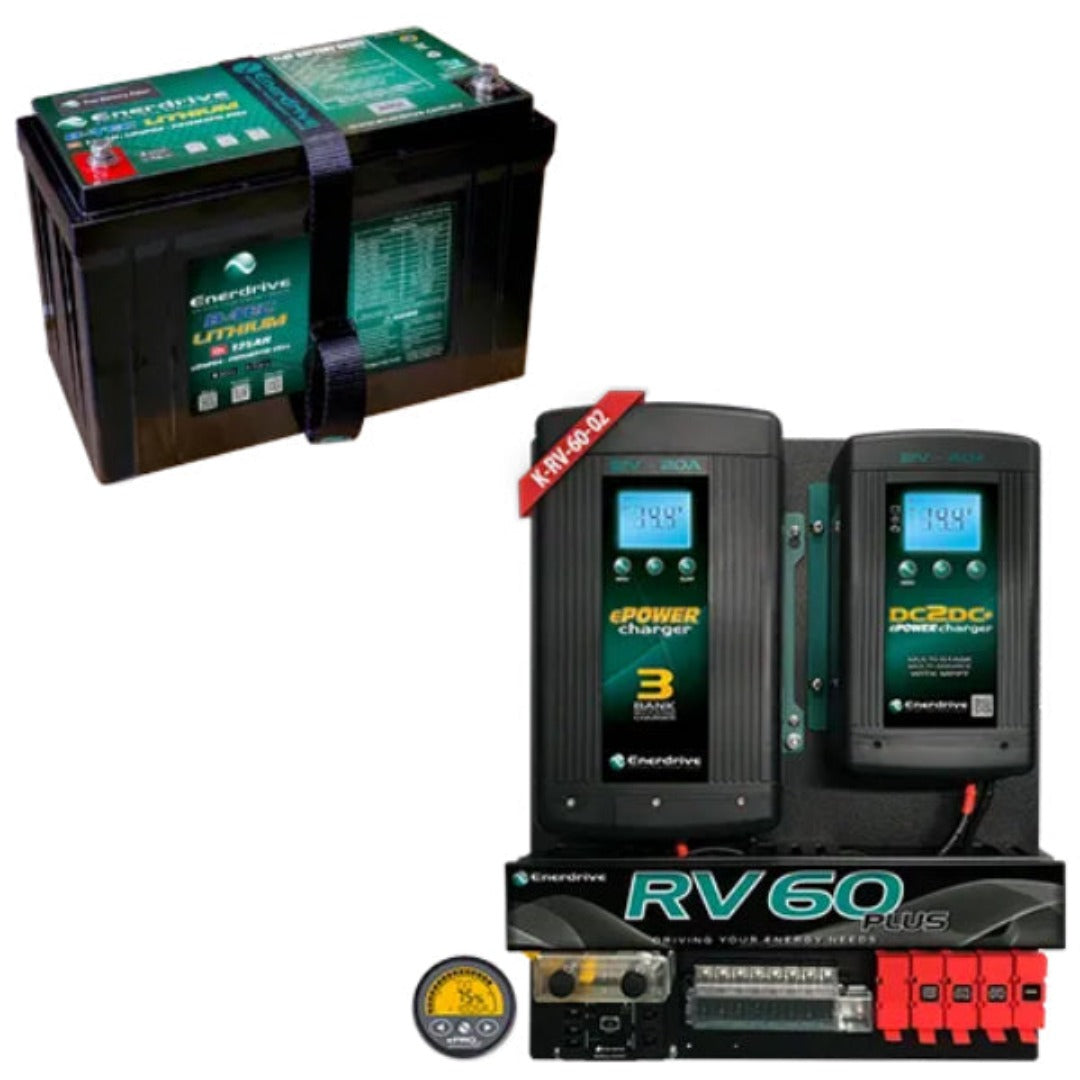

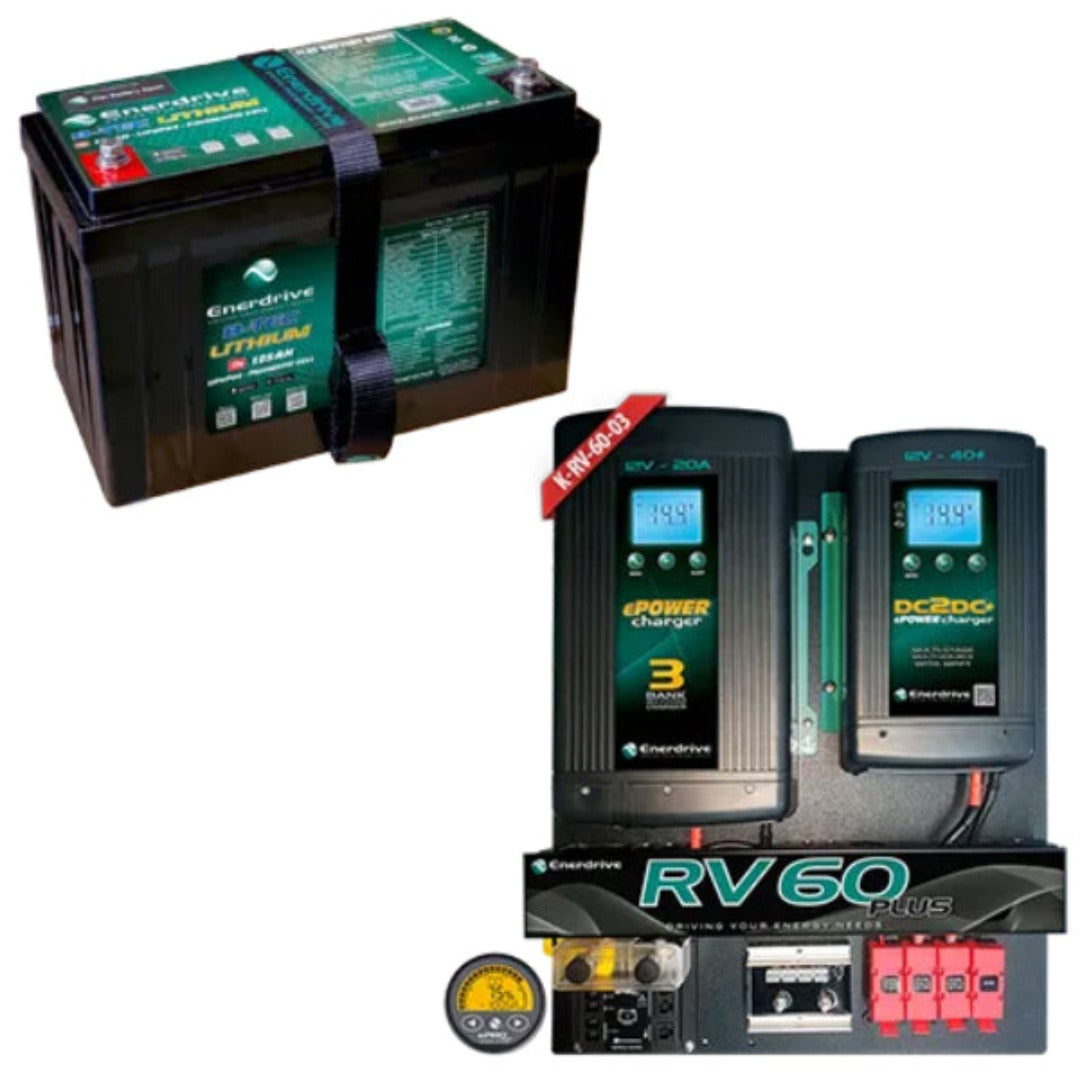

Enerdrive RV60 DIY Installation Kit with 40A DC2DC & 20A AC Battery Charger and LiFePO4 Lithium Battery. Introducing Enerdrives RV Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All RV boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Enerdrive 12V 100Ah eLITE Lithium Battery
The new Enerdrive 12v 100Ah eLITE Lithium Battery has been designed as an “entry-level” lithium battery for the customer who wants to get into the lithium market without having to spend big. This unit is a stripped-back version of the ever-popular 100Ah B-TEC Lithium battery but, without all the bells and whistles.
Enerdrive ePOWER B-TEC 12V 125Ah Lithium Battery
The Enerdrive B-TEC 12V 125Ah G2 Lithium Battery now comes with a Battery Strap.
Enerdrive is proud to introduce the new ePOWER B-TEC 125Ah Lithium Battery with Smart Phone Monitoring Technology.
Enerdrive ePOWER B-TEC 200Ah Lithium Battery
The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty. The ePOWER B-TEC is designed and intended for use in deep cycle applications where a single battery is required that meets the amp-hour capacity.
Smart Phone Monitoring System
The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. You can monitor the following information by downloading the app on your Android™ or Apple® smartphone or tablet device;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities;
- 100Ah Lithium = 160Ah AGM
- 125Ah Lithium = 200Ah AGM
- 200Ah Lithium = 320Ah AGM
Installation Kit includes;
- 1 x DC2DC40+ Charger for Vehicle/Solar charge.
- 1 x EN31220 20A AC charger for Mains/Generator charge.
- 1 x ePRO Battery Monitor.
- 1 x Low Battery Cutout Controlled Via Battery Monitor.
- Fusing for both AC & DC Chargers & Monitoring.
- Fusing for DC Output to Distribution/Battery.
Options:
- Enerdrive eLITE 12V 100Ah Lithium Battery (EPL-100-12VLITE)
- Enerdrive ePOWER B-TEC 125Ah G2 Lithium Battery with a battery strap (EPL-125BT-12V)
- Enerdrive ePOWER B-TEC 200Ah Lithium Battery (EPL-200BT-12V-G2)
| RV60 Kits Includes: | K-RV60 | K-RV60-01 | K-RV60-02 | K-RV60-03 |
| ePOWER AC 20Amp 230v Charger | * | * | * | * |
| ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * | * | * | * |
|
ePRO Plus 500A Battery Monitor with Remote Display,
with Audible & Visual Alarm |
* | * | * | |
| ePOWER AC Charger 30A Output Fuse Connection | * | * | * | * |
| ePOWER DC2DC 60A Output Fuse Connection | * | * | * | * |
| 50A Load Output Fuse Connection | * | * | * | * |
| 8 Circuit "Wedge" Fuse Block | * | |||
|
Low Battery Cutout
(Programmed in ePRO Plus via Users Data Input) |
* | |||
| 12mm Black Plastic Mounting Board. Water & Rot Resistance | * | * | * | * |
| Dimensions (LxWxD) mm | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 |
| (*) Indicates Standard Fitment | ||||
SPECIFICATIONS
| Enerdrive RV60 KIT | |
| Charger Mode Output Voltage | 13.8V - 15.5V (DC Charger) 14.2V - 15.5V (AC Charger) |
| Float | 13.0V - 13.8V (DC Charger) 13.4V - 13.8V (AC Charger) |
| Equalize | 15.5V (DC Charger) 16V (AC Charger) |
| Amps | 20A (AC Charger) 40A (DC Charger & Low Battery Cutout) 30A per circuit,100A per block (Fuse Block) |
| DC Output |
Single (DC Charger)
Three (1 fully independent, 2 common with diode isolation) (AC Charger) |
| Selectable Battery Type |
Gel, AGM, Flooded, Lithium, Program (AC & DC Charger)
|
| Standby Current | < 2 mA (AC Charger) |
| AC Input Voltage | 90 to 265 VAC (AC Charger) |
| AC Input Operating Range |
207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Charger)
|
| AC Input Frequency Range | 47 – 63 Hz (AC Charger) |
| Power consumption (DC 12V) | 350W (Full Load) (AC Charger) |
| Power Factor Correction | Yes (AC Charger) |
| Charger Efficiency | 95% (DC Charger) > 82% (AC Charger) |
| Reverse Polarity | Yes, (with user replaceable fuse/s) (AC Charger) |
| Over Charge | Yes, unit shutdown (AC Charger) |
| Over Temperature Protection | Yes, unit de-rated and shutdown (AC Charger) |
| Cooling |
Forced air ventilation (thermo controlled fan) (AC Charger)
|
| Output Short Circuit | Yes, (with user replaceable fuse/s) (AC Charger) |
| Temperature Setting |
Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Charger)
Hot, Normal, Cold (no sensor connected) (AC Charger) |
| Battery Temp Sensor Port |
RJ12 (standard battery temp. sensor supplied) (AC Charger)
|
| LCD Display |
Charging status, Battery Voltage, Output Current & Fault Codes. (AC Charger)
|
| AC Input Connection |
IEC with Supplied 1.2M Power Lead (AC Charger)
|
| DC Output Connection |
Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Charger)
|
| DC Output Ground |
Single Heavy Duty Common Ground Stud (AC Charger)
|
| Storage Range (temp) | -40° to 70° C (AC Charger) |
| Operating Range (temp) | -20° to 60° C (AC Charger) |
| Humidity |
5-95%, relative humidity non-condensing (AC Charger)
|
| Ingress Protection |
IP32 (Basic drip-proof in vertical orientation) (AC Charger)
|
| Output Current Rating | 40Amps (DC Charger) |
| Output System Voltage | 12V (AC & DC Charger) |
| Voltage | Max. 32V DC (Fuse Block) 12/24V (Low Battery Cutout) |
| Dimensions (LxWxH mm) | 242 x 172 x 74mm (DC Charger) 295 x 206 x 86 mm (AC Charger) 65 x 41 x 82 mm (Low Battery Cutout) |
| Dimensions (LxWxH mm) | 480 x 400 x 100 mm (KRV60 Unit) |
| Enerdrive Lithium Battery | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah (EPL-100-12VLITE) 125Ah (EPL-125BT-12V) 200Ah (EPL-200BT-12V-G2) |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Normal Charge Voltage CV/CC* | 14.20 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.60V |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Charge Current | 80A @ 25°C for 30mins (EPL-100-12VLITE) 60A @ 25°C for 30mins (EPL-125BT-12V) 150A @ 25°C for 30mins (EPL-200BT-12V-G2) |
| Recommended Charge Current for Maximum Life | ≤33A (EPL-100-12VLITE) ≤ 40A (EPL-125BT-12V) ≤ 60A (EPL-200BT-12V-G2) |
| Dimensions (L x W x H) | 310 x 170 x 225 mm 318 x 165 x 215 mm 505 x 172.5 x 265 mm |
| Weight | 12 Kg (EPL-100-12VLITE) 15 Kg (EPL-125BT-12V) 25 Kg (EPL-200BT-12V-G2) |
WARRANTY
* Availability Subject to Individual Items.
** This bundle is made to order. Please give us at least 3 weeks to prepare.
*** Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
