Description
FEATURES
- New design BMS
- Max discharge current 250A (15mins) - 200A continuous
- Max charge current 190A (30mins)
- Can be connected in parallel (up to 4 batteries)
- Built in flat battery reset button
- Includes mounting tray and 2 straps
- Communication ports (RS485) for future integration
- 5 year warranty & lifetime tech support
Smart Phone Monitoring System
The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities:
- 100Ah Lithium = 160Ah AGM
- 125Ah Lithium = 200Ah AGM
- 200Ah Lithium G2 = 320Ah AGM
- 300Ah Lithium G2 = 480Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

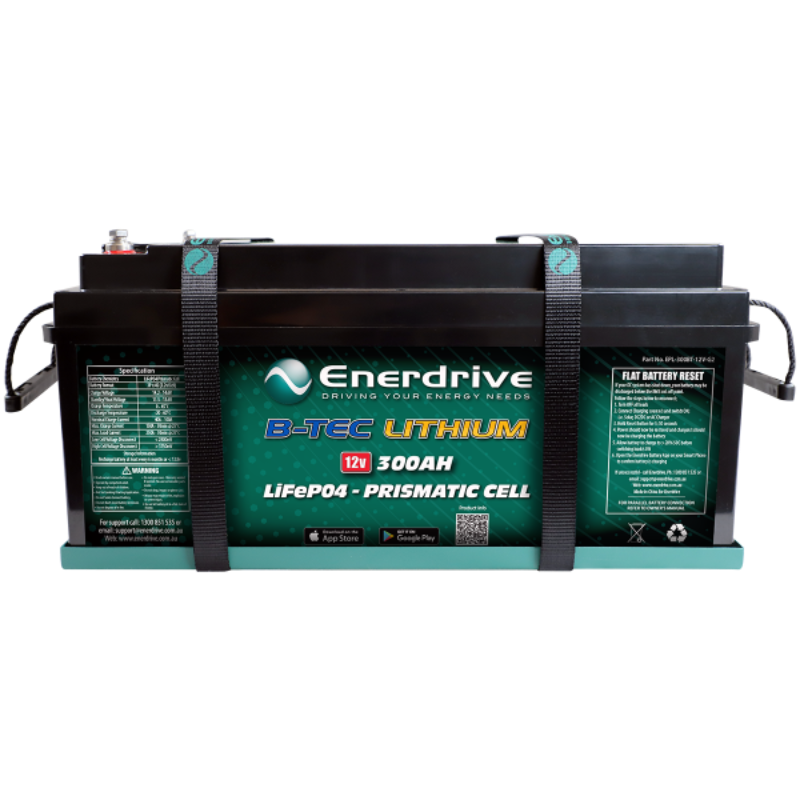

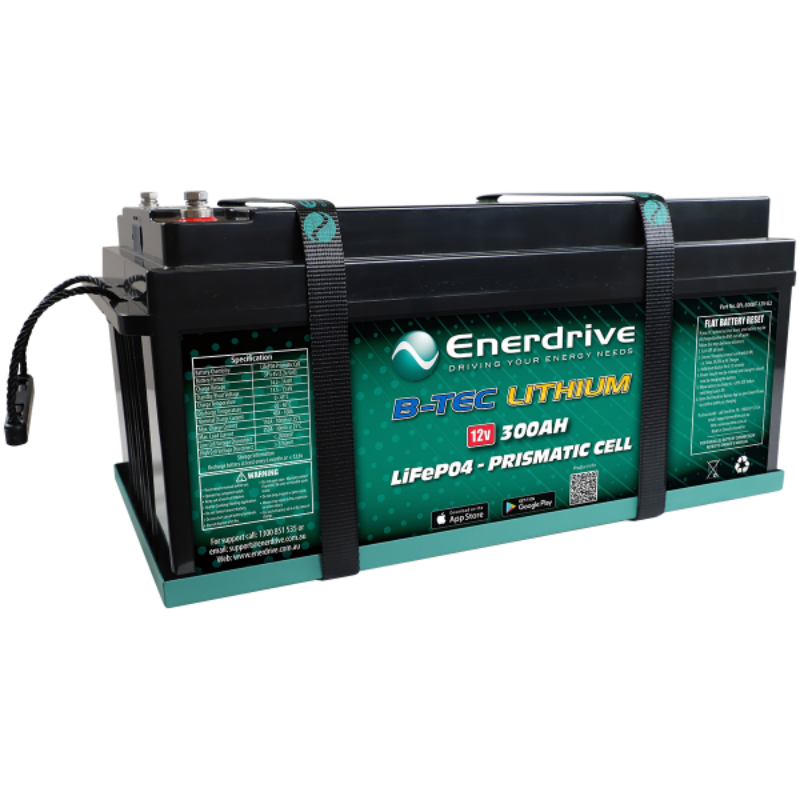

The New Generation 2 B-TEC
So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.
Also included for free is a metal battery tray and hold down strap to complete the installation process.
The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.
SPECIFICATIONS
| Product Name | Enerdrive ePOWER B-TEC 300Ah Lithium Battery, 5 Year Warranty |
| SKU | EPL-300BT-12V-G2 |
| GTIN (Global Trade Item Number) | 9342616019924 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Batteries |
| Amp Hours (Ah) | 300.0 Ah |
| Battery Voltage | 12V |
| Float | 13.50 - 13.80V |
| Model | EPL-300BT-12V |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 300Ah |
| Total Charge Current | Max 190A @ 25°C for 30mins |
| Short circuit protection | Auto release after 5s |
| Temperature Range | ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.40 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.80V |
| Maximum Charge Current | 190A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | 80 ~ 120A |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge Current | 250A @ 25˚C ±5˚C for 15 mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤ 11.20V |
| Dimensions | 519 x 273 x 222 mm (L x W x H) |
| Net Weight (kg) | 38.2 Kg |
| Manufacturers Warranty | 5 Years |
WARRANTY
5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.
NOTE:
* Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
