Description
Enerdrive ePOWER B-TEC 200Ah Lithium Battery (EPL-200BT-12V-G2)
The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty. The ePOWER B-TEC is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
- BMS restart button for easy recovery.
- RS485 communications port for advanced system integration.
- Raised terminals for 360-degree cable connections.
- Re-designed battery case for easy serviceability.
- Battery box and straps INCLUDED - nothing more to buy!
- Product dimensions 505 x 173 x 265 mm
FEATURES
Smart Phone Monitoring System
The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System
The battery is also equipped with an internal LiFePO4 Battery Management System (BMS) that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities;
-
200Ah Lithium = 360Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
Enerdrive ePOWER 12V 40A DC to DC Battery Charger (EN3DC40+)
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.
EXPERT TIP: The Enerdrive 50Amp, 60Amp & 70Amp breakers are common accessories suitable for the Enerdrive EN3DC40+ 40A DC to DC charger. Additionally, the 3 pre-wired & fused charging cables are also a great extra accessories, see manuals & drawings for further information. All the accessories are available in the Accessory List above as optional extras.
- Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included in charger for more accurate battery charging

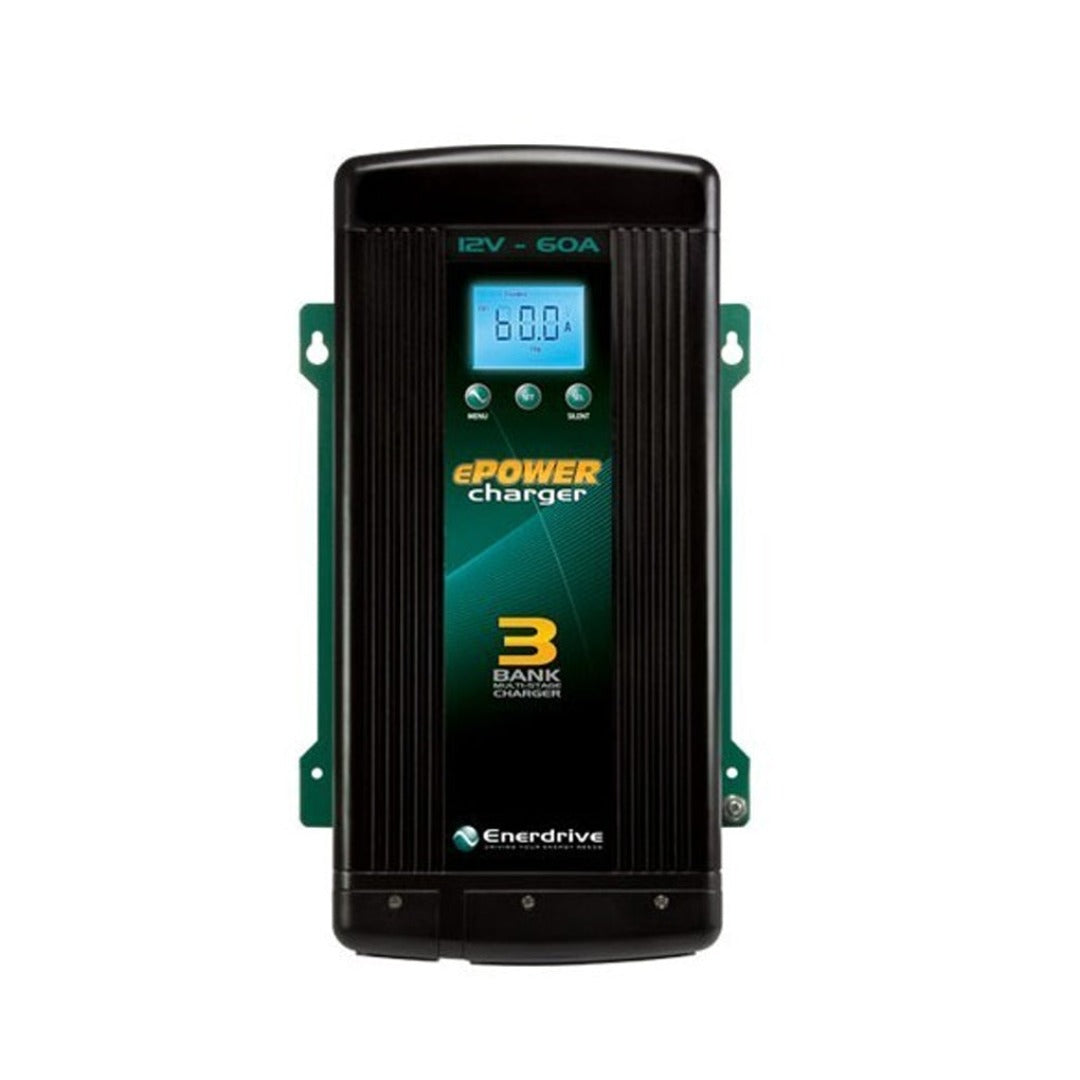

Enerdrive ePOWER 60A Battery Charger (EN31260)
The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).
- Multistage Charging
- Separate Battery Banks
- Programmable
- Current Control
- Smart Charging
- Wide AC Input Range
- LED Display
- Silent Mode
- Temperature Sensor
PACKAGE INCLUDED
- Enerdrive ePOWER B-TEC 200Ah Lithium Battery (EPL-200BT-12V-G2)
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger (EN3DC40+)
- Enerdrive ePOWER 60A Battery Charger (EN31260)
SPECIFICATIONS
| Model | EPL-200BT-12V-G2 |
| GTIN (Global Trade Item Number) | 9342616019832 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Batteries |
| Amp Hours (Ah) | 200.0 Ah |
| Battery Voltage | 12V |
| Float | 13.50 - 13.80V |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Total Charge Current | Max 150A @ 25°C for 30mins |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.40 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.80V |
| Maximum Charge Current | 150A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | ≤ 60A |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge Current | 200A @ 25°C ± 5°C for 30mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤ 11.20V |
| Dimensions | 505 x 172.5 x 265 mm (L x W x H) |
| Net Weight (kg) | 25.0 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EN3DC40+ |
| GTIN (Global Trade Item Number) | 9342616000526 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Battery Chargers |
| Product Type | 12v 40Amp DC2DC Battery Charger |
| Output Current Rating (Amps) | 40.0 Amps |
| Charger Mode Output Voltage | 13.8V - 15.5V |
| Float | 13.0V - 13.8V |
| Equalize | 15.5V |
| Charging Control | Three Stages |
| DC Output | Single |
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
| Charger Efficiency | 95% |
| Temperature Setting |
Low/ Normal/ High (Battery Temperature Sensor Standard)
|
| Output System Voltage | 12V |
| Dimensions | 242 x 172 x 74mm (L x W x H) |
| Net Weight (kg) | 1.9 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EN31260 |
| Brand | Enerdrive |
| GTIN | 9342616000267 |
| Product Category | Battery Chargers |
| Voltage | 12V |
| Output Current Rating (Amps) | 60 Ah |
| Weight | 4 Kg |
| Dimensions (L x W x H) | 356 x 206 x 99 mm |
WARRANTY
5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.NOTE:
