Description
FEATURES

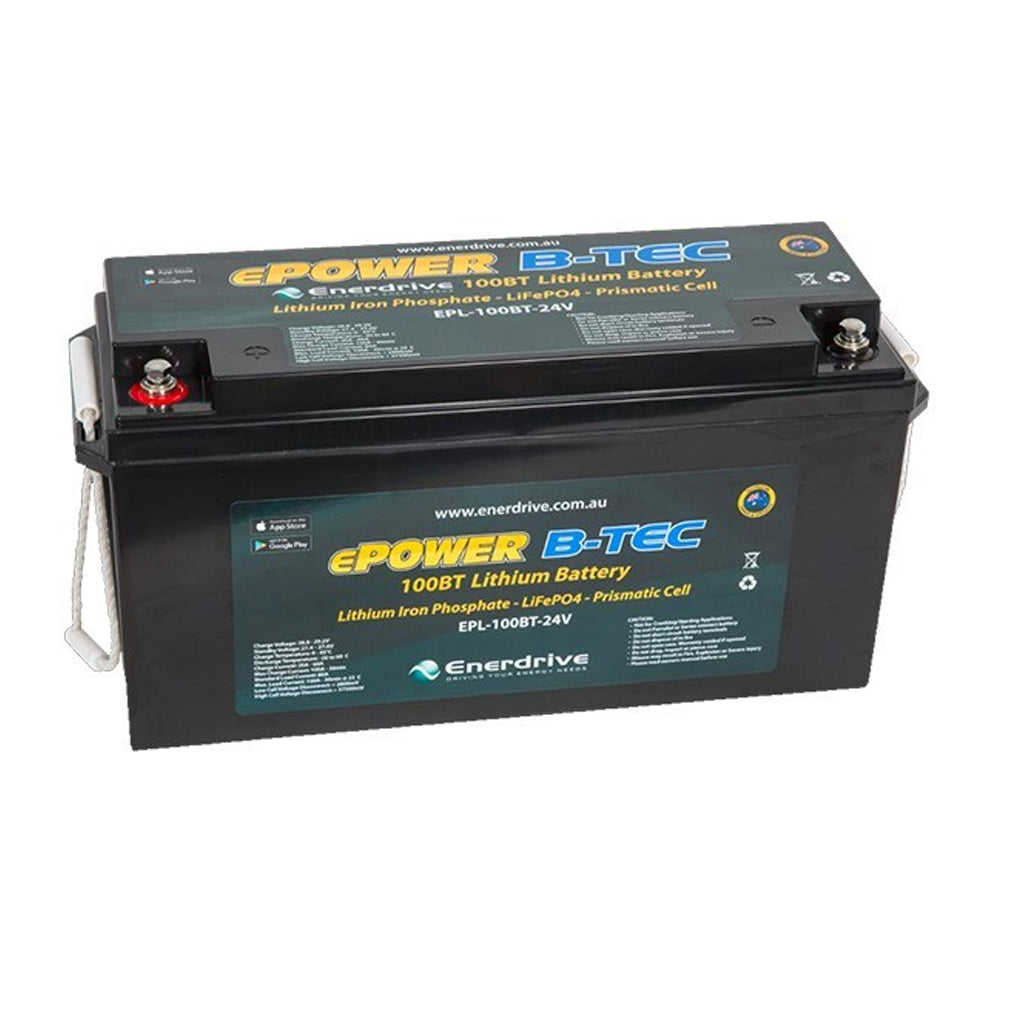

Enerdrive ePOWER B-TEC 24V 100Ah Lithium Battery
The ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp-hour capacity.
Smart Phone Monitoring System
The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities;
100Ah Lithium = 160Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

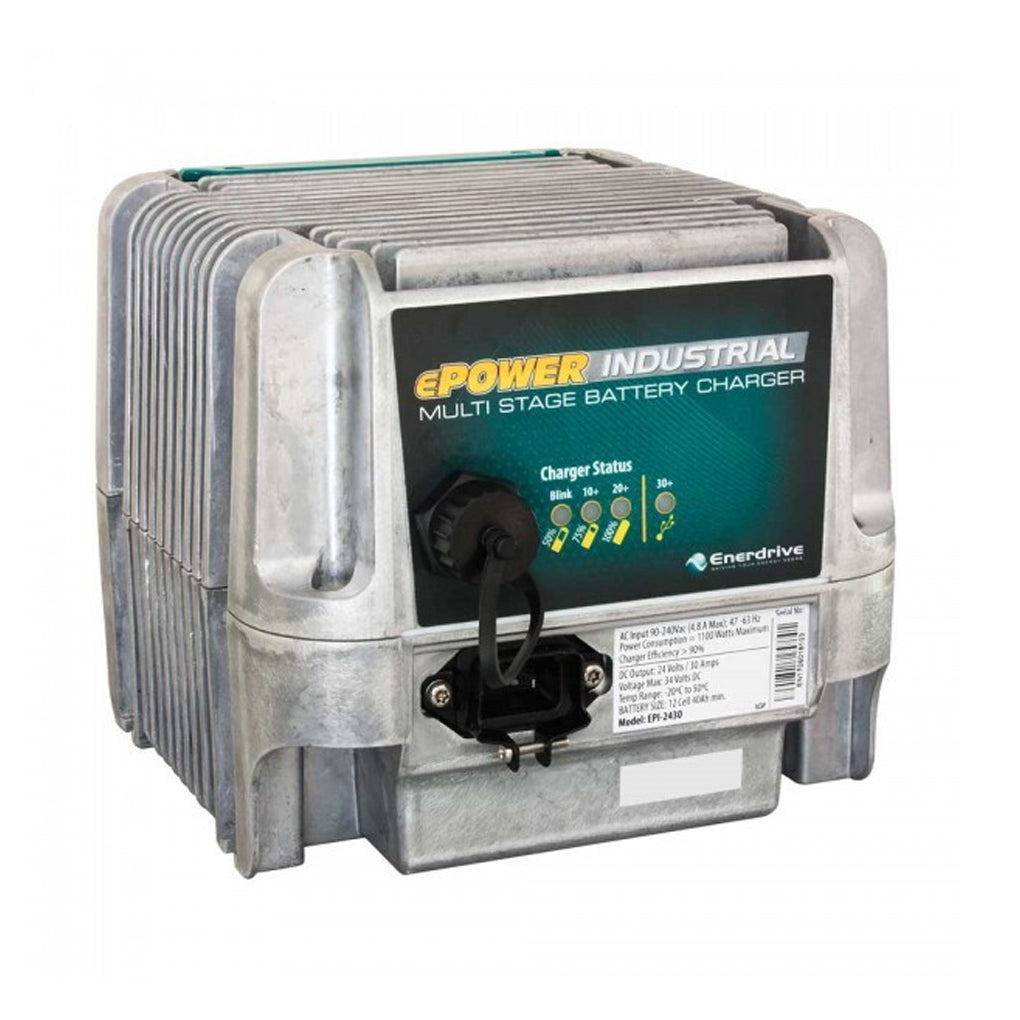

Enerdrive ePOWER 24V 30A Industrial Battery Charger
Enerdrive’s ePOWER Industrial Battery Charger is built to withstand vibration and exposure to dust or moisture typically found when used in typical on-board or industrial applications. Charge Algorithm updates and downloadable charger data logs are easily accessible via the use of a USB memory stick.
- Extremely Durable
- Programmable-Charging-USB Programmable Charging
- Battery Charging Flexibility
Application:
- Electric vehicles
- Fork lifts
- Floor cleaning machines
- Golf carts
- Electric mobility scooters

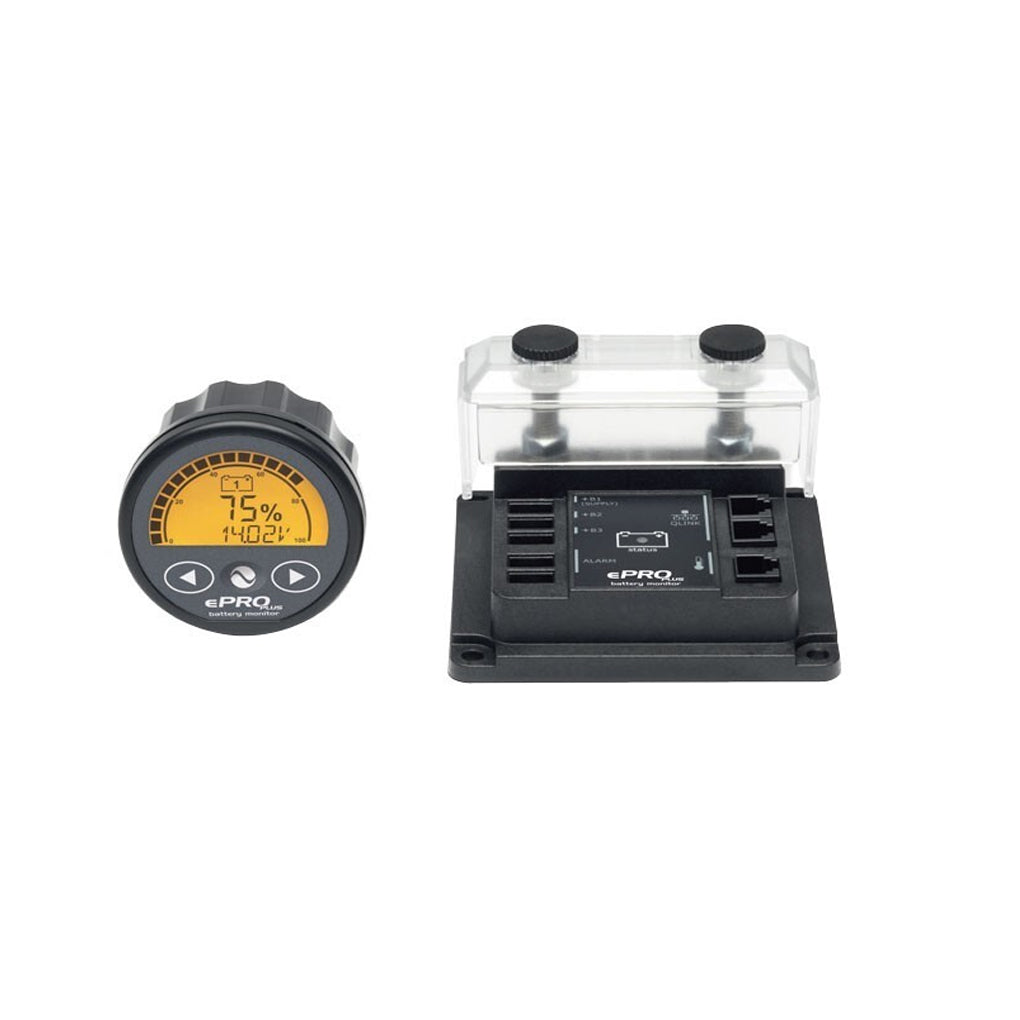

Enerdrive ePRO PLUS Battery Monitor
The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products. The ePRO PLUS can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control.
- Complete battery status information at a glance
- Supports up to three battery banks (12V, 24V and 48V)
- ‘Plug and Play’ installation
- Perfect integration with Enerdrive DC Modular products

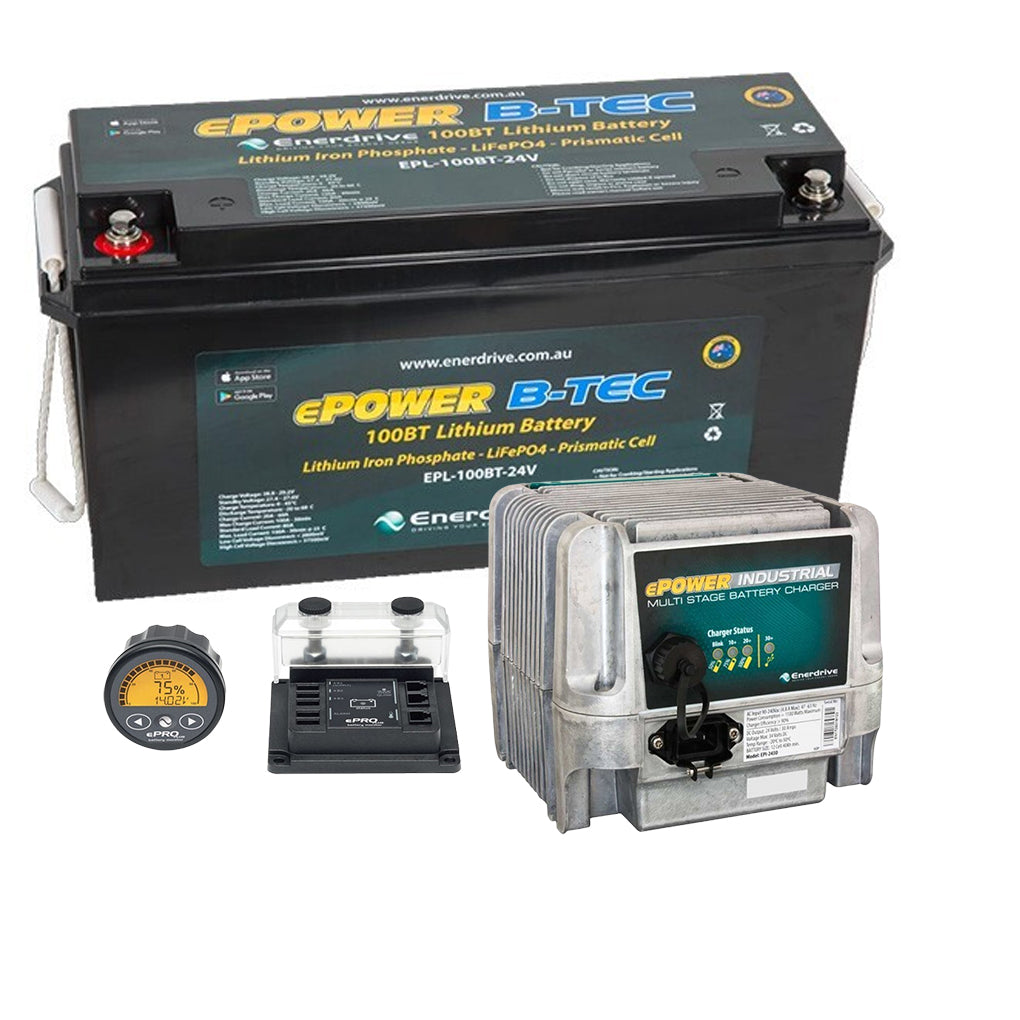

PACKAGE INCLUDED
- Enerdrive ePOWER B-TEC 24V 100Ah Lithium Battery EPL-100BT-24V
- Enerdrive ePOWER 24V 30A Industrial Battery Charger EPI-2430
- Enerdrive ePRO PLUS Battery Monitor - EN55050
SPECIFICATIONS
| Model | EPL-100BT-24V |
| GTIN (Global Trade Item Number) | 9342616019665 |
| Brands | Enerdrive |
| Product Category | Batteries |
| Amp Hours (Ah) | 100.0 Ah |
| Battery Voltage | 24V |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 28.80 ̴ 29.20V |
| Standby (Float) Voltage | 27.00 ̴ 27.60V |
| Maximum Charge Current | 50A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | ≤ 33A |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 22.00 ̴ 29.20V |
| Maximum Discharge Current | 100A @ 25°C ± 5°C for 30mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤ 22.40V |
| Dimensions | 485 x 170 x 245 mm (L x W x H) |
| Net Weight (kg) | 25.0 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EPI-2430 |
| DC Output | |
| Nominal Voltage (V) | 24V |
| Maximum Voltage (V) | 34V |
| Maximum Current (A) | 30A |
| Applicable to battery |
AGM, Flooded, GEL, Lithium & Custom Profiles
|
| Reverse Polarity | Electronic Protection Auto Reset |
| Short Circuit | Electronic Protection Auto Reset |
| AC Input | |
| Voltage Range (V) | 100-240V |
| Frequency (Hz) | 45-60Hz |
|
Maximum Current (A)
|
MAX Power 850W |
| 8.5A @100V | |
| 4.25A @230V | |
| Full Load AC Power Factor | >0.98 |
| Other Specifications | |
| Dimensions | 20.7 x 18.0 x 16.0 cm |
| Weight | 4.6kg |
| Operating Temperature | -30°C ~ +50°C |
| Storage Temperature | -40°C ~ +70°C |
WARRANTY
5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.
NOTE:
* Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
