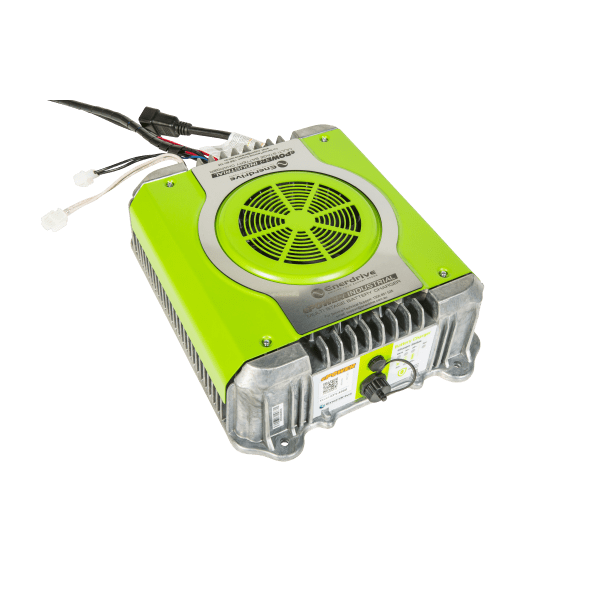

Enerdrive’s ePOWER Industrial Battery Charger is built to withstand vibration and exposure to dust or moisture typically found when used in typical on-board or industrial applications. Charge Algorithm updates and downloadable charger data logs are easily accessible via the use of a USB memory stick.
A fully sealed die cast aluminum enclosure protects the charger from fluids and other contaminants. The design of the charger enclosure mirrors the internal components, protecting against shock and vibration. (IP67 if using AC input seal).
A USB host port allows for charger data logging downloads and charge algorithm uploads using a commonly available USB flash drive. This information can be used by OEMs to improve products, limit battery warranty claims and help technicians with troubleshooting issues.
Battery Charging Flexibility.
|Nominal Voltage (V)||24V||36V||48V||48V||48V|
|Maximum Voltage (V)||34V||51V||68V||68V||68V|
|Maximum Current (A)||30A||20A||15A||35A||60A|
|Applicable to battery||AGM, Flooded, GEL, Lithium & Custom Profiles|
|Reverse Polarity||Electronic Protection Auto Reset|
|Short Circuit||Electronic Protection Auto Reset|
|Voltage Range (V)||100-240V|
|Maximum Current (A)||MAX Power 850W||MAX Power 1985W||MAX Power 3400W|
|8.5A @100V||19.5A @100V||34A @100V|
|4.25A @230V||8.63A @230V||14.78A @230V|
|Full Load AC Power Factor||>0.98|
|Dimensions||20.7 x 18.0 x 16.0 cm||19.5 x 18.0 x 19.5 cm||35.9 x 28.0 x 10.7 cm|
|Operating Temperature||-30°C ~ +50°C|
|Storage Temperature||-40°C ~ +70°C|
5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.
