Description
FEATURES
Enerdrive ePOWER B-TEC 200Ah Lithium Battery (EPL-200BT-12V-G2)
- RS485 communications port for advanced system integration.
- Raised terminals for 360 degree cable connections.
- Battery box and straps INCLUDED - nothing more to buy!
Smart Phone Monitoring System
The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information

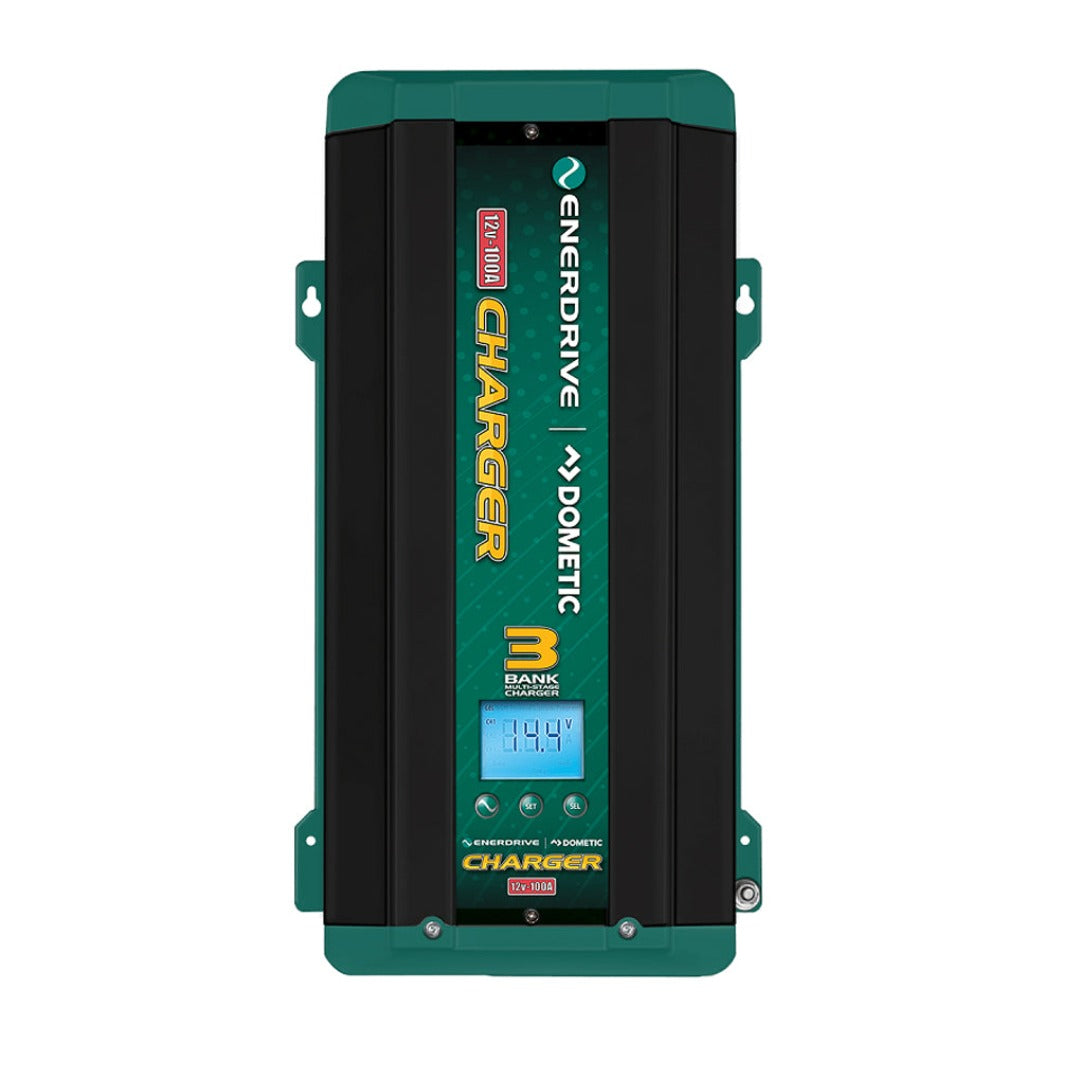

Enerdrive ePOWER 100amp / 12v Smart Charger - Three Output (EN312100)
- Multistage Charging
- Separate Battery Banks
- Programmable
- Current Control
- Smart Charging
- Wide AC Input Range
- LED Display
- Silent Mode
- Temperature Sensor
- 5 Year Warranty from an Australian company
Enerdrive ePOWER 12V 40A DC to DC Battery Charger (EN3DC40+)
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.
- Two totally independent DC
- DC M6 screw terminals
- A dedicated (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display
- Temperature sensor included in charger

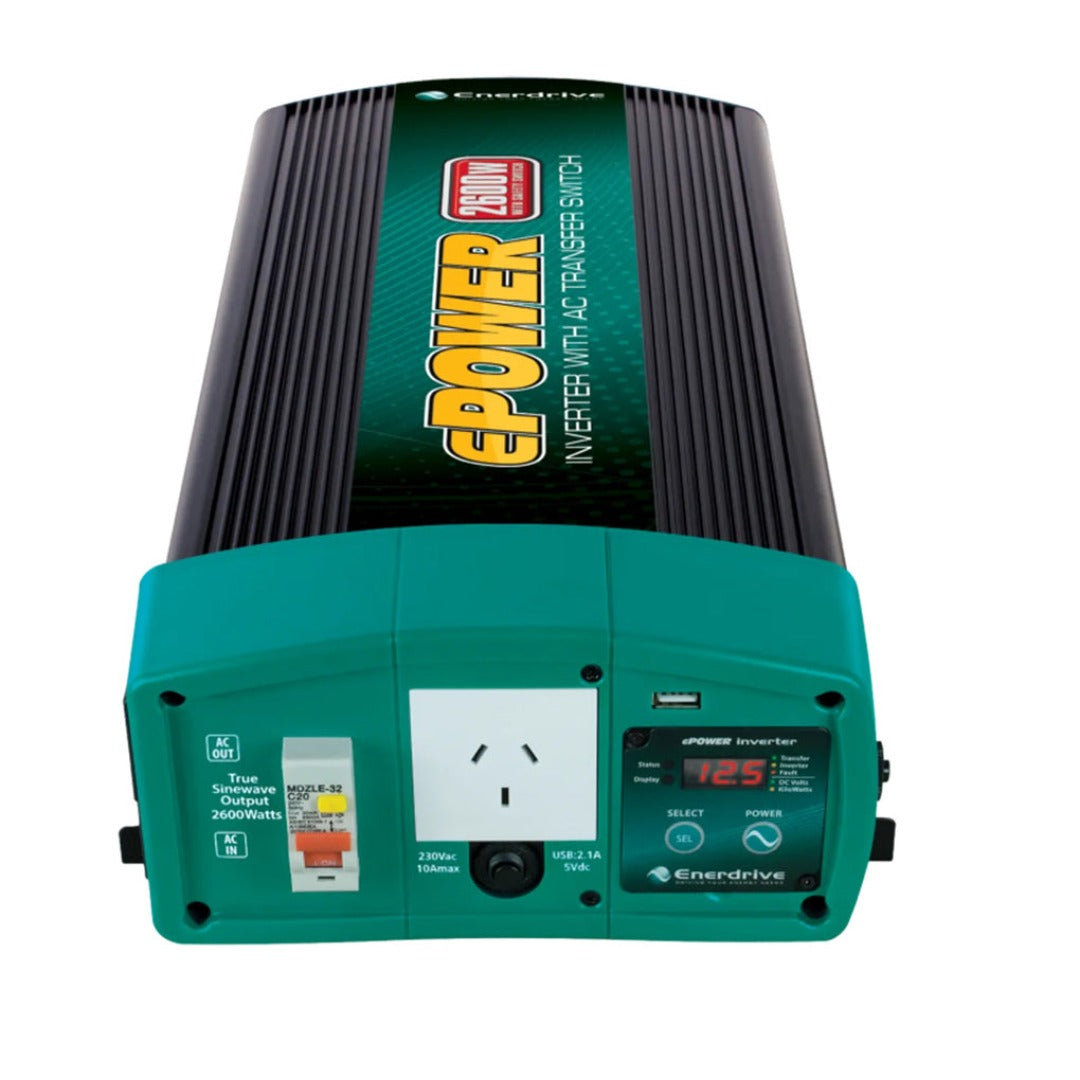

Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch (EN1226S-X)
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- PS6 Mode
- AC Transfer Cable
- 5 Year warranty
- New PS Mode

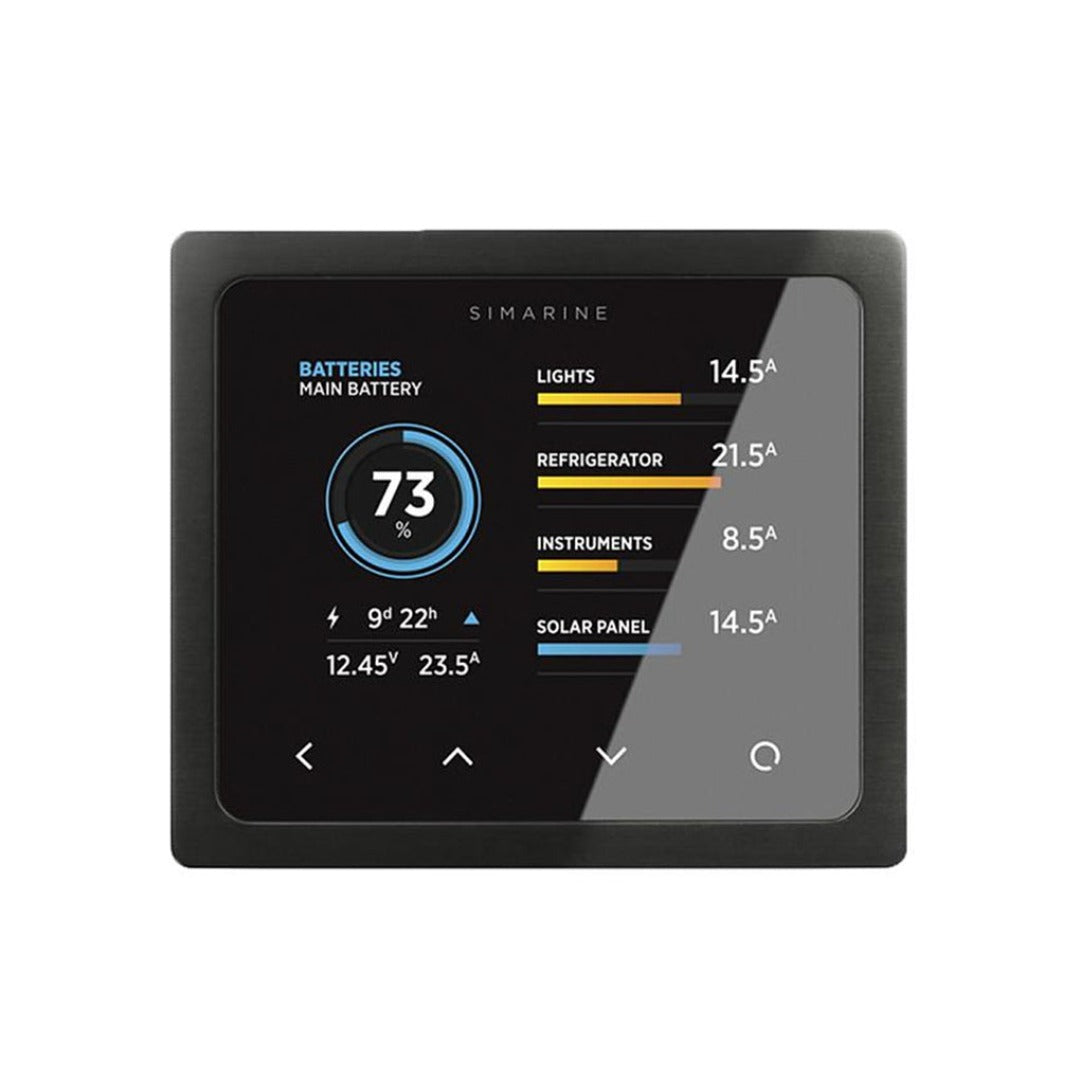

Simarine Pico+ Display Panel Mount Black (SI-PICO-3)
SIMARINE PICO sets new standards for marine battery and tank monitors in fields of design, functionality, connectivity and ease of use.
The Pico system provides you with a simple overview of all important details regarding your battery (voltage, current, amp hours, battery capacity in%, battery temperature) and also tank level and temperature indications.

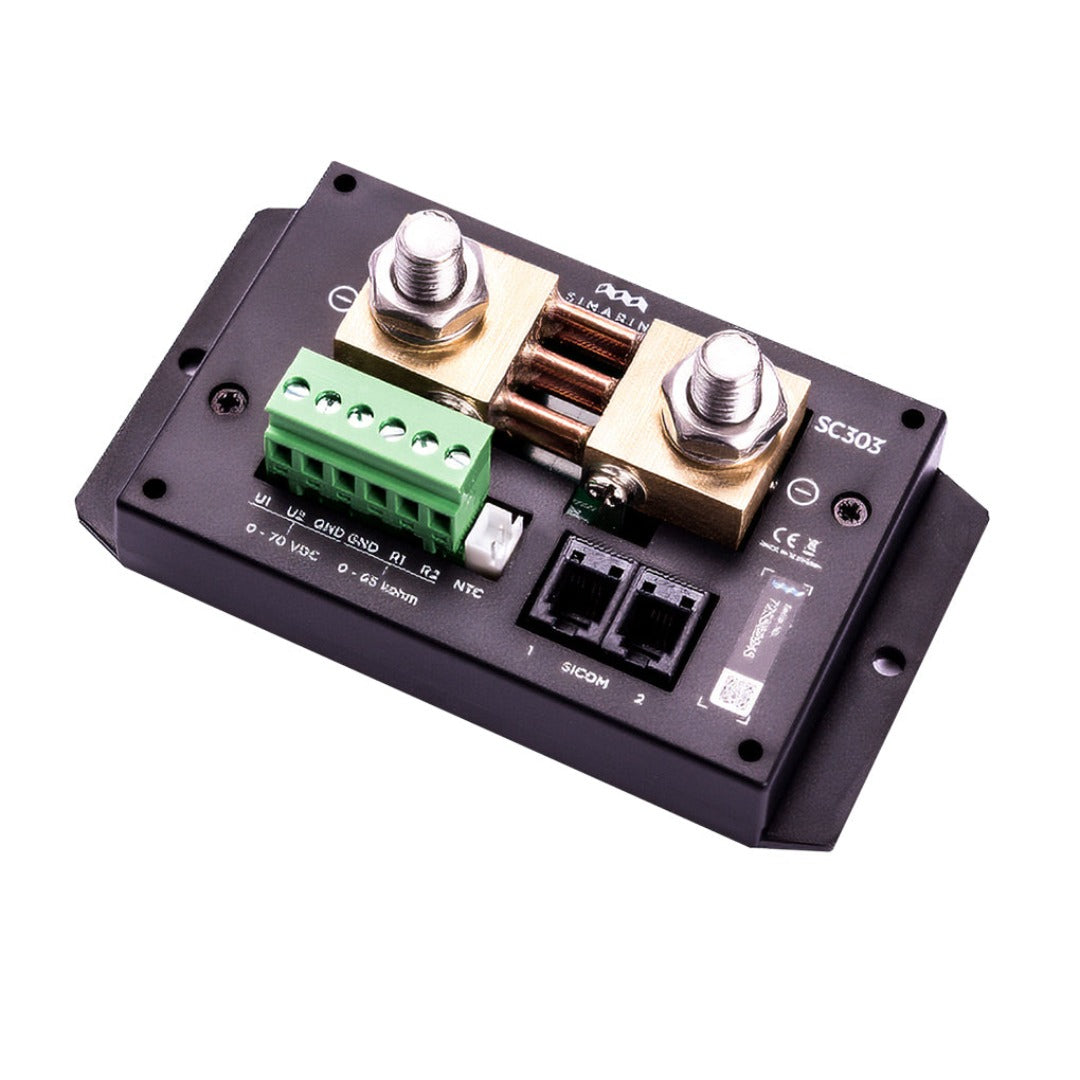

Simarine Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp (SI-SC303)
Innovative combination of Shunt and Tank/Temp level module. The SC303 & SC503 are an active combo shunt for PICO battery monitor with;
- 2 x Voltage Inputs
- 2 x Tank Level or Temperature Inputs
- 1 x Socket for Temperature Sensor with JST connector
- 1 x Current Sensor up to 300A (SC303) or 500A (SC503) for up to 75V systems.

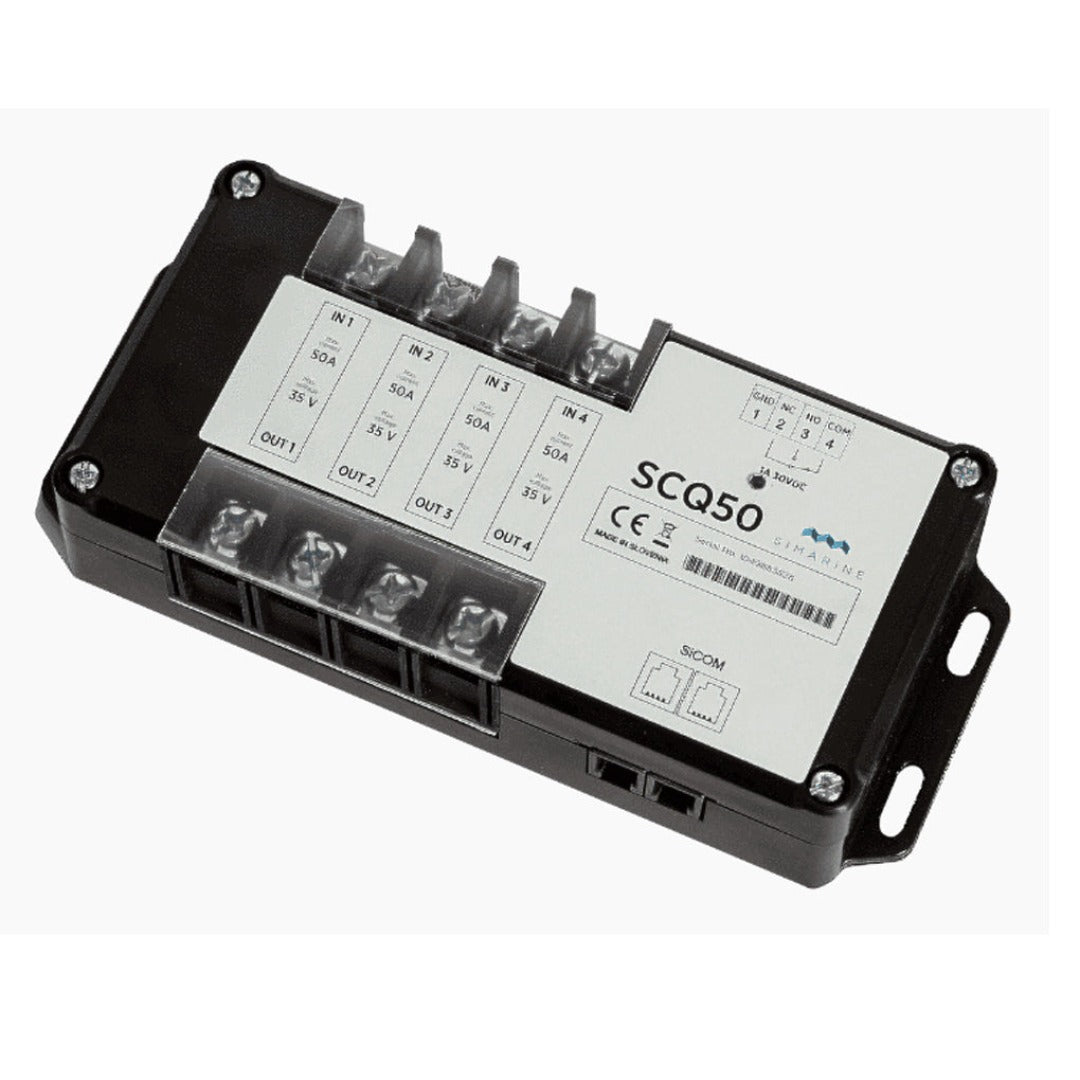

Simarine Quad Shunt Mod 4 x 50A Input Current & 1 x Relay Output 1A (SI-SCQ50)
SCQ50 is an innovative shunt module for monitoring individual consumers and generators with;
- 4 x 50A Current Sensors
- For 12v and 24v Systems
Connection Possibilities;
- Up To 4 x Consumer Devices
- Up To 4 x Generators
- Combination of 4 of both
- 1 x Relay Input
PACKAGE INCLUDED
- Enerdrive ePOWER B-TEC 200Ah Lithium Battery (EPL-200BT-12V-G2)
- Enerdrive ePOWER 100amp / 12v Smart Charger - Three Output (EN312100)
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger (EN3DC40+)
- Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch (EN1226S-X)
- Simarine Pico+ Display Panel Mount Black (SI-PICO-3)
- Simarine Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp (SI-SC303)
- Simarine Quad Shunt Mod 4 x 50A Input Current & 1 x Relay Output 1A (SI-SCQ50)
SPECIFICATIONS
| Model | EPL-200BT-12V-G2 |
| GTIN (Global Trade Item Number) | 9342616019832 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Batteries |
| Amp Hours (Ah) | 200.0 Ah |
| Battery Voltage | 12V |
| Float | 13.50 - 13.80V |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Total Charge Current | Max 150A @ 25°C for 30mins |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.40 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.80V |
| Maximum Charge Current | 150A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | ≤ 60A |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge Current | 200A @ 25°C ± 5°C for 30mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤ 11.20V |
| Dimensions | 505 x 172.5 x 265 mm (L x W x H) |
| Net Weight (kg) | 25.0 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EN312100 |
| Brand | Enerdrive |
| Product Category | Battery Chargers |
| Voltage | 12V |
| Output Current Rating (Amps) | 100 Amps |
| Weight | 6.4 kg |
| Dimensions ( L x W x H) | 425 x236 x 102.7mm |
| Model | EN3DC40+ |
| GTIN (Global Trade Item Number) | 9342616000526 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Battery Chargers |
| Product Type | 12v 40Amp DC2DC Battery Charger |
| Output Current Rating (Amps) | 40.0 Amps |
| Charger Mode Output Voltage | 13.8V - 15.5V |
| Float | 13.0V - 13.8V |
| Equalize | 15.5V |
| Charging Control | Three Stages |
| DC Output | Single |
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
| Charger Efficiency | 95% |
| Temperature Setting |
Low/ Normal/ High (Battery Temperature Sensor Standard)
|
| Output System Voltage | 12V |
| Dimensions | 242 x 172 x 74mm (L x W x H) |
| Net Weight (kg) | 1.9 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EN1226S-X |
| GTIN (Global Trade Item Number) | 9342616000335 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Power Inverters |
| Wattage | 2600W |
| Manufacturers Warranty | 5 Years |
| Output Voltage and Frequency | 230 Vac / 50 Hz |
| Input Voltage | 10.5 – 15.5 VDC |
| Operating Temperature Range | 0°C to 40°C |
| Humidity | 5-90% noncondensing |
| AC Output | 2600W, 11.3A |
| Output wave form | True Sinewave |
| No Load Battery Draw | < 1.5 ADC |
| Under Voltage Alarm | 11.0 / 12.1 VDC |
| Under Voltage Alarm Recovery | 11.3 / 12.3 VDC |
| Under Voltage Shutdown | 10.5 / 11.8 VDC |
| Under Voltage Shutdown Recovery | 12.0 / 12.6 VDC |
| Over Voltage Shutdown | 15.5 VDC |
| USB Socket Output | 5V, 750 mA |
| Storage Range (temp) | -20°C to 60°C |
| Operating Altitude | Up to 3000 meters above sea level |
| Product Dimensions (mm) LxWxH | 230 x 560 x 115 mm |
| Net Weight (kg) | 7.0 Kg |
NOTE:
* Availability Subject to Individual Items.
** This bundle is made to order. Please give us at least 3 weeks to prepare.
*** Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
