Enerdrive B-TEC 200Ah Battery 40A AC-DC2DC Charger 2600W Inverter ePRO+ K-200-04


Price:
Sale price$7,302.00

Description

FEATURES

Enerdrive ePOWER B-TEC 200Ah Lithium Battery (EPL-200BT-12V-G2)

  • RS485 communications port for advanced system integration.
  • Raised terminals for 360 degree cable connections.
  • Battery box and straps INCLUDED - nothing more to buy!
  • Product dimensions 505 x 173 x 265 mm

Smart Phone Monitoring System

The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

  • Battery Capacity
  • Battery Voltage
  • Battery Current (Amps)
  • Battery State of Charge (SOC)
  • Battery State of Health (SOH)
  • Battery Status
  • Individual Cell Voltage
  • Battery Temperature
  • Battery Cycles
  • Battery Alarms
  • Battery Event Information

Battery Management System

The battery is also equipped with an internal LiFePO4 Battery Management System (BMS) that can monitor and optimize each Prismatic cell within the battery during normal operation.

Size & Weight Savings
Lithium v AGM Capacities;

  • 200Ah Lithium = 360Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

    Enerdrive ePOWER 12V 40A Battery Charger (EN31240)

    The ePOWER 12V 40A Battery Charger is designed to quickly and accurately recharge your batteries using algorithms that help maximize service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.
    • Multistage Charging
    • Separate Battery Banks
    • Programmable
    • Current Control
    • Smart Charging
    • Wide AC Input Range
    • LED Display
    • Silent Mode
    • Temperature Sensor
    • 2 Year Warranty from an Australian company renowned for customer support.

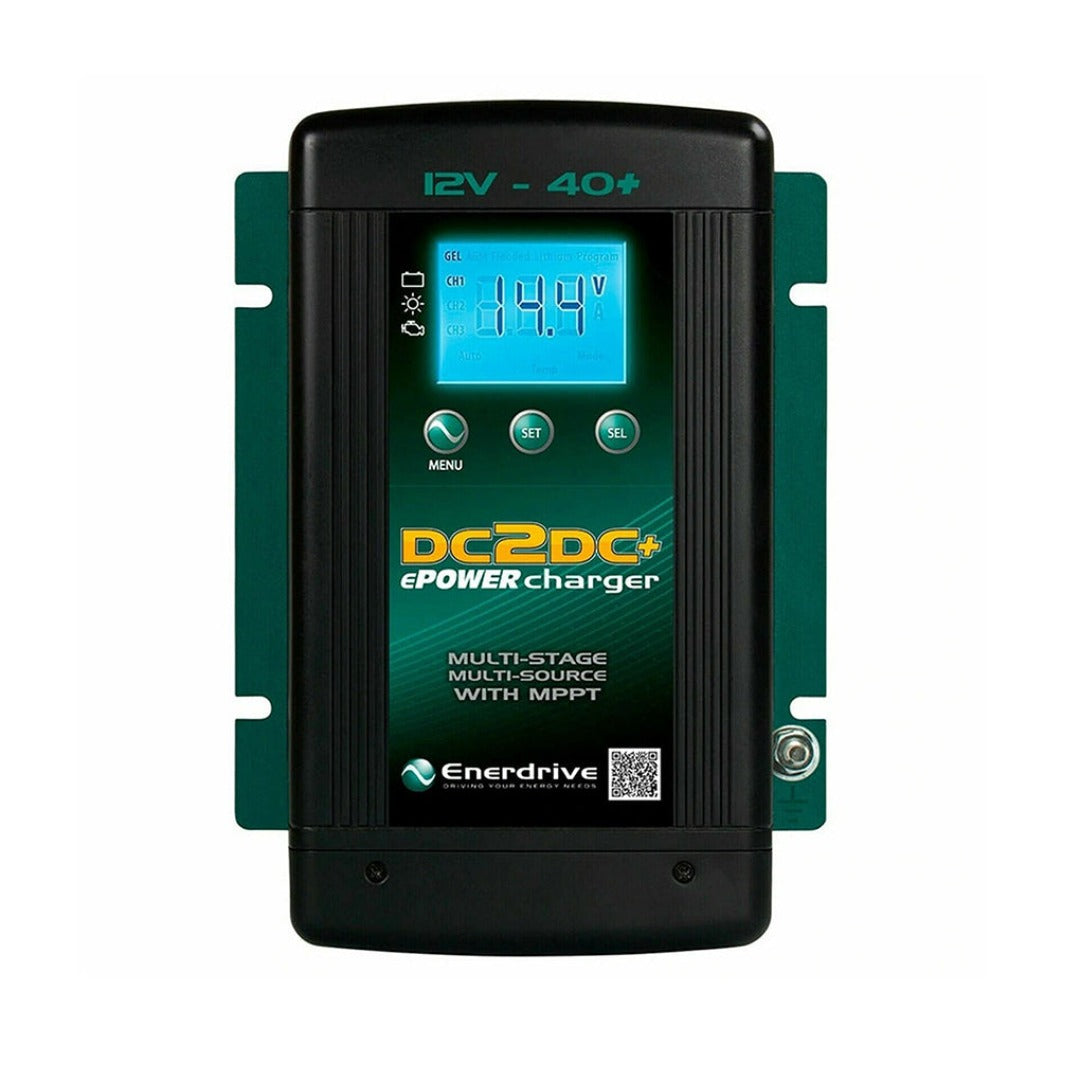

    Enerdrive ePOWER 12V 40A DC to DC Battery Charger (EN3DC40+)

    The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

    • Two totally independent DC
    • DC M6 screw terminals that will allow for large battery cable
    • A dedicated (MPPT) solar regulator
    • The same battery algorithms as included in our AC mains ePOWER battery charger
    • 40A output up to 40+°C with thermo controlled fan cooling
    • Fully programmable LCD
    • Temperature sensor included in charger

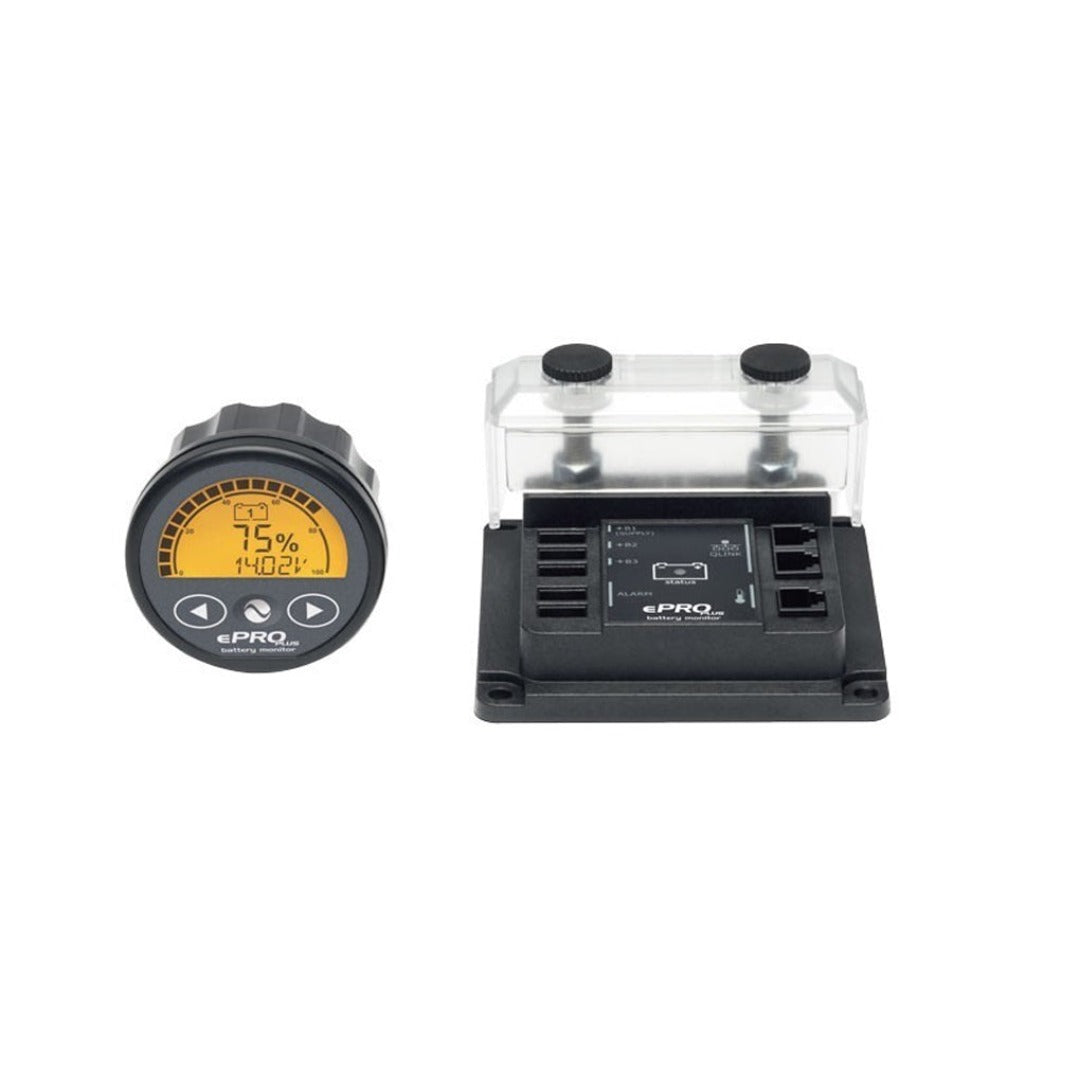

    Enerdrive ePRO PLUS Battery Monitor (EN55050)

    The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products. The ePRO PLUS can monitor up to three battery banks.

    • Complete battery status information at a glance
    • Supports up to three battery banks (12V, 24V and 48V)
    • ‘Plug and Play’ installation
    • Perfect integration with Enerdrive DC Modular products

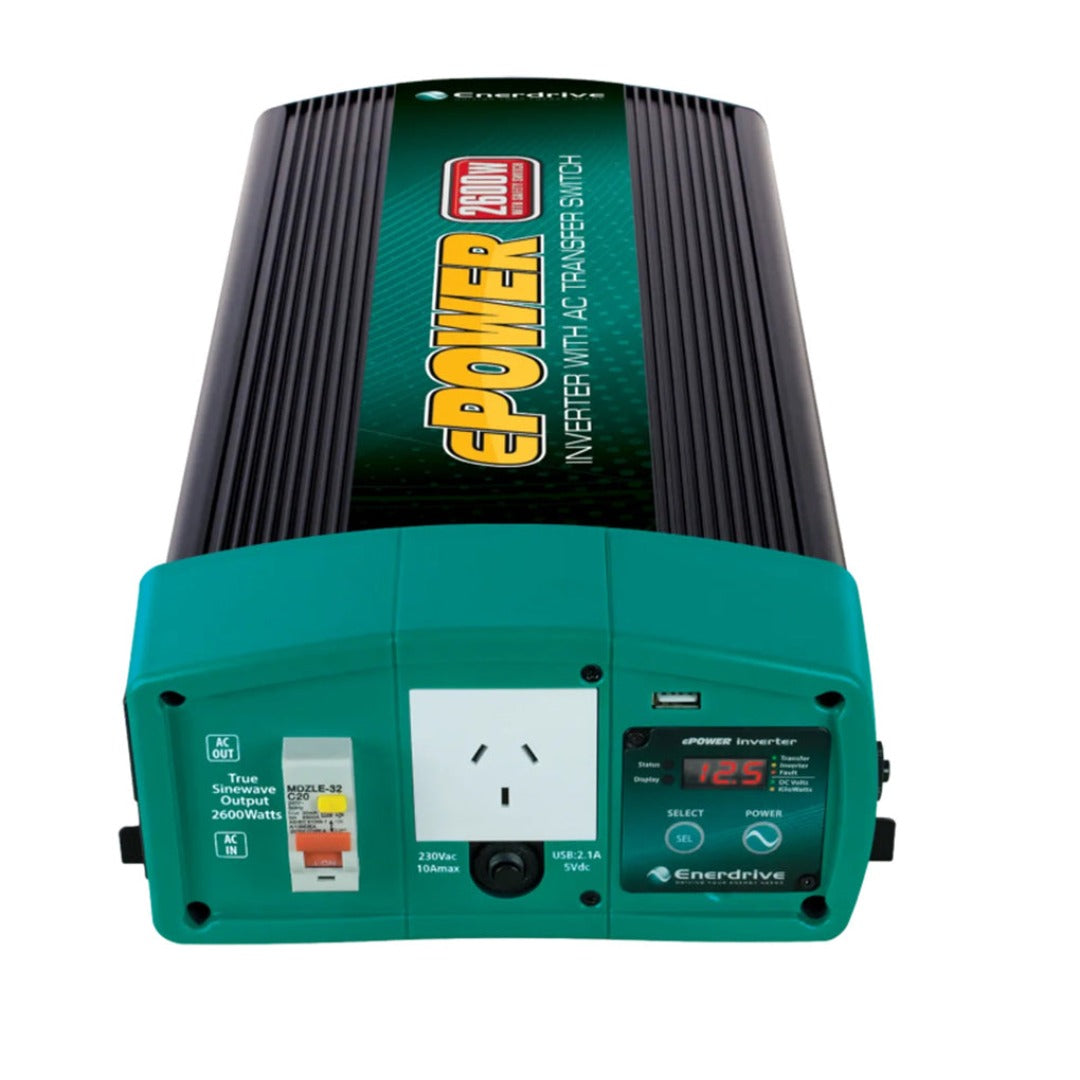

    Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch (EN1226S-X)

    • Seamless 16A AC Internal Transfer Switch
    • AC RCD/Safety Switch with test button
    • Removable LED Remote Control Display Panel
    • Regulated Pure Sine Wave Output
    • Silent Operation
    • Compact Size for Easy Installation
    • USB Port for charging USB devices
    • PS6 Mode
    • AC Transfer Cable
    • 5 Year warranty
    • New PS Mode

        PACKAGE INCLUDED

        • Enerdrive ePOWER B-TEC 200Ah Lithium Battery  (EPL-200BT-12V-G2)
        • Enerdrive ePOWER 12V 40A Battery Charger (EN31240)
        • Enerdrive ePOWER 12V 40A DC to DC Battery Charger (EN3DC40+)
        • Enerdrive ePRO PLUS Battery Monitor  (EN55050)
        • Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch (EN1226S-X)

        SPECIFICATIONS

        Model EPL-200BT-12V-G2
        GTIN (Global Trade Item Number) 9342616019832
        Warehouse Enerdrive
        Brands Enerdrive
        Product Category Batteries
        Amp Hours (Ah) 200.0 Ah
        Battery Voltage 12V
        Float 13.50 - 13.80V
        Nominal Voltage 12.8V
        Nominal Capacity 200Ah
        Total Charge Current Max 150A @ 25°C for 30mins
        Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
        Battery Charge Temperature 0 ̴ 45°C
        Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V
        Standby (Float) Voltage 13.50 ̴ 13.80V
        Maximum Charge Current 150A @ 25°C for 30mins
        Recommended Charge Current for Maximum Life ≤ 60A
        Battery Discharge Temperature -20 ̴ 60°C
        Battery Output Voltage Range 11.00 ̴ 14.60V
        Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins
        Pulse Discharge Current 450A for 1.0s
        Discharge Cut-off Voltage ≤ 11.20V
        Dimensions 505 x 172.5 x 265 mm (L x W x H)
        Net Weight (kg) 25.0 Kg
        Manufacturers Warranty 5 Years

        Model EN31240
        Brand Enerdrive
        GTIN 9342616000250
        Product Category Battery Chargers
        Voltage 12V
        Output Current Rating (Amps) 40 Amps
        Weight 2.6 Kg
        Dimensions (L x W x H) 295 x 206x 86 mm


        Model EN3DC40+
        GTIN (Global Trade Item Number) 9342616000526
        Warehouse Enerdrive
        Brands Enerdrive
        Product Category Battery Chargers
        Product Type 12v 40Amp DC2DC Battery Charger
        Output Current Rating (Amps) 40.0 Amps
        Charger Mode Output Voltage 13.8V - 15.5V
        Float 13.0V - 13.8V
        Equalize 15.5V
        Charging Control Three Stages
        DC Output Single
        Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
        Charger Efficiency 95%
        Temperature Setting
        Low/ Normal/ High (Battery Temperature Sensor Standard)
        Output System Voltage 12V
        Dimensions 242 x 172 x 74mm (L x W x H)
        Net Weight (kg) 1.9 Kg
        Manufacturers Warranty 5 Years


        Model EN1226S-X
        GTIN (Global Trade Item Number) 9342616000335
        Warehouse Enerdrive
        Brands Enerdrive
        Product Category Power Inverters
        Wattage 2600W
        Manufacturers Warranty 5 Years
        Output Voltage and Frequency 230 Vac / 50 Hz
        Input Voltage 10.5 – 15.5 VDC
        Operating Temperature Range 0°C to 40°C
        Humidity 5-90% noncondensing
        AC Output 2600W, 11.3A
        Output wave form True Sinewave
        No Load Battery Draw < 1.5 ADC
        Under Voltage Alarm 11.0 / 12.1 VDC
        Under Voltage Alarm Recovery 11.3 / 12.3 VDC
        Under Voltage Shutdown 10.5 / 11.8 VDC
        Under Voltage Shutdown Recovery 12.0 / 12.6 VDC
        Over Voltage Shutdown 15.5 VDC
        USB Socket Output 5V, 750 mA
        Storage Range (temp) -20°C to 60°C
        Operating Altitude Up to 3000 meters above sea level
        Product Dimensions (mm) LxWxH 230 x 560 x 115 mm
        Net Weight (kg) 7.0 Kg

        NOTE:

        * Availability Subject to Individual Items.

        ** This bundle is made to order. Please give us at least 3 weeks to prepare.

        *** Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
