Description
FEATURES
Enerdrive ePOWER B-TEC 12V 200Ah Lithium Battery
- Re-designed battery case for easy serviceability.
- Battery box and straps INCLUDED - nothing more to buy!
- Product dimensions 505 x 173 x 265 mm
Smart Phone Monitoring System
The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Enerdrive ePOWER 12V 40A AC Battery Charger
- Multistage Charging
- Separate Battery Banks
- Programmable
- Current Control
- Smart Charging
- Wide AC Input Range
- LED Display
- Silent Mode
- Temperature Sensor
- 2 Year Warranty from an Australian company renowned for customer support.

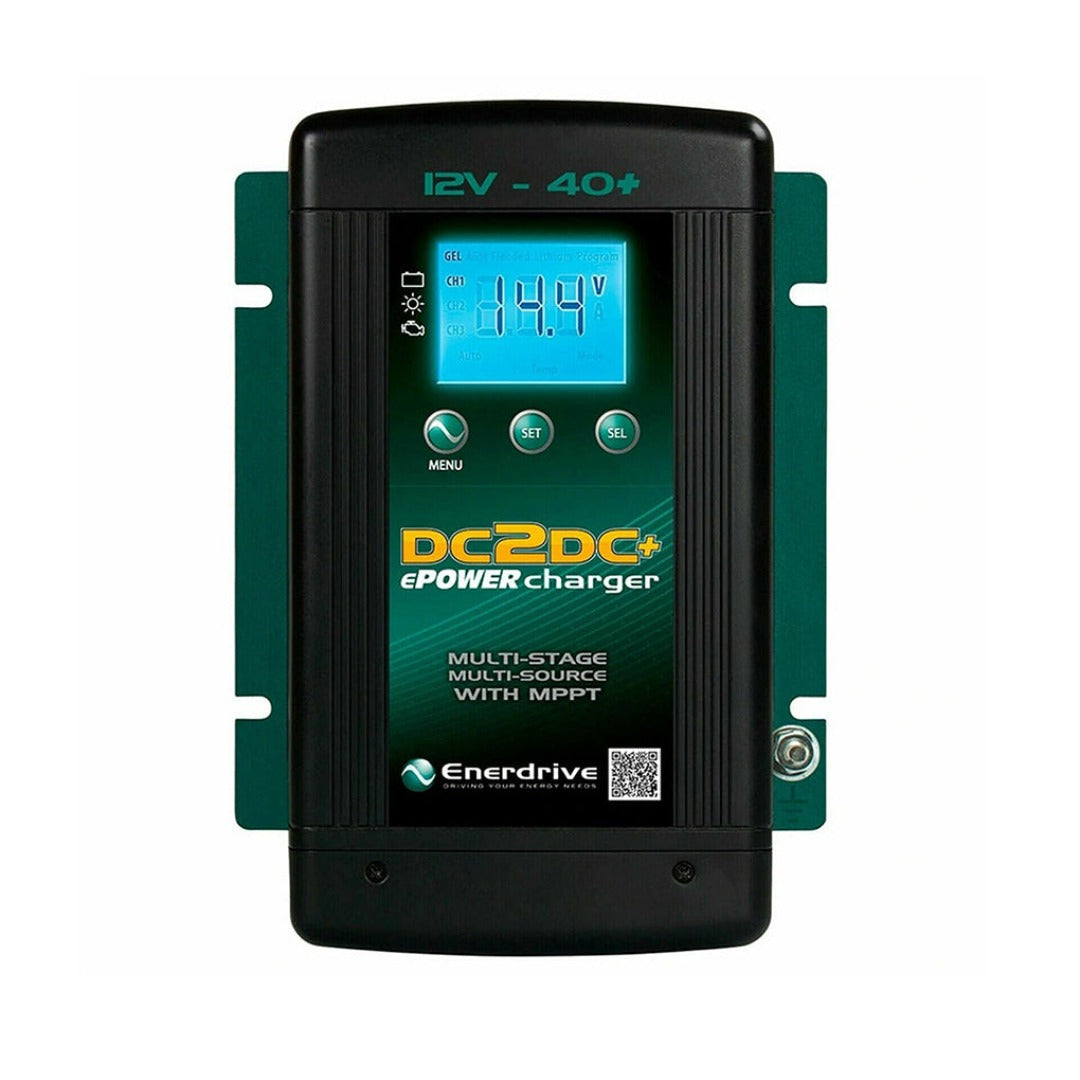

Enerdrive ePOWER 12V 40A DC To DC Battery Charger
- Two totally independent DC Inputs
- DC M6 screw terminals
- A dedicated (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display
- Temperature sensor included in the charger
Enerdrive ePRO PLUS Battery Monitor
- Complete battery status
- Supports up to three battery banks (12V, 24V and 48V)
- ‘Plug and Play’ installation
- Perfect integration with Enerdrive DC Modular products

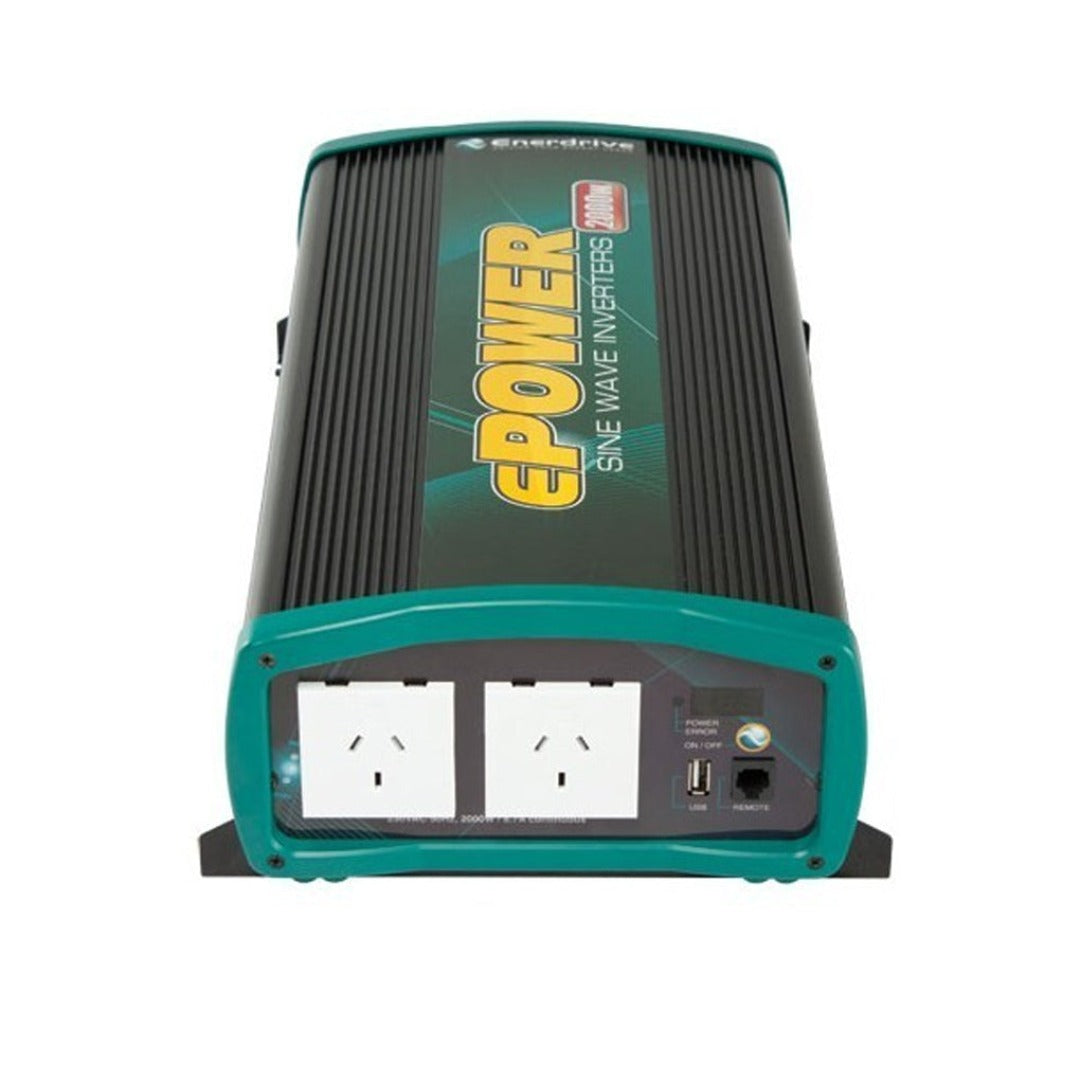

Enerdrive ePOWER 2000W Pure Sine Wave Inverter with RCD & AC Transfer Switch
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- PS6 Mode
- AC Transfer Cable
- 2 year warranty
New PS Mode:
ePOWER Enerdrive Inverters with AC Transfer Switch now include the new PS6 mode.
AC Transfer Cable Now Included as Standard:
Now included with all AC Transfer Switch. Inverters is a 4 metre AC lead with molded Male/Female IEC Plugs fitted.

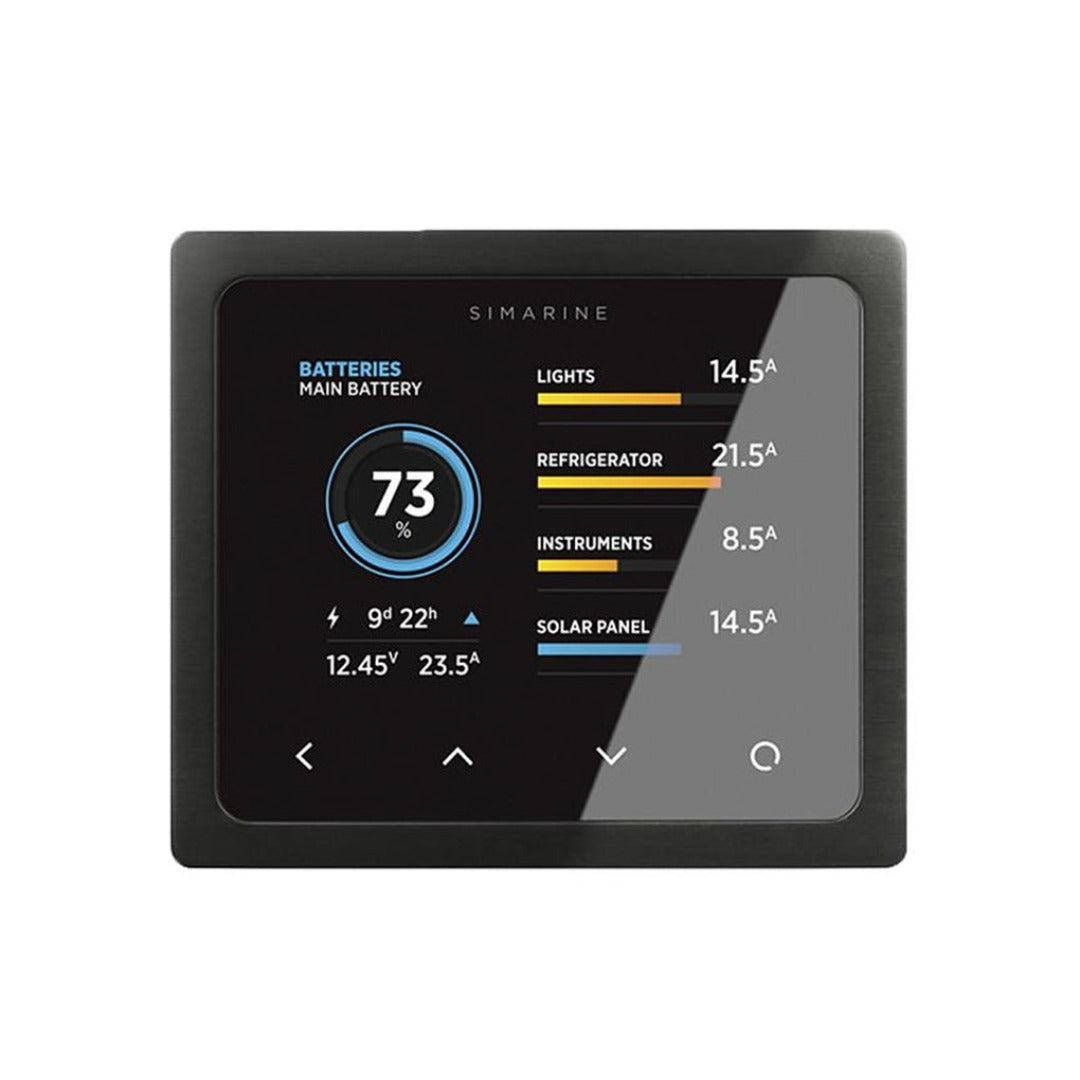

Simarine Pico+ Display Panel Mount Black
SIMARINE PICO sets new standards for marine battery and tank monitors in fields of design, functionality, connectivity and ease of use.
PICO’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display.

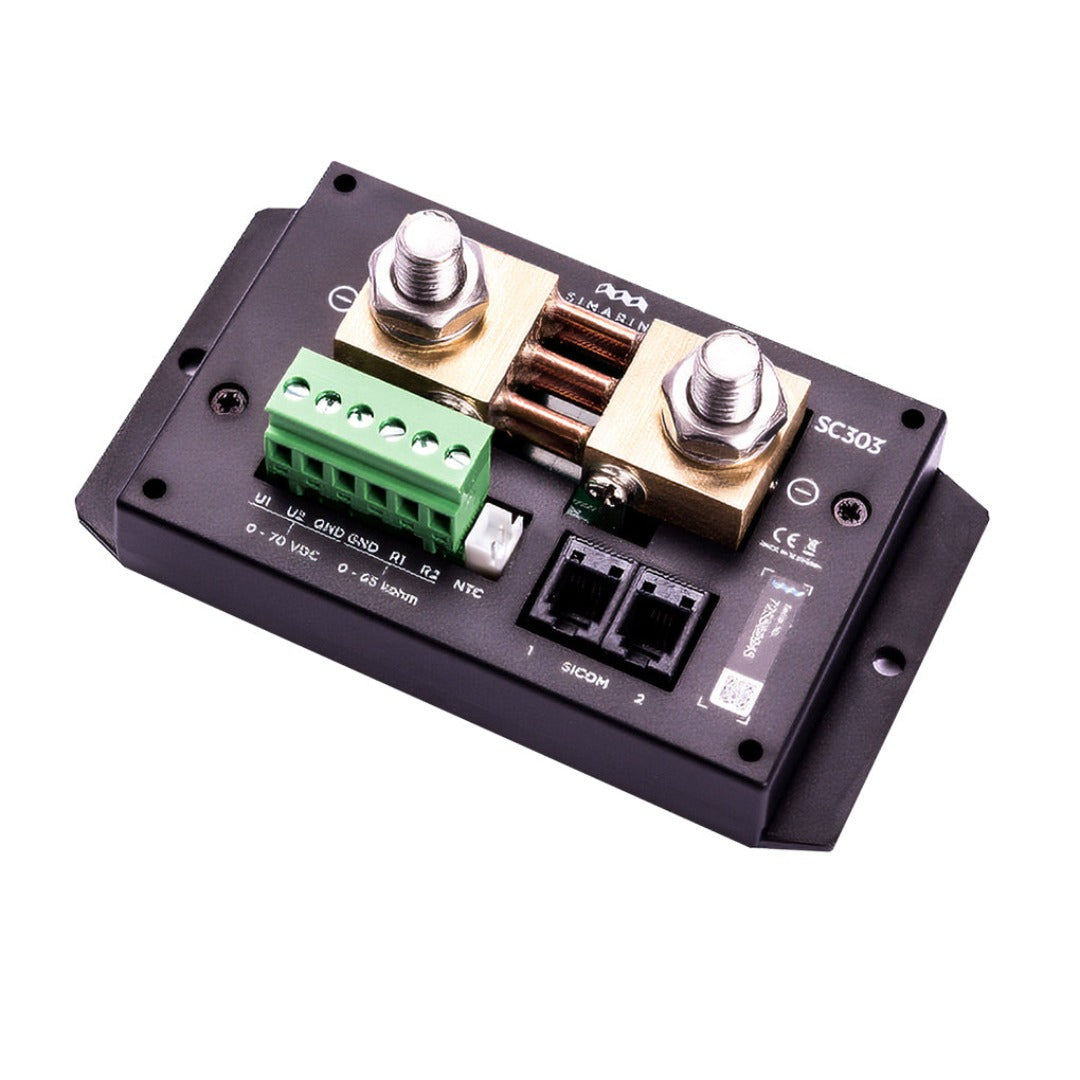

Simarine Battery Shunt 300A 2 X Volt 2 X Resist 1 X Temp
Innovative combination of Shunt and Tank/Temp level module. The SC303 & SC503 are an active combo shunt for PICO battery monitor with;
- 2 x Voltage Inputs
- 2 x Tank Level or Temperature Inputs
- 1 x Socket for Temperature Sensor with JST connector
- 1 x Current Sensor up to 300A (SC303) or 500A (SC503) for up to 75V systems.
PACKAGE INCLUDED
- Enerdrive ePOWER B-TEC 200Ah Lithium Battery EPL-200BT-12V-G2
- Enerdrive ePOWER 12V 40A Battery Charger EN31240
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
- Simarine Pico+ Display Panel Mount Black with SI-SC303 SI-PICO-3
- Simarine Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp SI-SC303
- Enerdrive ePOWER 2000W Pure Sine Wave Inverter with RCD & AC Transfer Switch EN1120S-X
SPECIFICATIONS
| Model | EPL-200BT-12V-G2 |
| GTIN (Global Trade Item Number) | 9342616019832 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Batteries |
| Amp Hours (Ah) | 200.0 Ah |
| Battery Voltage | 12V |
| Float | 13.50 - 13.80V |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Total Charge Current | Max 150A @ 25°C for 30mins |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.40 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.80V |
| Maximum Charge Current | 150A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | ≤ 60A |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge Current | 200A @ 25°C ± 5°C for 30mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤ 11.20V |
| Dimensions | 505 x 172.5 x 265 mm (L x W x H) |
| Net Weight (kg) | 25.0 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EN31240 |
| Brand | Enerdrive |
| GTIN | 9342616000250 |
| Product Category | Battery Chargers |
| Voltage | 12V |
| Output Current Rating (Amps) | 40 Amps |
| Weight | 2.6 Kg |
| Dimensions (L x W x H) | 295 x 206x 86 mm |
| Model | EN3DC40+ |
| GTIN (Global Trade Item Number) | 9342616000526 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Battery Chargers |
| Product Type | 12v 40Amp DC2DC Battery Charger |
| Output Current Rating (Amps) | 40.0 Amps |
| Charger Mode Output Voltage | 13.8V - 15.5V |
| Float | 13.0V - 13.8V |
| Equalize | 15.5V |
| Charging Control | Three Stages |
| DC Output | Single |
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
| Charger Efficiency | 95% |
| Temperature Setting |
Low/ Normal/ High (Battery Temperature Sensor Standard)
|
| Output System Voltage | 12V |
| Dimensions | 242 x 172 x 74mm (L x W x H) |
| Net Weight (kg) | 1.9 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EN1120S-X |
| GTIN (Global Trade Item Number) | 9342616000298 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Power Inverters |
| Wattage | 2000W |
| Manufacturers Warranty | 5 Years |
| Output Voltage and Frequency | 230 Vac / 50 Hz |
| Input Voltage | 12.5 VDC |
| Operating Temperature Range | 0°C to 40°C |
| Humidity | 5-90% noncondensing |
| AC Output | 2000W, 8.7A |
| Output wave form | True Sinewave |
| No Load Battery Draw | < 1.2 ADC |
| Under Voltage Alarm | 11.0 / 12.1 VDC |
| Under Voltage Alarm Recovery | 11.3 / 12.3 VDC |
| Under Voltage Shutdown | 10.5 / 11.8 VDC |
| Under Voltage Shutdown Recovery | 12.0 / 12.6 VDC |
| Over Voltage Shutdown | 15.5 VDC |
| USB Socket Output | 5V, 750 mA |
| Storage Range (temp) | -20°C to 60°C |
| Operating Altitude | Up to 3000 meters above sea level |
| Product Dimensions (mm) LxWxH | 230 x 435 x 115 mm |
| Net Weight (kg) | 5.9 Kg |
| Model | SI-PICO3 |
| Power Source Voltage Range | 6-35V |
| Temperature Range | -20 - +70°C |
| Operating, WiFi On, 100% Illumination | 90mA |
| Operating, WiFi Off, 70% Illumination | 35mA |
| Operating, WiFi Off, 0% Illumination | 18mA |
| Power Off, logger still active | 5mA |
| Current (A) | ±0.01A |
| Voltage (V) | ±0.01V |
| Amp Hours (Ah) | ±0.1Ah |
| SOC - State of Charge (0-100%) | ±0.01A |
| Temperature | ±0.1 °C/°F |
| Voltage Inputs Range | 0-75V |
| WiFi Radio Frequency Band | 2.4GHz |
| Dimension (Standalone) | 89 x 84 x 10mm |
| Dimension (Panel Mount) | 108.5 x 94 x 10mm |
| Connectivity | Up to |
| Batteries | 6 |
| Shunts | 24 |
| Temperature Sensors | 10 |
| Tank Level Sensors | 14 |
| Inclinometer Sensors | 2 |
| Smartphone Applications | 1 |
| Logger Capacity | Logger Capacity |
| Model | SI-SC303 (300A Active Shunt) |
| Voltage Range | 6-35V |
| Temperature Range | -20 - +70°C |
| Operating | 1.2mA |
| Per Channel - SC303 | 0.01 - 320A |
| Per Channel - SC503 | 0.01 - 700A |
| Accuracy | ± 0,6 % |
| Resolution | 0,01 A |
| Sampling rate | 100 ms |
| Continuous - SC303 | 300A |
| Continuous - SC503 | 500A |
| Peak current (<1 min) - SC303 | 400 A |
| Peak current (<1 min) - SC503 | 700A |
| Peak current (<5 min) - SC303 | 700 A |
| Peak current (<5 min) - SC503 | 1000A |
| Voltage drop at 300 A | 50 mV |
| Maximum Voltage on Connections | 35V |
| Range | 0-75V |
| Resolution | 1mV |
| Accuracy | ±0.2% |
| Sampling Rate | 100ms |
| Range | 0 Ohm - 65kOhm |
| Accuracy | ± 3.0% |
| Range | -15 – +80 °C |
| Accuracy (-10 – 60 °C, 14 – 140 °F) | ± 3.0% |
| Connectivity | Up to |
| Batteries | 1 |
| Temperature Sensors | 3 |
| Voltage and/or Resistance Sensors | 2 |
| SiCOM RJ9 Sockets | 2 |
| Dimensions (length x width x depth) | 120 x 120 x 60 mm |
| Battery Connection | M 10 bolts |
NOTE:
* Availability Subject to Individual Items.
** This bundle is made to order. Please give us at least 3 weeks to prepare.
*** Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
