Description
FEATURES

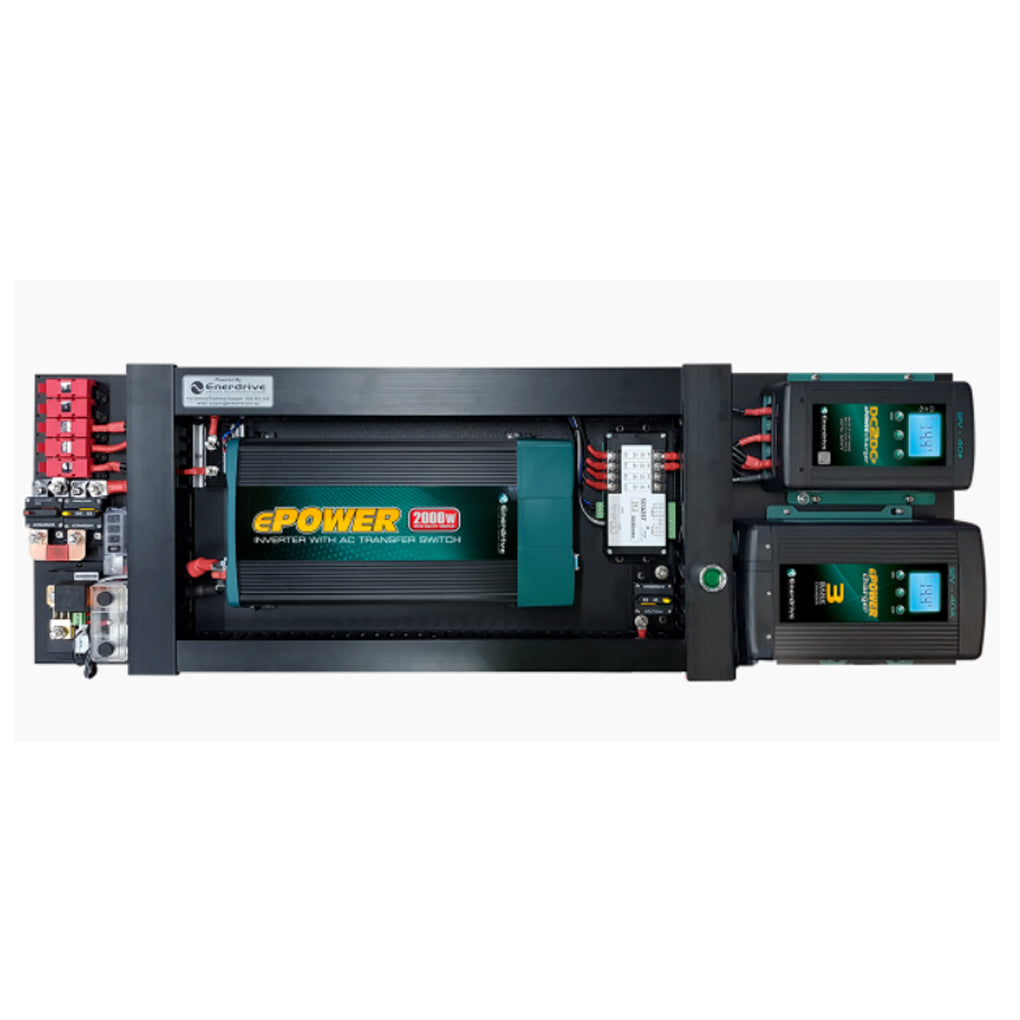

Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
Includes:
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
- Enerdrive ePOWER 12V 40A Battery Charger EN31240

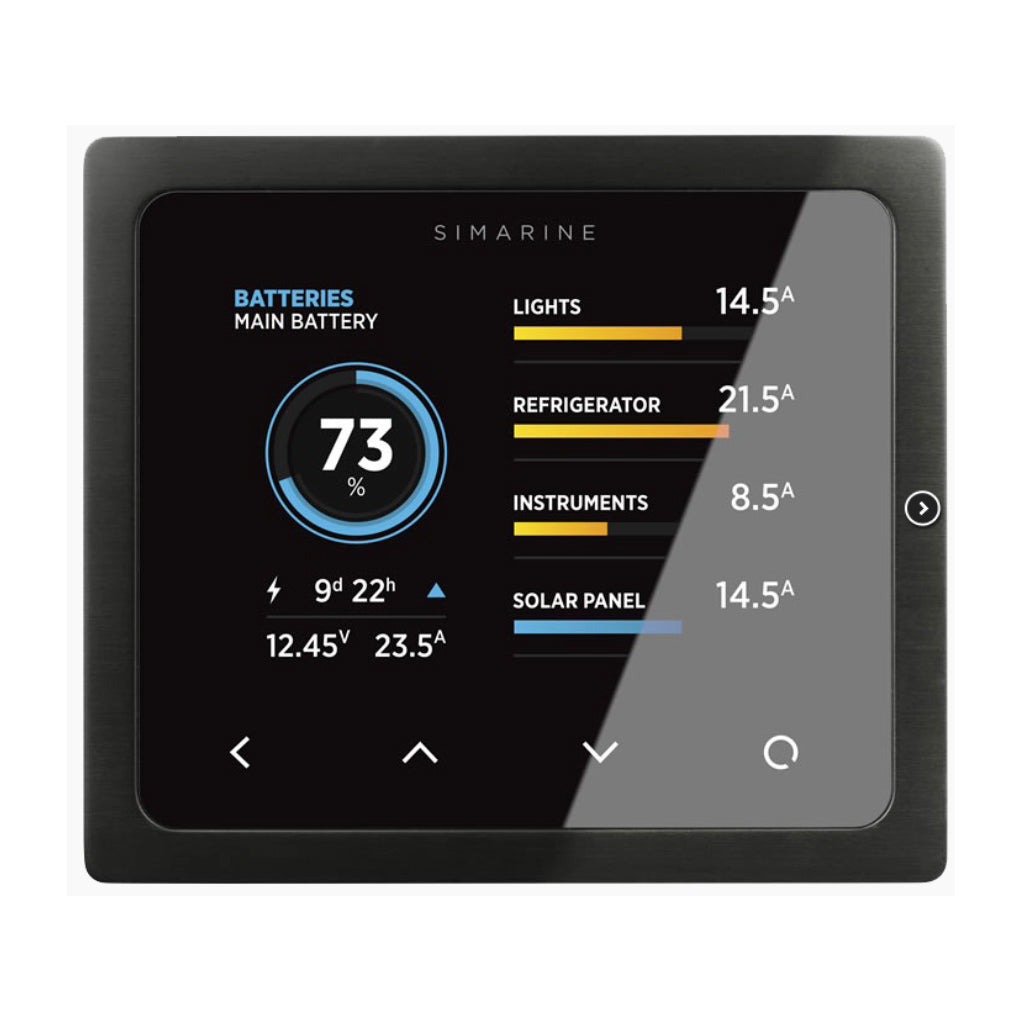

- Simarine Pico LCD WIFI Monitoring Screen
- Simarine SC301 300A Main Battery Shunt
- Simarine SCQ25T Individual Load/Charge Module
- 3 Stud Main Negative Bus Bar
- 40A Low Battery Cutout
- Main System Circuit Breaker 120A
- Inverter Circuit Breaker 200A
- Solar Input Positive Circuit Breaker 40A
- ePOWER DC2DC 60A Output Fuse Connection
- ePOWER AC Charger 50A Output Fuse Connection
- 2 x 30A Load Output Fuse Connections
- 24hr Critical Load 4 Circuit "Wedge" Fuse Block
- ePOWER 2000W AC Transfer Inverter
- Battery Restart Switch (Lithium Batteries)
- 12mm Black Plastic Mounting Board. Water & Rot Resistance
EXPERT TIP: One or two AGM Board Cable Kits are common accessories suitable for the Enerdrive eSYS-F. Thickness, length and quantity will depend on installation type. Please check cable description for details. All the accessories are available in the Accessory List above as optional extras.

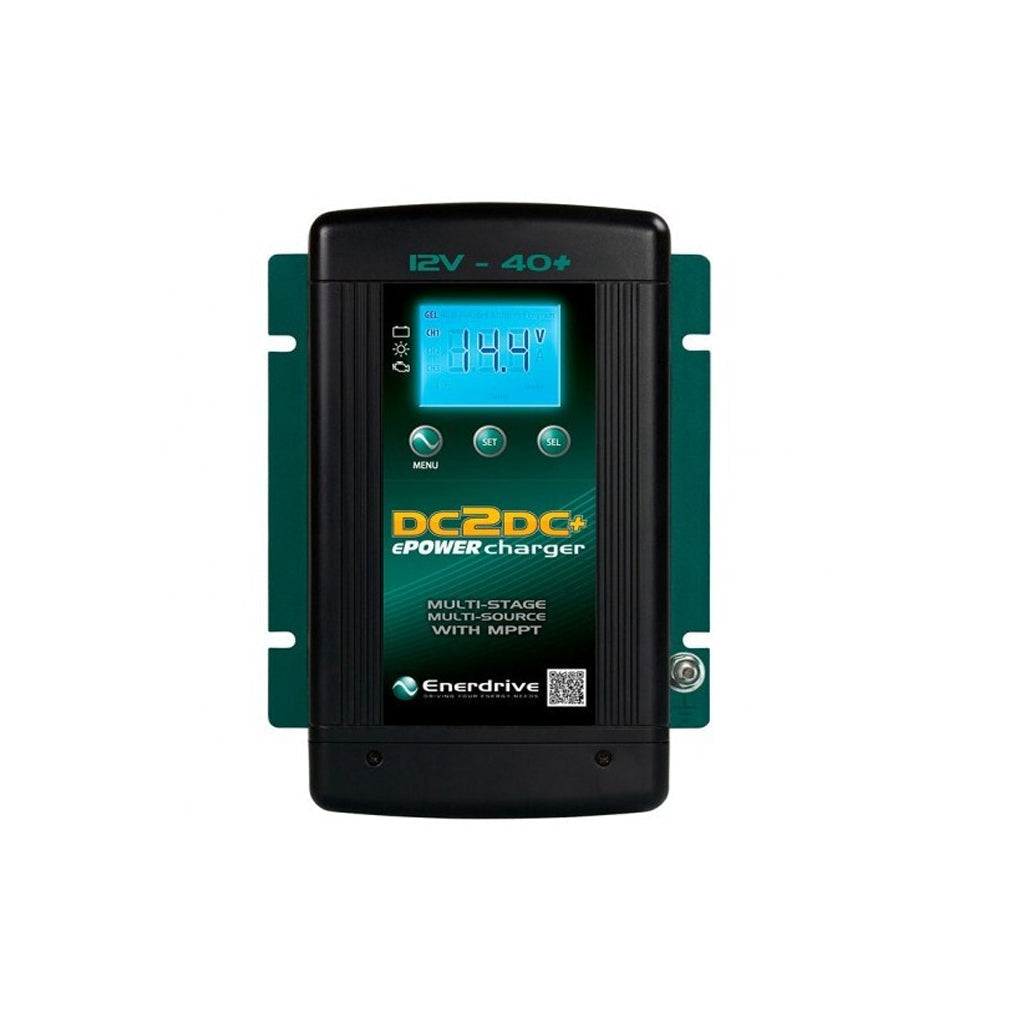

Enerdrive ePOWER 12V 40A DC to DC Battery Charger
- Independent DC Inputs for both engine and solar regulation charging one house battery bank output
- DC M6 screw terminals
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display
- Temperature sensor

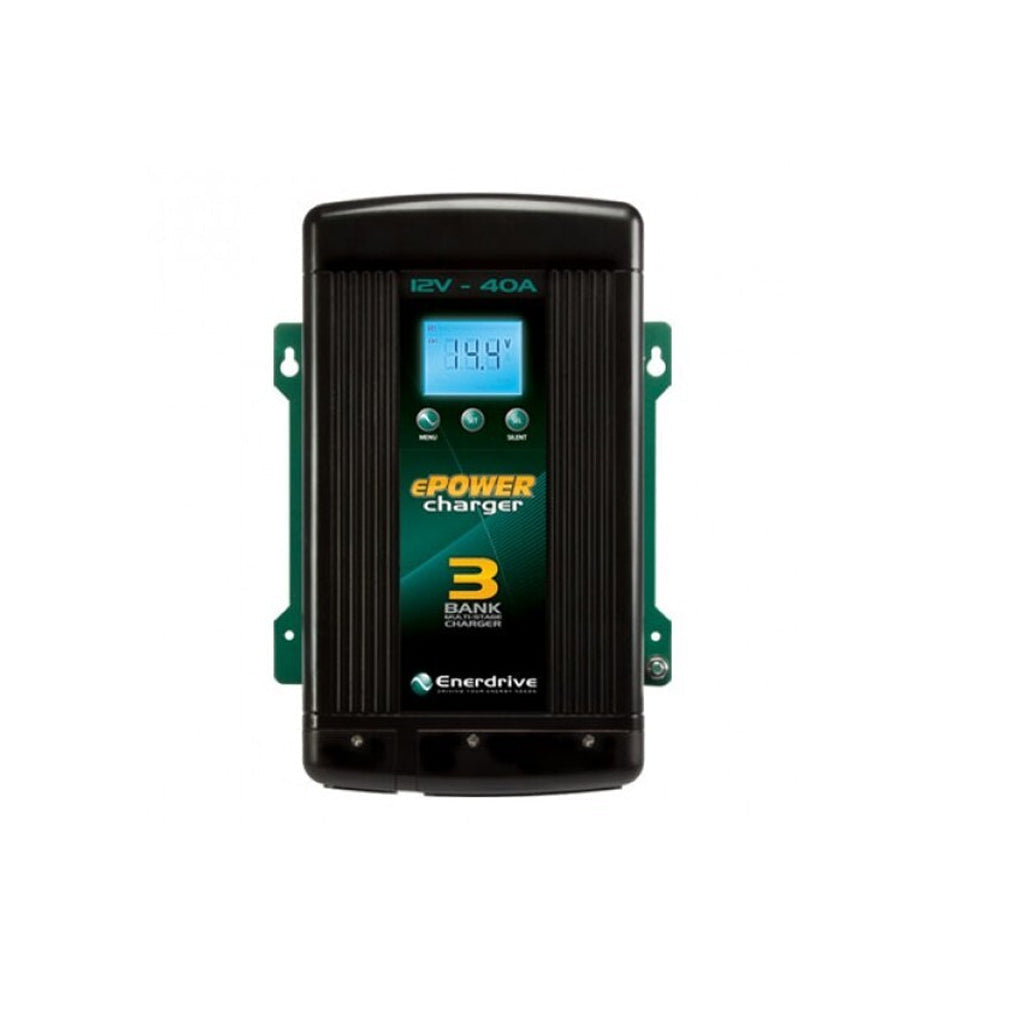

Enerdrive ePOWER 12V 40A Battery Charger
- Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
- Isolated charging design where battery bank one is separate from battery bank two and three
- Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
- Current Control
- Smart Charging
- Operates on both 110V / 60Hz and 240V / 50Hz
- LED Display
- Silent Mode
- Battery temperature sensor included with 3 meter cable
- 5 Year Warranty

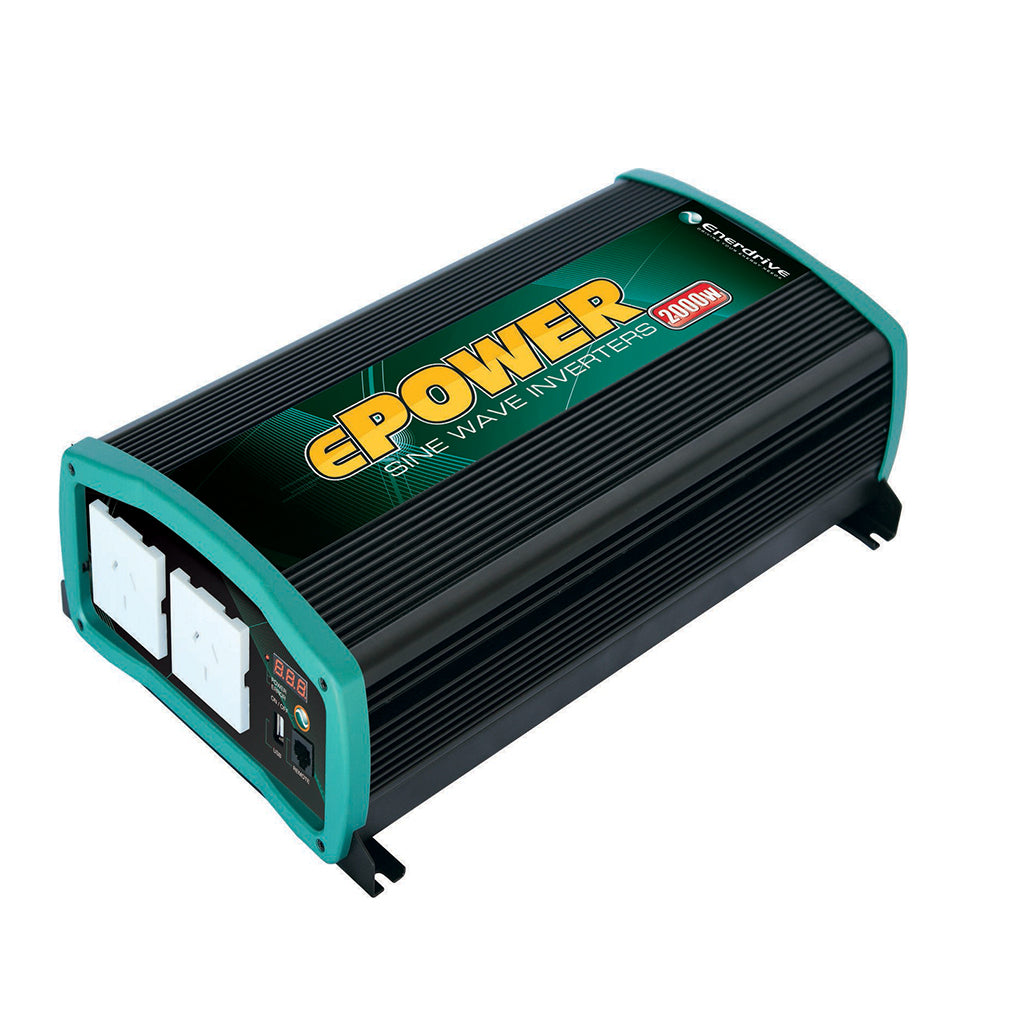

Enerdrive ePOWER 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch
The ePOWER 2000W Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board. This inverter is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation. The inverter offers reliable service for providing AC power for your home, boat, 4WD, truck or Caravan.
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- PS6 Mode
- AC Transfer Cable
- 5 Year warranty
- ePOWER Enerdrive Inverters with AC Transfer Switch now include the new PS6 mode
SPECIFICATIONS
| Model | ESYS-F |
| Charger Mode Output Voltage |
13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)
|
| Float |
13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)
|
| Equalize |
15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)
|
| Amps | 40A (DC & AC Battery Charger) |
| Charging Control |
Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging (AC Battery Charger)
|
| DC Output |
Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
|
| Operating Voltage | 6 - 35V (Battery Monitor) |
| Selectable Battery Type |
Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
|
| Standby Current | < 2 mA (AC Battery Charger) |
| AC Input Voltage | 90 to 265 VAC (AC Battery Charger) |
| AC Input Operating Range |
207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Battery Charger)
|
| AC Input Frequency Range | 47 – 63 Hz (AC Battery Charger) |
| Power consumption (DC 12V) | 700W (Full Load) (AC Battery Charger) |
| Power Factor Correction | Yes (AC Battery Charger) |
| Charger Efficiency | 95% (DC Battery Charger) | > 82% (AC Battery Charger) |
| Reverse Polarity | Yes, (with user replaceable fuse/s) (AC Battery Charger) |
| Over Charge | Yes, unit shutdown (AC Battery Charger) |
| Over Temperature Protection | Yes, unit de-rated and shutdown (AC Battery Charger) |
| Cooling |
Forced air ventilation (thermo controlled fan) (AC Battery Charger)
|
| Output Short Circuit | Yes, (with user replaceable fuse/s) (AC Battery Charger) |
| Temperature Setting |
Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
|
| Battery Temp Sensor Port |
RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
|
| LCD Display |
Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
|
| AC Input Connection | IEC with Supplied 1.2M Power Lead (AC Battery Charger) |
| DC Output Connection |
Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
|
| DC Output Ground |
Single Heavy Duty Common Ground Stud (AC Battery Charger)
|
| Storage Range (temp) | -40° to 70° C (AC Battery Charger) |
| Operating Range (temp) |
-20° to 60° C (AC Battery Charger) | 0°C to 40°C (Inverter)
|
| Humidity |
5-95%, relative humidity non-condensing (AC to DC Battery Charger) | 5-90% noncondensing (Inverter)
|
| Ingress Protection |
IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
|
| Wattage (w) | 2000W (Inverter) |
| Under Voltage Alarm | 11.0 / 12.1 VDC (Inverter) |
| Under Voltage Alarm Recovery | 11.3 / 12.3 VDC (Inverter) |
| Under Voltage Shutdown | 10.5 / 11.8 VDC (Inverter) |
| Under Voltage Shutdown Recovery | 12.0 / 12.6 VDC (Inverter) |
| Over Voltage Shutdown | 15.5 VDC (Inverter) |
| USB Socket Output | 5V, 750 mA (Inverter) |
| Regulatory Compliance |
Complies with AS/NZS 60335.2.29 Including Australian deviations.
|
| Input Voltage | 12.5 VDC (Inverter) |
| Dimensions | 1185 x 380 x 130 mm (L x W x D) |
| Weight | 23 kg |
