Description
FEATURES
Enerdrive 12V 100Ah eLITE Lithium Battery (EPL-100-12VLITE)
The new Enerdrive 12v 100Ah eLITE Lithium Battery has been designed as an “entry level” lithium battery for the customer who wants to get into the lithium market without having to spend big.
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimize each Prismatic cell within the battery during normal operation.
Size & Weight Savings
Lithium v AGM Capacities;
- 100Ah Lithium = 160Ah AGM
- 125Ah Lithium = 200Ah AGM
- 200Ah Lithium = 320Ah AGM
- 300Ah Lithium = 480Ah AGM
(Based on the standard depth of discharge for both Lithium (80%) and AGM (50%).

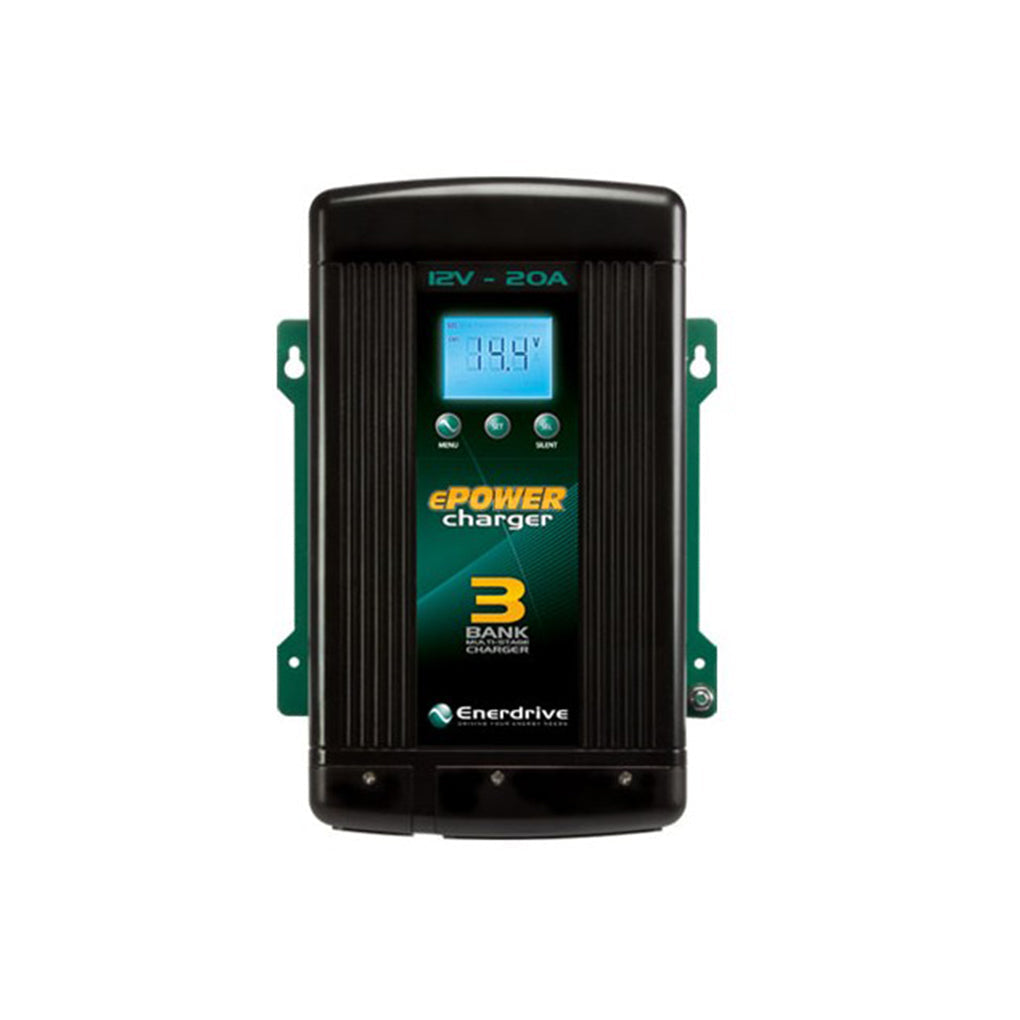

Enerdrive ePOWER 12V 20A Battery Charger (EN31220)
The Enerdrive ePOWER 20A Battery Charger is a fully automatic, “set and forget” charger.
- Multistage Charging
- Separate Battery Banks
- Programmable
- Current Control
- Smart Charging
- Wide AC Input Range
- LED Display
- Silent Mode
- Temperature Sensor: Battery temperature sensor included with 3 meter cable.
Enerdrive ePOWER 12V 40A DC to DC Battery Charger (EN3DC40+)
- Two totally independent DC Inputs
- DC M6 screw terminals
- A dedicated (MPPT) solar regulator
- The same battery algorithms as included in Enerdrives AC mains ePOWER battery charger
- 40A output up to 40+°C with thermo-controlled fan cooling
- Fully programmable LCD
- Temperature sensor

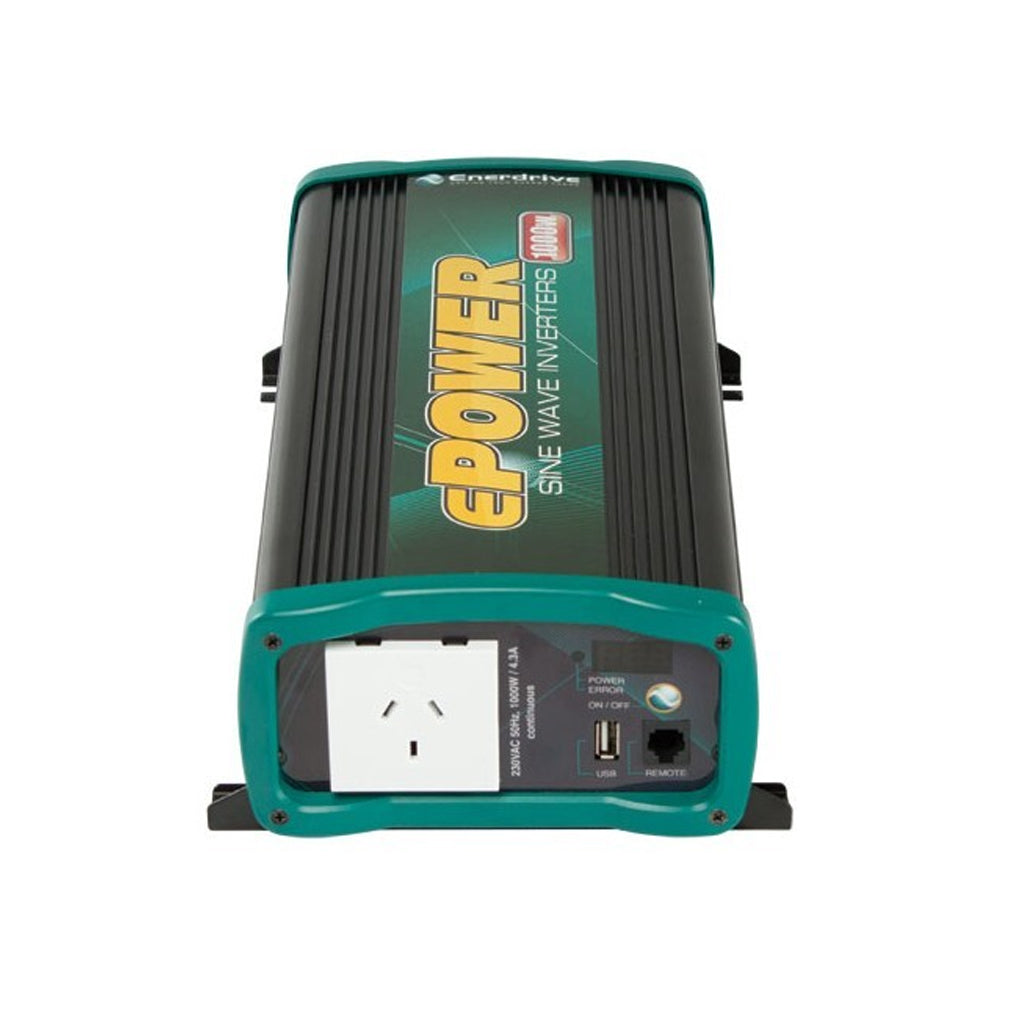

Enerdrive ePOWER Pure Sine Wave Inverter 1000W 12V with Remote (EN1110S)
With ePOWER’s state of the art, easy to use design, this 1000W inverter will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle.
- Australian GPO Outlets
- True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
- Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
- Automatic shutdown protects overload, over temperature and low/high battery conditions
- High surge capacity for products that require more power to start (2 x constant)
- High efficiency conversion of battery available power to AC power
- Mounting brackets for permanent installation
- Heavy duty DC battery stud connectors
- Includes 5V USB port
- 325mm(L) x 177(W) x 90(H)
PACKAGE INCLUDED
- 2 x Enerdrive 12V 100Ah eLITE Lithium Battery (EPL-100-12VLITE)
- 1 x Enerdrive ePOWER 12V 20A Battery Charger (EN31220)
- 1 x Enerdrive ePOWER 12V 40A DC to DC Battery Charger (EN3DC40+)
- 1 x Enerdrive ePOWER Pure Sine Wave Inverter 1000W 12V with Remote (EN1110S)
SPECIFICATIONS
| Model | EPL-100-12VLITE |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Standard Charge Specification (Lithium profile charger required) | |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.20 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.60V |
| Maximum Charge Current | 80A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | ≤33A |
| Standard Discharge Specification | |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge Current | 100A @ 25°C ± 5°C for 30mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤11.20V |
| Over-Charge Protection | |
| Over-charge Protection Per Cell | 3.90V ± 0.03V |
| Over-charge Release Per Cell | 3.60V ± 0.05V |
| Over-charge Release Method | Discharge below release voltage |
| Over-Discharge Protection | |
| Over-discharge Protection Per Cell | 2.50V ± 0.05V |
| Over-discharge Release Per Cell | 3.20V ± 0.05V |
| Over-discharge Release Method | Apply Charge/Voltage ≥12.8V |
| Battery Manual Reset Button | No |
| Over Current Protection | |
| Discharge Over Current | 110A for 30s – 450A for 1s |
| Protection Reset Time | 5s Auto Release |
| Over Current Release Method | Disconnect Load |
| Over Temperature Protection | |
| Battery Discharge Over Temperature | Protection to 65°C ± 5°C |
| Release at 50°C ± 5°C | |
| Battery Charge Over Temperature | Protection to 55°C ± 5°C |
| Release at 45°C ± 5°C | |
| Short Circuit Protection | Auto release after 5s |
| Mechanical Characteristics | |
| Dimensions | Length 310mm |
| Designed to be mounted in the upright position | Width 170mm |
| Height 225mm | |
| Weight | Approx 12kg |
| Storage Information | |
| Temperature & Humidity Range | ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH |
| ≥ 30 days -10°C ̴ 30°C, 45 ̴ 75% RH | |
| Self-discharge Rate | ≤ 3% Per Month |
| Model | EN31220 |
| GTIN (Global Trade Item Number) | 9342616000243 |
| Brands | Enerdrive |
| Product Type | 12v 20Amp Battery Charger |
| Output Current Rating (Amps) | 20.0 Amps |
| Charger Mode Output Voltage | 14.2 – 15.5 V |
| Float | 13.4 – 13.8 V |
| Equalize | 16.0 V |
| DC Output |
Three (1 fully independent, 2 common with diode isolation)
|
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
| Standby Current | < 2 mA |
| AC Input Voltage | 90 to 265 VAC |
| AC Input Operating Range |
207-265 Vac (2.0 A Max)90-125 Vac (3.8 A Max)
|
| AC Input Frequency Range | 47 – 63 Hz |
| Power consumption (DC 12V) | 350W (Full Load) |
| Charger Efficiency | > 82% |
| Output System Voltage | 12V |
| Dimensions | 295 x 206x 86 mm (L x W x H) |
| Net Weight (kg) | 2.4 Kg |
| Model | EN3DC40+ |
| GTIN (Global Trade Item Number) | 9342616000526 |
| Brands | Enerdrive |
| Product Category | Battery Chargers |
| Product Type | 12v 40Amp DC2DC Battery Charger |
| Output Current Rating (Amps) | 40.0 Amps |
| Charger Mode Output Voltage | 13.8V - 15.5V |
| Float | 13.0V - 13.8V |
| Equalize | 15.5V |
| Charging Control | Three Stages |
| DC Output | Single |
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
| Charger Efficiency | 95% |
| Temperature Setting |
Low/ Normal/ High (Battery Temperature Sensor Standard)
|
| Output System Voltage | 12V |
| Dimensions | 242 x 172 x 74mm (L x W x H) |
| Net Weight (kg) | 1.9 Kg |
| Model | EN1110S |
| Brand | Enerdrive |
| GTIN | 9342616000175 |
| Product Category | Power Inverters |
| Voltage | 12V |
| Wattage | 1000W |
| Peak Power | 2000W |
| Dimensions | 177 x 90 x 325 mm (W x H x D) |
| Weight | 2.9 Kg |
NOTE:
* Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
