Enerdrive 100Ah 12V eLITE Lithium Battery w/ 40A AC Charger & 40A DC2DC Charger (K-100-08)


Price:
Sale price$2,347.00

Description

FEATURES

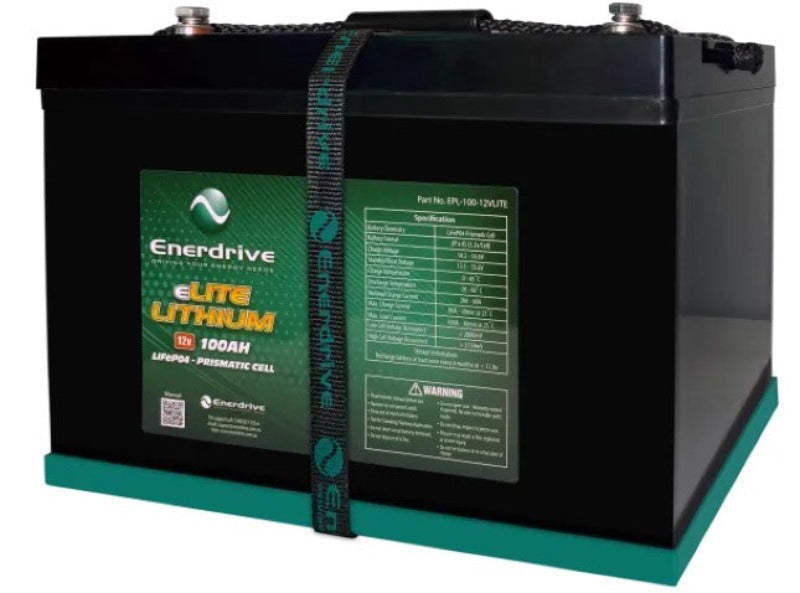

Enerdrive 12V 100Ah eLITE Lithium Battery

The new Enerdrive  12v 100Ah eLITE Lithium Battery has been designed as an “entry-level” lithium battery for the customer who wants to get into the lithium market without having to spend big. This unit is a stripped-back version of the ever-popular 100Ah B-TEC Lithium battery but, without all the bells and whistles.

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from overcharge, over-discharge, over temperature & short circuit.

Size & Weight Savings

Lithium v AGM Capacities;

  • 100Ah Lithium = 160Ah AGM
  • 125Ah Lithium = 200Ah AGM
  • 200Ah Lithium = 320Ah AGM
  • 300Ah Lithium = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

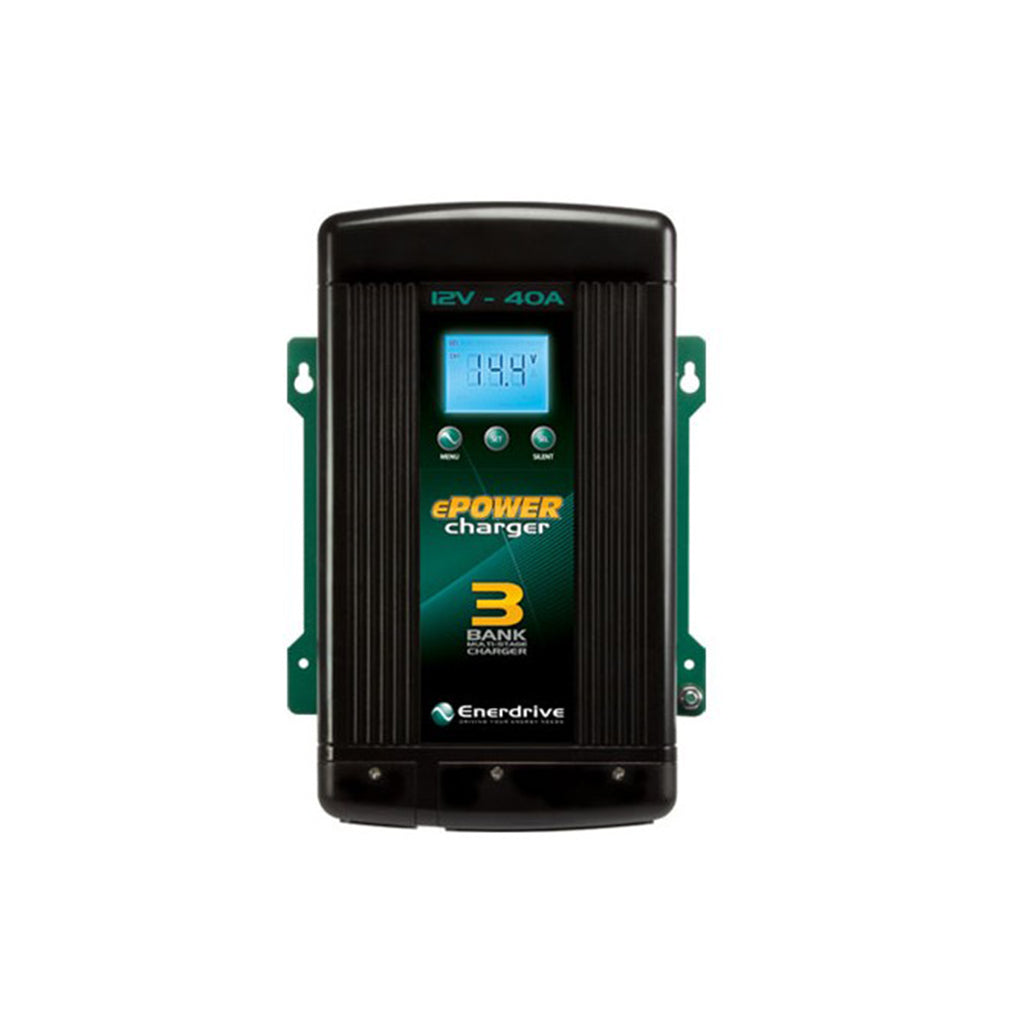

Enerdrive ePOWER 40A/12V Smart Charger - Three Output

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximize service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

  • Multistage Charging:
  • Separate Battery Banks:
  • Programmable
  • Current Control
  • Smart Charging
  • Wide AC Input Range
  • LED Display
  • Silent Mode
  • Temperature Sensor
  • 2 Year Warranty from an Australian company renowned for customer support.

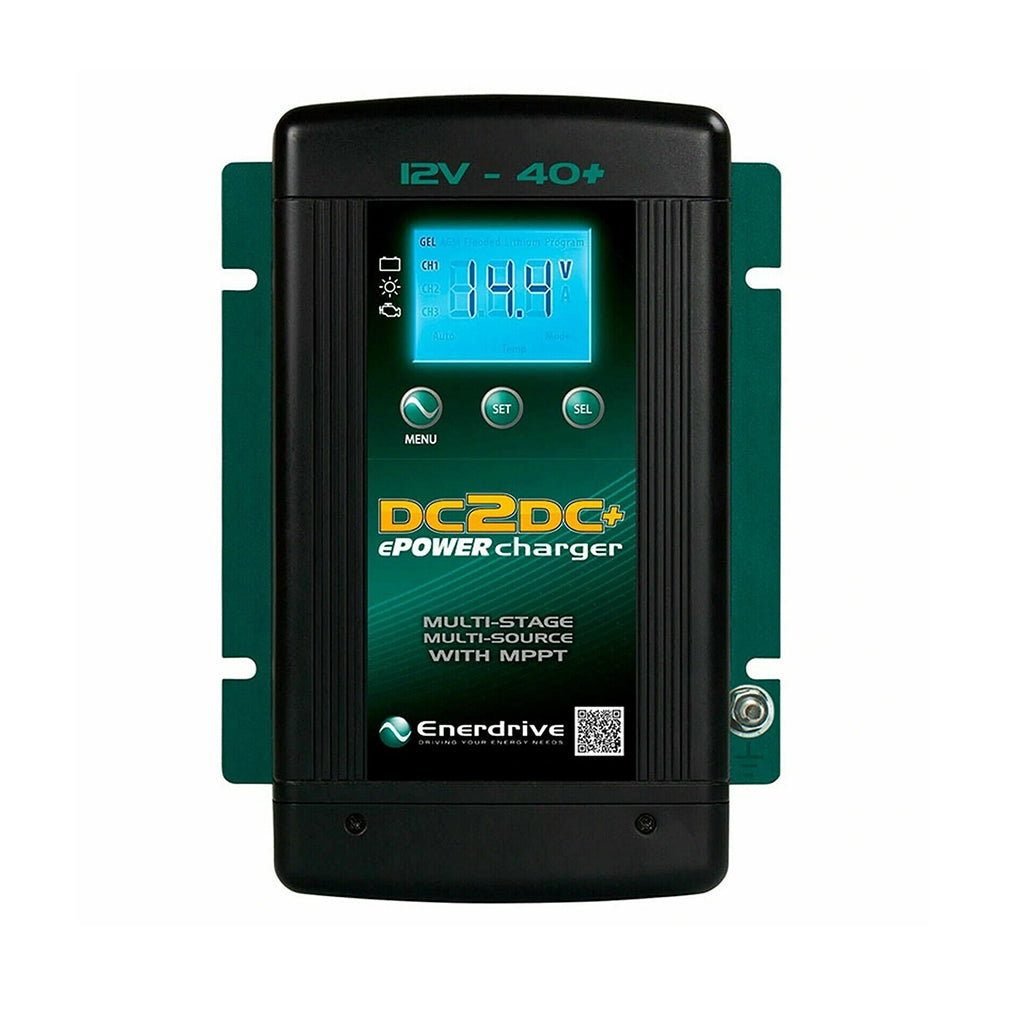

    Enerdrive ePOWER 12V 40A DC to DC Battery Charger

    • Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
    • DC M6 screw terminals that will allow for large battery cable connection between all sources
    • A dedicated Maximum Power Point (MPPT) solar regulator
    • The same battery algorithms as included in Enerdrives AC mains ePOWER battery charger including a specific lithium charging profile
    • 40A output up to 40+°C with thermo controlled fan cooling
    • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
    • Temperature sensor included in charger for more accurate battery charging

    PACKAGE INCLUDED

    • Enerdrive 12V 100Ah eLITE Lithium Battery EPL-100-12VLITE
    • Enerdrive ePOWER 40A/12V Smart Charger - Three Output EN31240
    • Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+

      SPECIFICATIONS

      Model EPL-100-12VLITE
      Nominal Voltage 12.8V
      Nominal Capacity 100Ah
      Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
      Standard Charge Specification (Lithium profile charger required)
      Battery Charge Temperature 0 ̴ 45°C
      Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
      Standby (Float) Voltage 13.50 ̴ 13.60V
      Maximum Charge Current 80A @ 25°C for 30mins
      Recommended Charge Current for Maximum Life ≤33A
      Standard Discharge Specification
      Battery Discharge Temperature -20 ̴ 60°C
      Battery Output Voltage Range 11.00 ̴ 14.60V
      Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins
      Pulse Discharge Current 450A for 1.0s
      Discharge Cut-off Voltage ≤11.20V
      Over-Charge Protection
      Over-charge Protection Per Cell 3.90V ± 0.03V
      Over-charge Release Per Cell 3.60V ± 0.05V
      Over-charge Release Method Discharge below release voltage
      Over-Discharge Protection
      Over-discharge Protection Per Cell 2.50V ± 0.05V
      Over-discharge Release Per Cell 3.20V ± 0.05V
      Over-discharge Release Method Apply Charge/Voltage ≥12.8V
      Battery Manual Reset Button No
      Over Current Protection
      Discharge Over Current 110A for 30s – 450A for 1s
      Protection Reset Time 5s Auto Release
      Over Current Release Method Disconnect Load
      Over Temperature Protection
      Battery Discharge Over Temperature Protection to 65°C ± 5°C
      Release at 50°C ± 5°C
      Battery Charge Over Temperature Protection to 55°C ± 5°C
      Release at 45°C ± 5°C
      Short Circuit Protection Auto release after 5s
      Mechanical Characteristics
      Dimensions Length 310mm
      Designed to be mounted in the upright position Width 170mm
      Height 225mm
      Weight Approx 12kg
      Storage Information
      Temperature & Humidity Range ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH
      ≥ 30 days -10°C ̴ 30°C, 45 ̴ 75% RH
      Self-discharge Rate ≤ 3% Per Month

      Model EN3DC40+
      GTIN (Global Trade Item Number) 9342616000526
      Brands Enerdrive
      Product Category Battery Chargers
      Product Type 12v 40Amp DC2DC Battery Charger
      Output Current Rating (Amps) 40.0 Amps
      Charger Mode Output Voltage 13.8V - 15.5V
      Float 13.0V - 13.8V
      Equalize 15.5V
      Charging Control Three Stages
      DC Output Single
      Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
      Charger Efficiency 95%
      Temperature Setting
      Low/ Normal/ High (Battery Temperature Sensor Standard)
      Output System Voltage 12V
      Dimensions 242 x 172 x 74mm (L x W x H)
      Net Weight (kg) 1.9 Kg

      NOTE:

      * Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
