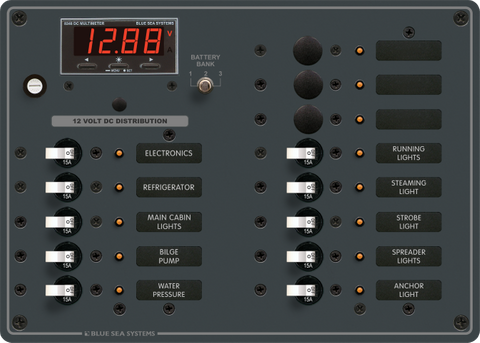

Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)
Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)
Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)
Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)
Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)
Roll over image to zoom in Click on image to zoom
Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)

Blue Sea Systems Panel DC -13 Position 15A M/Func Meter (BS-8403B)

Blue Sea Systems
Price:
$1,647.00

Description

FEATURES

  • All positive, negative and grounding buses installed, fully pre-wired
  • Panels with meters include toggle switch for mounting up to 3 battery banks
  • All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions

SPECIFICATIONS

Positions 13
Nominal Voltage 12V DC
24V DC
Maximum Amperage  100A per bus
Height 7.50in (190.5 mm)
Width 10.50in (266.7 mm)
Depth 4.00in (101.6 mm)
Weight 5.15lb (2.34 kg)
