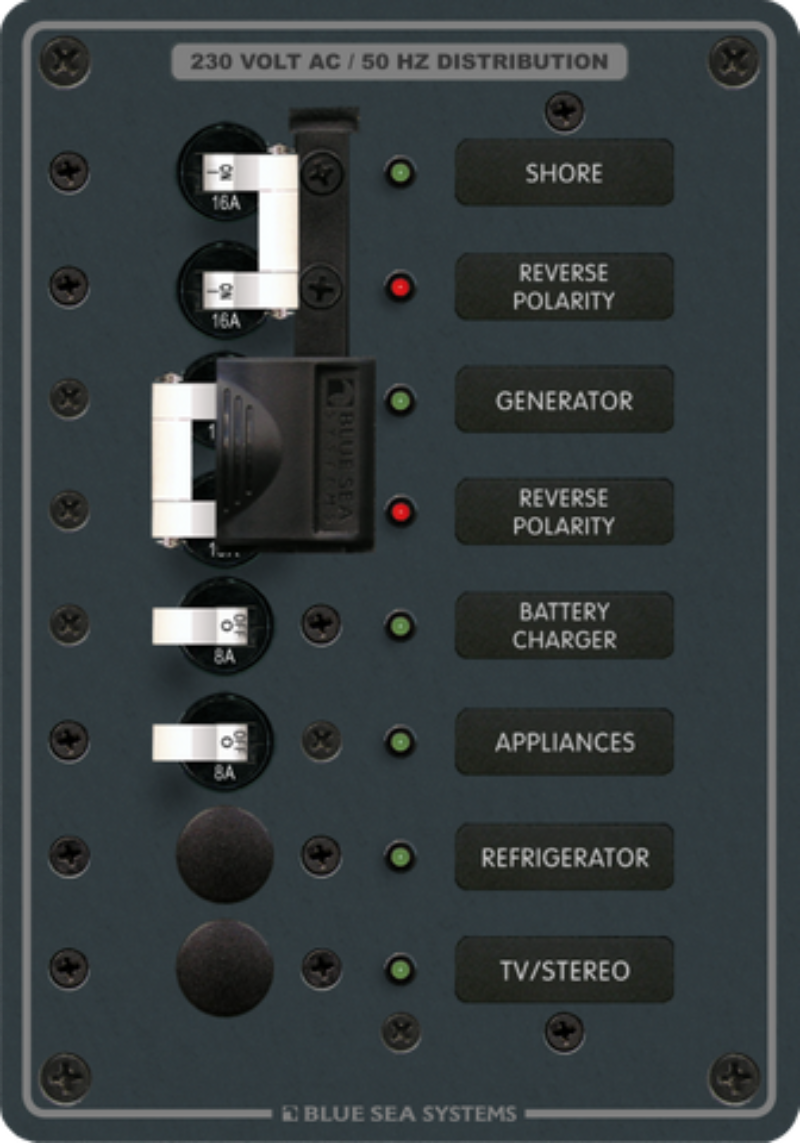

Blue Sea Systems Panel 230VAC 2 x 16A + 4 Position 8A BS-8567B


Price:
Sale price$712.00

Description

FEATURES

  • Double pole AC main circuit breakers with installed lockout slide
  • Prevents connecting both AC sources simultaneously
  • Red reverse polarity indicating LED
  • All hot, neutral and safety ground buses installed, fully pre-wired
  • All circuit label positions are backlit on standard panels - No kit is required
  • "ON" indicating LEDs installed in all circuit positions

SPECIFICATIONS

Positions 4
Source Selection 2
Nominal Voltage 230V AC
Height 7.50in (190.5 mm)
Width 5.25in (133.35 mm)
Weight 1.90lb (0.86 kg)
