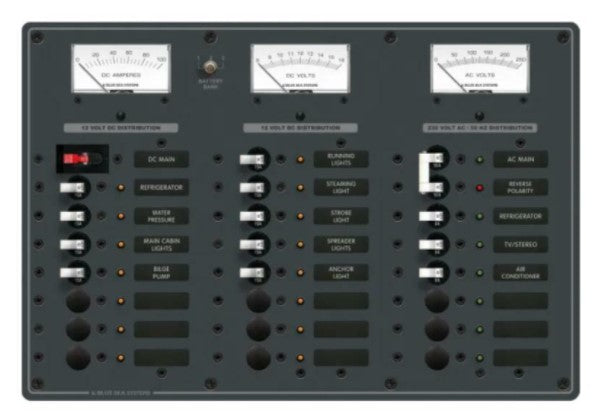

Blue Sea Systems Panel 230V/12V 6 x AC + 15 x DC (BS-8184B)


Price:
Sale price$1,906.00

Description

FEATURES

  • ON indicating LEDs installed in all circuit positions
  • Backlit label positions
  • Includes toggle switch to monitor voltage on up to three batteries
  • Circuit identification label sets included
  • Insulating covers are included with AC/DC 360 Panels

SPECIFICATIONS

PART NUMBER BS-8184B
STYLE Traditional Metal
TOTAL AC POSITIONS Main + 6 positions
TOTAL DC POSITIONS Main + 15 positions
AC CIRCUIT BREAKERS Main, 16A, 3 Branch, 8A
DC CIRCUIT BREAKERS Main, 100A, 9 Branch, 15A
AC/DC VOLTAGE 230V AC/12V DC
ACTUATOR STYLE White Toggle
AC METERS 0-250V AC
DC METERS 8-16V DC, 0-100A DC
W X H X D 374.65mm x 254mm x 76.2mm
