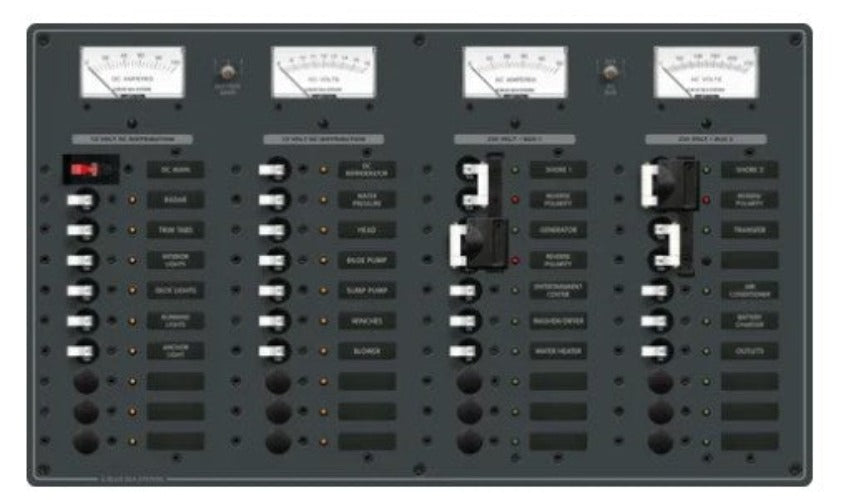

AC/DC Combination Circuit Breaker Panel - 12 x AC + 19 x DC
Combines AC and DC switching, circuit protection, source selection and monitoring into a single panel
FEATURES
- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
SPECIFICATIONS
| PART NUMBER | BS-8186B |
| STYLE | Traditional Metal |
| TOTAL AC POSITIONS | 3 Sources + 12 positions + Transfer |
| TOTAL DC POSITIONS | Main + 19 positions |
| AC CIRCUIT BREAKERS | 2 Main, 16A, 1 Main, 32A |
| 1 Transfer, 16A, 6 Branch, 8A | |
| DC CIRCUIT BREAKERS | Main, 100A, 13 Branch, 15A |
| AC/DC VOLTAGE | 230V AC/12V DC |
| ACTUATOR STYLE | White Toggle |
| AC METERS | 0-250V, 0-50V |
| DC METERS | 8-16V DC, 0-100A DC |
| W X H X D | 495.3mm x 292.10mm x 76.2mm |
