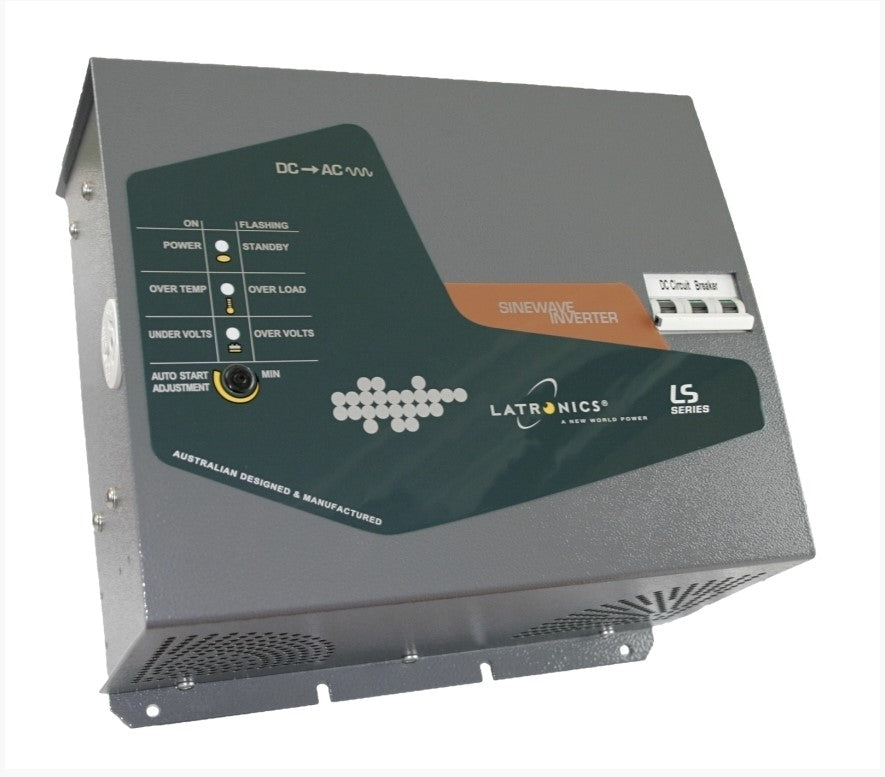

Latronics LS Inverter 12V 1000W LS1012


Inverter: Junction Box
Price:
Sale price$1,534.00

Description

**Please Note: Effective from April 2020**

(a) All Medium sized Latronics Inverters (1000W-1800W) come with an option of Junction Box or GPO.
(b) All Small sized Latronics Inverters (500W-600W) come with the standard GPO.
(c) All Large/X-Large Latronics Inverters (2000W-8000W) come with the standard Junction Box.

The Latronics LS Series Stand-alone inverters are powerful, reliable and utilize advanced microprocessor algorithms to ensure your power conversion is pure and stable.

FEATURES

Wall Mounted Design

A wall mount design allows flexibility and ease of installation.

A true sinewave output with excellent surge power capacity enables the operation of demanding appliances, such as fridges, microwaves, washing machines, and pumps.

Pure Sinewave Waveform

Pure sinewave output provides the ideal power source for modern electronics.

Robust design that protects itself against AC shorts.

Latronics LS Series Stand-alone inverters are backed by our manufacturer’s warranty: two years for 500W-1800W models and three years for 2000W-7000W models.

Sophisticated circuitry provides protection against overload, short circuit, over temperature and battery low voltage shutdowns.

Fully selectable between 50/60Hz via a set of internal dip switches for international use. Auto-start circuitry automatically switches the inverter ON and OFF with applied appliances. The auto-start is an important feature as it maximizes valuable battery capacity. Sensitivity of the auto-start can be easily adjusted to either start small appliances or run continuously.

Latronics LS Series inverters are a quality industrial product customizable to withstand vibration and constant movement in mobile or marine installations, as well as the diverse range of home or commercial applications.

Latronics LS Series inverters are built for extreme environments using a recyclable powder-coated aluminum casing.

High-Efficiency Toroidal Transformer

Toroidal transformers provide outstanding efficiency and durability.

When sized correctly, our high surge rating allows easy starting of motors and high inrush current devices.

DC Circuit Breaker / Battery Isolator Switch

DC Circuit Breaker protects the inverter and cables from becoming a potential fire hazard under fault conditions, as well as provides isolation from your batteries while switched OFF.

The circuit breaker is designed for ease of operation and safety. If the Inverter shuts down due to Overload, Undervolts or Overvolts it can be reset. Full 3500V AC/DC isolation.

High quality, high current, heavy duty DC leads for low loss power delivery.

Simple at-a-glance LED lights keep the user informed of its status at all times.

A large range of options from custom voltages and alarm contacts to vibration proofing and conformal coatings are available.

SPECIFICATIONS

INVERTER MODEL LS1012
Nominal DC Voltage 12V
Continuous Power 1000W
1/2 Hour Rating 1150W
Surge Rating (5secs) 3000W
Input Voltage Range 10.5-17V
Standby Current 37mA
Inverter ON-no load 0.45A
Peak Efficiency 91%
Weight 11Kg
Dimensions 330mm(L) x 296mm (W) x 150mm (H)
Output Voltage 230Vac+/-4%
Output Frequency 50Hz=/-0.1%
Output Waveform True Sinewave
THD <4%
Power Factor All Conditions
Autostart Sensitivity 0-20 W adjustable
Operating Temperature -10° C to +50° C
DC to AC Isolation 3500 V
Protection Circuitry Overtemperature, Overload/Short Circuit, Battery Undervolatge/Overvoltage
Battery Leads 1.5m Long with 10mm Mounting Lugs
AC Output Wiring Single Power Outlet or Junction Box
Chassis Powder Coated 3mm Aluminium
Warranty 2 Years Parts and Labour
Standards As2279,AS300,AS3100,EN55014, & C-TICK


WARRANTY

Latronics LS Series Stand-alone inverters are backed by our manufacturer’s warranty: two years for 500W-1800W models and three years for 2000W-7000W models.
